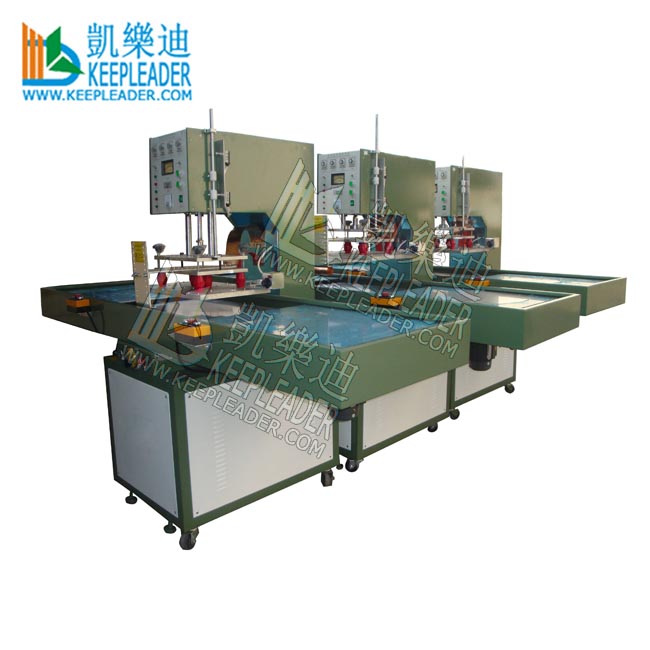

PVC吸塑壳封口高周波熔接机

Mainly application High frequency blister packaging for double-sides, welding of inflatable toy, raincoat, and any PVC, or PVC contained 30% up Character Using high Q oscillation value is installed in this machine which is stable and reliable in output. High sensitive spark depressing circuit is used for preventing mould damage. The rotating-plate, pusher-tray structure can improve the production effectively. The cylinder propping positioning gadget can make precise positioning of turntable. It is made of a whole set high quality imported components Technique specifications Model KLR-5000S/A/ET KLR-8000S/A/ET KLR-10KWT KLR-15KWT Power 5000W 8000W 10KW 15KW Voltage 220V/380V 50/60HZ Frequency 27.12MHZ 13.56MHZ Input power 8KVA 15KVA 18KVA 25KVA Rectifier SILICON DIODE Oscillation tube 7T85RB 7T69RB E3069 8T85RB Max pressure 350kg 500kg 800kg 1000kg Electrodes Gap 160 up to 200MM active horn 175MM 200MM 150MM upper electrode 200*350 400*600 500*700 600*900 lower electrode 400*600 600*800 600*800 600*900 Range of temperature 30 up to 200 Adjustable Welding time 0 up to 10S Adjustable Productivity Equal or less 4000times per 8h Net weight 280kg 330kg 360kg 500kg Overall dimension 1000*660*730 1000*720*1860 1000*720*1860 2500*2100*2000 Standard equipment: Name Origin Brand Air driven components Taiwan Airtac AC contactor Korean LG Relay Japan Omron Electron Tube Japan Toshiba Time controller Taiwan CKC MFR: KEEPLEADER™ have modified and designed model for our customers’ unique and special requirements, please contact KEEPLEADER™ for updated details

机器描述

机器应用

Mainly application High frequency blister packaging for double-sides, welding of inflatable toy, raincoat, and any PVC, or PVC contained 30% up Character Using high Q oscillation value is installed in this machine which is stable and reliable in output. High sensitive spark depressing circuit is used for preventing mould damage. The rotating-plate, pusher-tray structure can improve the production effectively. The cylinder propping positioning gadget can make precise positioning of turntable. It is made of a whole set high quality imported components Technique specifications Model KLR-5000S/A/ET KLR-8000S/A/ET KLR-10KWT KLR-15KWT Power 5000W 8000W 10KW 15KW Voltage 220V/380V 50/60HZ Frequency 27.12MHZ 13.56MHZ Input power 8KVA 15KVA 18KVA 25KVA Rectifier SILICON DIODE Oscillation tube 7T85RB 7T69RB E3069 8T85RB Max pressure 350kg 500kg 800kg 1000kg Electrodes Gap 160 up to 200MM active horn 175MM 200MM 150MM upper electrode 200*350 400*600 500*700 600*900 lower electrode 400*600 600*800 600*800 600*900 Range of temperature 30 up to 200 Adjustable Welding time 0 up to 10S Adjustable Productivity Equal or less 4000times per 8h Net weight 280kg 330kg 360kg 500kg Overall dimension 1000*660*730 1000*720*1860 1000*720*1860 2500*2100*2000 Standard equipment: Name Origin Brand Air driven components Taiwan Airtac AC contactor Korean LG Relay Japan Omron Electron Tube Japan Toshiba Time controller Taiwan CKC MFR: KEEPLEADER™ have modified and designed model for our customers’ unique and special requirements, please contact KEEPLEADER™ for updated details
