Immersion Transducers Plate Ultrasonic Cleaner of Industrial Cleaning Underwater Washing Vibrating Pack Input Ultrasound Cleaner

Immersion Transducers Plate Ultrasonic Cleaner

Immersion Transducers Plate Ultrasonic Cleaner is hermetically sealed stainless steel enclosure, which contains a number of transducer elements, these transducers offer the major advantage of versatility in system design, the custom cleaning tank can be nearly any size that is appropriate to the application, and the transducers can be mounted so that the ultrasonic energy is directed and concentrated where it is needed most, in many cases, the users already have an existed tank, which wish to convert into an ultrasonic aqueous cleaning, or solvent cleaning system

Product description

MFR: KEEPLEADER™ have modified and designed Immersion Transducers Plate Ultrasonic Cleaner for our customers’ unique and special requirements, please contact KEEPLEADER™ for updated details

Company overview

Immersion Transducers Plate Ultrasonic Cleaner has wide board of applications with salient advantages in elements of #1: drop in ultrasonic vibrators plate to existing manufacturing process lines, such as aqueous cleaning lines, passivation, plating line, or other part finishing process which require microscopic surface scrubbing agitation #2:the heavy duty design of the stainless steel enclosure, the spectrum side of chromium plated of thickness micron:30~60, which allows for precision ultrasonic cleaning in condition normally too harsh for such precision electronic #3:valve bodies and manifolds with small internals not accessible for cleaning by forced spray or mechanical remove #4:medical device: stainless steel parts cleaning with additional functions of sterilization and disinfection #5: aerospace parts cleaning: ultrasonic cleaning can restore the clogged passageway,particularly for filtering core to avoid expensive replacement #6: ultrasonic cleaner of water soluble machining coolants, chips, particular, and true machining/cutting  oils, buffing, polishing and lapping components which require mechanical surface scrubbing to remove #7:general washing for maintenance, manufacturing, rework

Buying Guides

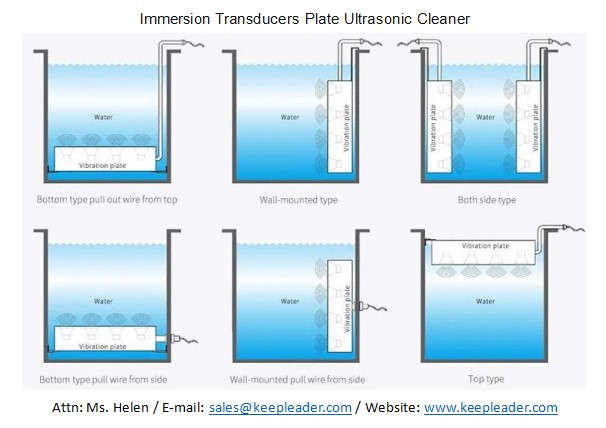

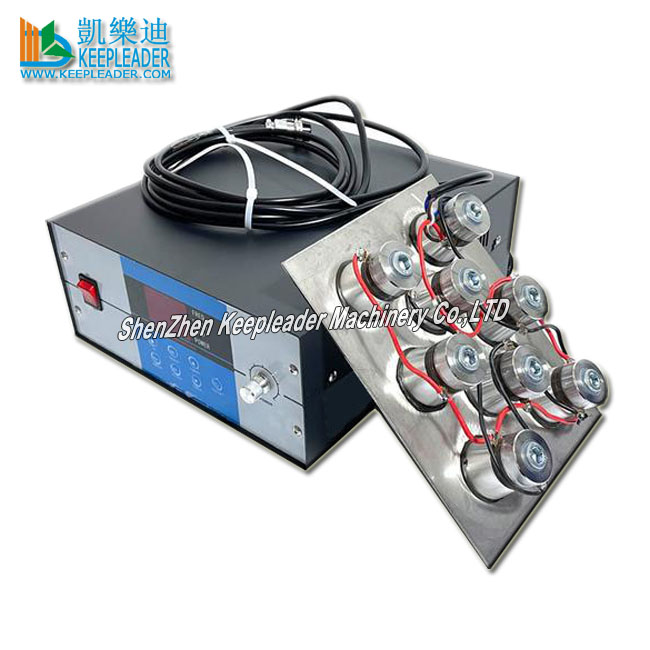

Immersion Transducers Plate Ultrasonic Cleaner is composed by ultrasonic generator and transducers plate, the transducers are sealed in stainless steel enclosure for adding ultrasonic cleaning capability to tanks and equipment for parts cleaning, Immersion Transducers Plate can be added tp either new or existing equipment, the ultrasonic transducer uses ultrasonic frequencies to cavitate the aqueous solution molecules in the tank, and produce uniform precision parts cleaning, the number and placement of Immersion Transducers Plate Ultrasonic Cleaner is primarily determined by the volume of liquid in tank, geometric layout of the tank, and load size of the parts, depending on the size of tank and parts cleaning application, the watts of ultrasonic power per litre or watts/litre can vary from 50 to 100+w/3.8litre,Immersion Transducers Plate for cleaning can be mounted on the side or bottoms of parts washing/cleaning tanks, depending upon their geometry, in general, side mounting is recommended for tanks where the depth is more than two times the smallest of length or width, side mounting helps prevent debris and foreign material from setting on the top of the ultrasonic transducer enclosure, which can reduce ultrasonic effectiveness

Company View

Immersion Transducers Plate Ultrasonic Cleaner is most commonly added to existing stainless steel and other metallic based tanks/bath, the plate and ultrasonic power are made to incorporate such tank,we can easily make our Immersion Transducers Plate into any any configuration sizing required for your application to no additional custom size pricing

OEM service

Immersion Transducers Plate Ultrasonic Cleaner is portable ultrasonic system to combine with existed tank or processing line in cleaning, you ensure easy service, because each one can be easily replaced in minutes thanks to our flexible mounting schemes, you can also move our immersion transducers plate from tank o tank, or reposition them on tanks as required for special situations and needs, and you can rack-mount a serial of immersion transducers plate so that they can be installed and/or removed as a group to speed up tank cleanings, inspections and maintenance

Contact Us

If you looking for a cleaning system for your existed tank, please feel free to contact us, we are willing to win the trust of every customer with excellent Immersion Transducers Plate Ultrasonic Cleaner preferential prices and good after-service based on the spirits of improvement, our business philosophy is to provide excellent products and services o the society, and our development strategy is to build international brands and modern enterprise, we strive to provide customers with the highest quality products, the most-effective solutions and the fastest response speed
