Immersible Ultrasonic Vibrators Pack Cleaner of 28k_40khz_Input Ultrasound Cleaning Machine_Immersion Vibrating Transducer Plate

Immersible Ultrasonic Vibrators Pack Cleaner

Immersible Ultrasonic Vibrators Pack Cleaner consists of ultrasonic generator and sealed stainless steel transducers enclosure for adding ultrasonic cleaning capability to tanks and equipment for parts cleaning, Immersible Ultrasonic Vibrators Pack Cleaner can be added to either new or existing equipment, the ultrasonic transducer uses ultrasonic frequencies to cavitate the aqueous solution molecules in the tank and produce uniform precision parts cleaning, typically for decontaminating complex internals

Product description

Immersible Ultrasonic Vibrators Pack Cleaner

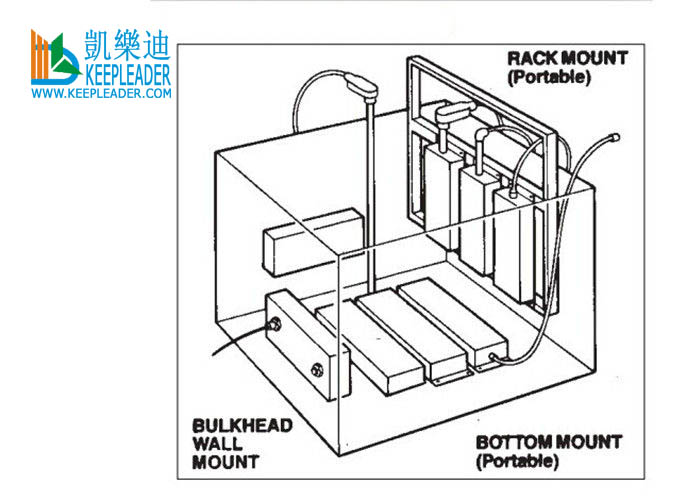

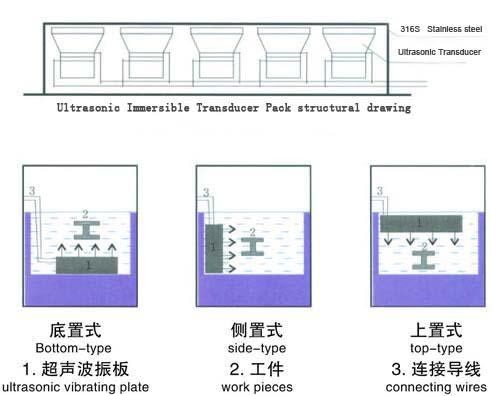

 The number and placement of the Immersible Ultrasonic Vibrators Pack Cleaner is primarily determined by the volume of liquid in the tank, geometric layout of the tank, and load size of cleaning object, depends on the size of liquid tank and parts cleaning application, the watts of ultrasonic power per litre pr watts/litre can vary from 30 to 100+ w/3.8litre, Immersible Ultrasonic Vibrators Pack Cleaner can be mounted on the sides, top or bottoms of the parts washing tank, depending upon their geometry, in general, side mounting is recommended for tanks where the depth is more than two times the smallest of the length or width, side mounting help prevent debris and foreign material from settling on the top of the ultrasonic transducer box, which can dampen ultrasonic vibrating agitation, Immersible Ultrasonic Vibrators Pack Cleaner Can be made in 28kh/40khz frequency, 28khz is typically used for tough-to-clean parts like engine blocks and cleaning burnt-on carbon, however, 40khz often is considered for precision cleaning of complex and fragile parts

Product uses

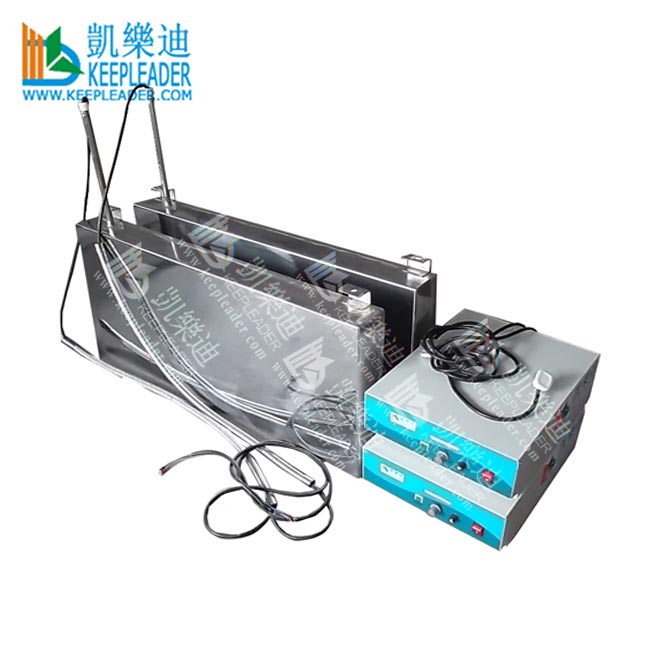

Immersible Ultrasonic Vibrators Pack Cleaner is split-type ultrasonic cleaning device, that is typically composed of vibrating plate and ultrasonic generator, Viz power box, its flexible arrangement of transducer plate can install at specified position to gratify necessary vibrating agitation combined with customers’ existing tanks, hence, its advantages are obvious because of its flexibility and durability, such as place ultrasonic vibrators pack to existing manufacturing cleaning process line, such as aqueous cleaning lines, passivation, plating lines, or other part finishing processes which require microscopic surface scrubbing agitation; the heavy-duty design of the stainless-steel box has completed sealed components, which allows for precision ultrasonic cleaning in conditions normally too harsh for such precision electronics; valve bodies and manifolds with small internals not accessible for cleaning for forced spray or mechanical removal; medical device, stainless steel parts cleaning; aerospace parts cleaning; ultrasonic parts cleaning of water soluble machining coolants, chips, particulate and true machining/cutting oil, buffing, polishing and lapping components which require mechanical surface scrubbing to remove; general washing for maintenance, manufacturing, rework and or re-manufacturing

Technology

Immersible Ultrasonic Vibrators Pack Cleaner is constructed of cavitation resistant, bright annealed 316L stainless steel with laser welded seams to ensure a long life, the user can designate these customized Immersible Ultrasonic Vibrators Pack Cleaner into their new ultrasonic systems or retrofit them into existing systems to introduce ultrasonic precision cleaning, the cleaning load of your parts tank will determine the number and placement of the submersible transducers, which are available in custom size, wattage and frequencies, including 28khz and 40khz, and they can be mounted on either the sides or bottoms of the cleaning tanks, depending upon their geometry, by using a keepleader modular Immersible Ultrasonic Vibrators Pack Cleaner, you ensure easy serving, because each one can be easily replaced in minutes thanks to our flexible mounting schemes, you can also move our Immersible Ultrasonic Vibrators Pack Cleaner from tank to tank, or reposition them on tanks as required for special situations and needs, and you can rack-mount a series of our immersible ultrasonic vibrators pack so that they can be installed and or removed as a group to speed uo tank cleanings, inspections and maintenance
