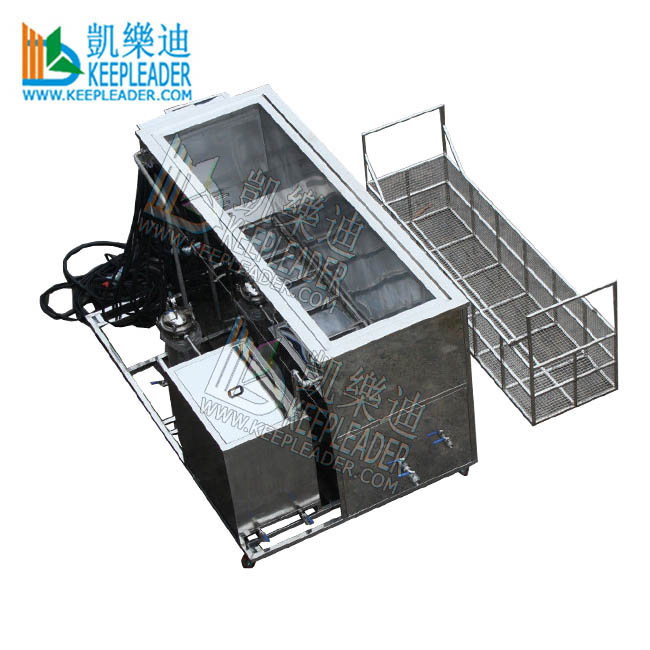

PCB Cleaner Printed Circuit Board Cleaning Ultrasonic Machine for Motherboard_Printhead_Electronic Parts Washing Ultrasound Tank

PCB Cleaner Printed Circuit Board Cleaning Ultrasonic Machine

PCB Cleaner Printed Circuit Board Cleaning Ultrasonic Machine

PCB Cleaner Printed Circuit Board Cleaning Ultrasonic Machine is all function in one tank equipped with filter circulation reservoir to avoid second contamination to get spot-free cleaning effect for your PCB, Motherboard, electronic components

Product description


How to use an ultrasonic cleaning to restore electronic and PCBs

Dust, dirty and corrosion can impact the performance of printed circuit boards (PCBs) used in electronic equipment exemplified by sophisticated hand-held devices such as iphones, some of which have been accidently dunked, can be restored, KEEPLEADER is suggesting to use ultrasonic cleaning along with ultrasonic cleaning solution expecially formulated for delicate electronics

Selecting an ultrasonic cleaning machine

Ultrasonic cleaning machine, such as the tabletop, stationary series are ideal for small volume user in cleaning or used as household device, KEEPLEADER can make to size and make customized function, e.g: heating power, timer, counter, temp display, resetting, cycling and filtering mounted and etc, the multistage ultrasonic cleaning machine is recommended for big factory, manufacturer. For them, KEEPLEADER will consider the automatic loading, unloading and transmit among cleaning process, as well as drying system, water purification auxiliary

How to select and use the cleaning solution

The wrong cleaning solution, just as the wrong ultrasonic cleaning frequency, can do more harm that good, an ultrasonic cleaning solution ideal for glass and ceramic substrates, optics, PCBs plastic parts is the biodegradable concentrate detergent, is removes grease, oil, activated fluxes, dust, fingerprints, light corrosion and residues from coffee, tea, colars, milk and other sources

Depending on the extent of contamination this concentrate is diluted 3% to 10% with water, the recommended ultrasonic cleaning time is 3 to 10 minutes at approximately 65C/150F, after cleaning the parts, must be rinsed in distilled or deionized water, this is very important in order to remove any traces of cleaning solution residue, because tap water also will leave residue deposit, it must not be used as a rinse, dry the components thoroughly before reassembly

Note, that these are only guidelines of KEEPLEADER, the user should consult with the ultrasonic cleaning professionals at KEEPLEADER regarding equipment, solution and procedures to meet your requirements

Other suggestion from KEEPLEADER

A fresh batch of ultrasonic cleaning solution contains entrapped air, you can see evidence of this by the bubbles that appear on the inside of a glass of water standing at room temperature, this air interferes with the cavitation process and must be driven off before you begin the cleaning operation to do under steps;

01: add water and correct portion of cleaning concentrate to the tank’s fill line

02: set the temperature dial

03: turn on the ultrasonic cleaning to start the degassing operation

The rising temperature coupled with the cleaning chemicals and ultrasonic energy will speed the degassing operation and at the same time thoroughly mix the contents of tank, when air bubbles not longer rise to the surface, you are ready to clean the parts, place them in the mesh basket, taking care to keep them from contacting each other, lower the basket into the basket into the cleaning solution and set the timer, as you become experienced with ultrasonic cleaning PCBs and other electronic components, you will become more proficient and efficient, the engineer at KEEPLEADER are ready to help you reach this goal by selecting the ultrasonic cleaning model, frequency, power, cleaning solution, cleaning process that meets your requirements

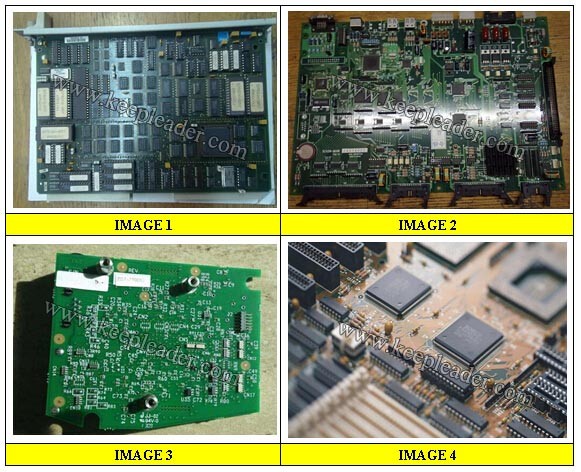

Cleaning effect


PCB Cleaner Printed Circuit Board Cleaning Ultrasonic Machine

PCB Cleaner Printed Circuit Board Cleaning Ultrasonic Machine

 PCB Cleaner Printed Circuit Board Cleaning Ultrasonic Machine is molecular explosive jetting by ultrasonic agitation

Buying guides


01: Choose your correct system
For customers demanding multiple stage ultrasonic cleaning and high efficiency parts drying, KEEPLEADER™ multi-stage consoles provide the same efficient, effective ultrasonic cleaning technology plus the ability to move the items items through additional wash and rise stages, KEEPLEADER™ will design a custom-sized and custom-featured ultrasonic cleaning machine to meet your specific needs
011: heated ultrasonic cleaning
012: heated ultrasonic cleaning + heated rinse
013: heated ultrasonic cleaning + heated ultrasonic rinsing
014: heated ultrasonic cleaning + heated ultrasonic rinsing + hot air drying
015: Inner size of cleaning tank, frame construction, custom color, ultrasonic frequency
02: Choose your tank size
021: the length*Width*depth you wanting
022: advise KEEPLEADER™ the size of your cleaning parts and cleaning efficiency
03: Each system includes:
031: Full insulated stainless steel tanks
032: Exterior power coat finish
033: Digital temperature controls-each tank
034: Digital timer-controlled ultrasonic cleaning
035: Dual stage filtration-cleaning stage
036: Single-stage filtration rinse stage
037: Low-level float sensors-each stage
04: Exceed industry standards
041: All size available, including bench version
042: High quality stainless steel construction
043: For vapor degreasing, cleaning and drying applications
044: Full solution control features

Product uses


PCB Cleaner Printed Circuit Board Cleaning Ultrasonic Machine
PCB Cleaner Printed Circuit Board Cleaning Ultrasonic Machine is capable for cleaing of Circuit board, motherboard, electronic components in aqueous immersion tank by ultrasound agitation
