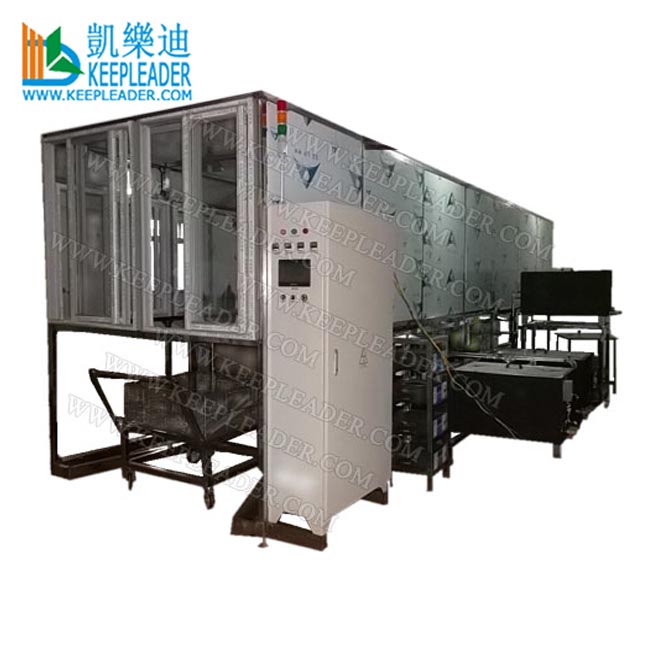

Aluminum Tube Degreasing Industrial Ultrasonic Cleaning Machine of Al Plate Washing Degreaser Multiple-Stages Ultrasound Cleaner

Aluminum Tube Degreasing Industrial Ultrasonic Cleaning Machine

Aluminum Tube Degreasing Industrial Ultrasonic Cleaning Machine

Selecting the right Aluminum Tube Degreasing Industrial Ultrasonic Cleaning Machine in optional items of ultrasonic frequency, ultrasonic power output, heating power, tank volume, auto transferring system, filtering circulation, hot air drying device, controlling system and multiple stage process of cleaning procedures for cleaning aluminum tube is a challenge, aluminum tubes must stop in standing during cleaning, and it is better to consider higher ultrasonic frequency, moreover, ultrasonic cleaning detergent/solution must be compatible with aluminum parts, as usual, the neutral solution is reliable, some other ingredients are also considered into the formula, which is necessary to consult with chemical suppliers

Product description


Mainly introduction

Aluminum Tube Degreasing Industrial Ultrasonic Cleaning Machine is widely used in cleaning before plating of hardware parts, which can clean the machining lubrication, polishing wax and dirty of blind holes and dents, by which to avoid the impurity of plating liquid does harmful influence in electrophoresis tank

Mainly application

This Aluminum Tube Degreasing Industrial Ultrasonic Cleaning Machine is used in plating factory, which is available for any hardware parts before plating, and electronic parts cleaning, electric parts cleaning, optical parts cleaning, and medical appliance cleaning and etc

Character

With cycling and filtering system

Separated liquid storage tank

Stainless steel structure, good performance of acid and alkali resistance

Cleaning part is transferred by robot arm, automatic and high speed

PLC is easy and visible to operate and reset cleaning program

With function of up and down moving to get perfect cleaning effect

Automatic load and unload cleaning parts

Completely closed structure, ensure good working enviroment

Have oil-water separator, and recycling system

Cleaning procedure

loading position

Ultrasonic cleaning

ultrasonic cleaning

DI water rising+ bubbling

high pressure air gun drying

unloading position

Mainly parameter

Model

KLE-40100AP

Ultrasonic power

5kw*2

Heating power

4kw*3

Ultrasonic frequency

28khz

Cleaning temperature

30 to 60 degree

Cleaning detergent

3% to 10%

Cleaning time

0.2 to 5 minutes

Number of cleaning tank

1 to 8 (optional)

Overall size

6*3*2.8m

Net weight

2000kgs

 pls contact KEEPLEADER for more info and technical assistance upon Aluminum Tube Degreasing Industrial Ultrasonic Cleaning Machine

Company overview


Aluminum Tube Degreasing Industrial Ultrasonic Cleaning Machine

Aluminum Tube Degreasing Industrial Ultrasonic Cleaning Machine constructs stainless steel 304 in frame, outside enclosure,cleaning basket, lifting and transferring system, tailored dimension and bespoke functional combination of tested-proof cleaning procedures, because of our customer-oriented configuration, the cleaning efficient, cost-saving, convenient commission and defect diagnosis all are considered prior to building,we also integrate ultrasonic decontamination scrubbing agitation, ultrasonic rinsing, filtering circulation and hot air drying in a whole production line

Product uses


Aluminum Tube Degreasing Industrial Ultrasonic Cleaning Machine

Aluminum Tube Degreasing Industrial Ultrasonic Cleaning Machine must have compatible detergent/solution to take reliable cleaning performance, depending on the type of contamination to be removed, cleaning agents are usually acidic or bases, aluminum is highly reactive element that suffers from corrosive action from both acid and bases, as a result, neither can be used in the ultrasonic bath, putting these factors and restrictions together, cleaning aluminum parts in a heated high frequency ultrasonic bath with a neutral detergent will give the best results, the heat softens grease and oily residue while the detergent helps dissolve contaminants, the higher frequency creates small, low-energy cavitation bubbles that will not damage the aluminum surface, such an Aluminum Tube Degreasing Industrial Ultrasonic Cleaning Machine will clean aluminum parts rapidly, removing all traces of dirt, even in hard-to reach places, crevices and dead-end holes, for aluminum tube cleaning, ultrasonic vibration can apply scrubbing force in going through the tube and discontaminate grime/debrits bonding inside of tube wall

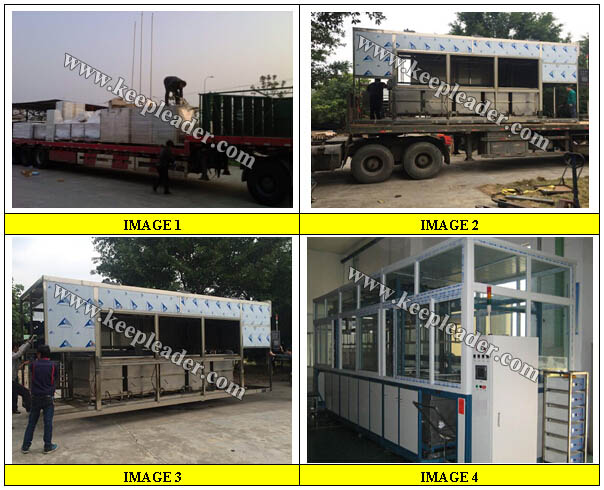

Packaging and shipment


Aluminum Tube Degreasing Industrial Ultrasonic Cleaning Machine

Aluminum Tube Degreasing Industrial Ultrasonic Cleaning Machine is installed during transportation, only assemble the modular sect for turn key machine with illustration drawing, the user don't need further debugging after assembling

Contact Us


KEEPLEADER has the long-term experience with Aluminum Tube Degreasing Industrial Ultrasonic Cleaning Machine and in house expertise to evaluate these characteristics for specific customer applications, we can analyze the industrial cleaning requirements for aluminum tube and recommend components and turn-key systems from their extensive line of industrial ultrasonic cleaner, KEEPLEADERs systems will clean all components, including aluminum parts and delivery performance that for exceeds that of conventional cleaning methods, contact KEEPLEADER for a free consultation to review the requirements of your industrial cleaning application
