Location : Home >> Products >> Ultrasonic Cleaning Machine >> Multistage Ultrasonic Cleaning

Automatic Ultrasonic Vapor Cleaning Machine of Solvent Steam_Vapor Degreasing Cleaner for Oil Parts Ultrasonic Vapor Degreaser

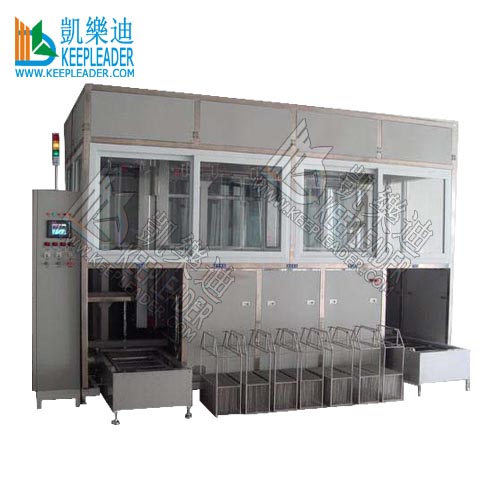

Automatic Ultrasonic Vapor Cleaning Machine

Automatic Ultrasonic Vapor Cleaning Machine has features of #1: full closed shield #2: Automatic loading,unloading & Transmission #3:Conbined pre-cleaning, ultrasonic cleaning, ultrasonic rinsing, vapor cleaning, condensation drying and distillation recirculation for oil parts precision cleaning

Product description

Three Tank Vapor Degreaser
KLE-06R series of multi-tank ultrasonic cleaning machines use non-flammable gas organic solvents such as TCE, dichloromethane or Freon such as a cleaning agent. For cleaning electronic components and circuit board of the rosin, precision mechanical parts of grease, dirt strap case, metal products, polishing wax and so on. Have benefits of fast dry, suitable for continuous production.
Mainly Advantages
Eight Nos. of secondary cooling coils covering 75% of free board zone for minimum losses. Four Nos. of primary cooling coils between the vapor tank & ultrasonic tank to arrest the vapor flowing to the ultrasonic tank. Indirect heating of solvent enhances the life cycle of the solvent. Proper insulation of the tanks minimizes the heat loss & in turn saves electrical energy. All the fittings of cooling coils, heater tubes, water separator etc. are fitted with threading arrangement. (NO Welding) Water separator is specially deigned with cold water jackets for effective removal of atmospheric water from the solvent. Ultrasonic generators are encased in separate casing for convenient servicing. Ultrasonic generator is having auto tuning circuit for optimum power during loading. Easy serviceability of generators even without using soldering Iron. Heater tubes are mounted to the tanks with flange fitting for easy replacement of tubes in future. Built-in cooling system to prevent solvent evaporation Fast freeze drying system attached to enable the rapid packing or cleaning the work piece into the next process Filter attached to the solvent recovery system, reduce production costs temperature range 30-110C, have automatic temperature control device made of completed stainless steel to be free of Acid and alkali Have water level control system for safe production
The cleaning process
ultrasonic cleaning →Steam cleaning → freeze-drying ultrasonic cleaning →Steam cleaning → freeze-drying→Distillation recovery ultrasonic cleaning →ultrasonic cleaning →Steam cleaning → freeze-drying→Distillation recovery ultrasonic cleaning →ultrasonic cleaning →Cold (hot) dip →Steam cleaning → freeze-drying→ Distillation recovery

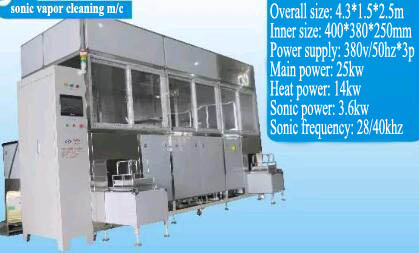

Parameter
Model	KLE-6012R	KLE-6016R	KLE-6018R	KLE-6021R
Ultrasonic power	2400W	3200W	3600W	4200W
Heating power	10KW	12KW	14KW	16KW
Size of inner tank	360300300	400300250	400380250	460380400
Dimension	22806601195	25507001235	25507201305	26507551350
Vibrators	48pcs	64pcs	72pcs	84pcs
Frequency	25KHZ,28KHZ,40KHZ
Material	304 stainless steel inner tank and 316 SUS stainless steel inside tank
Heating elements	Fully enclosed in stainless steel box, is water proof

MFR: KEEPLEADER™ have modified and designed Automatic Ultrasonic Vapor Cleaning Machine for our customers’ unique and special requirements, please contact KEEPLEADER™ for updated details

Function overview

Automatic Ultrasonic Vapor Cleaning Machine has popular process in precision cleaning of pre-cleaning, ultrasonic cleaning, ultrasonic rinsing, vapor cleaning, and distillation recirculation, which also can amend for your personality

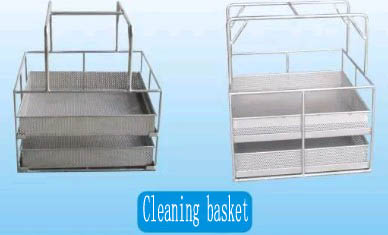

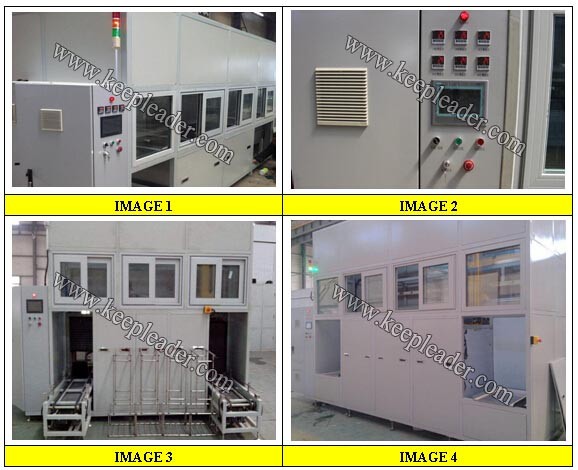

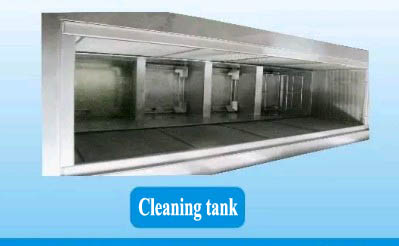

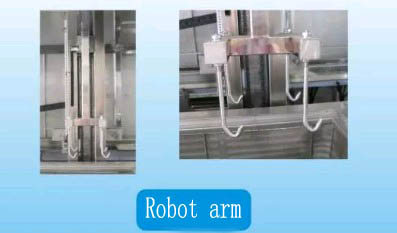

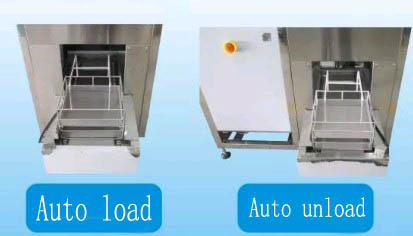

Detailed iamges

Automatic Ultrasonic Vapor Cleaning Machine is designed multipe-stage cleaning process of solvent degreasing

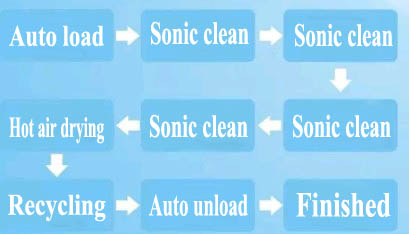

Working flow

Automatic Ultrasonic Vapor Cleaning Machine is acceptable for customized size, functional configuration and additional process

Contact Us

For Ultrasonic Vapor Cleaning Machine, keepleader has compacted type of all process in one tank, mutilple-stage in line cleaning of cleaning, rinsing, drying, please contact us for tech verification prior to your decision
