High Frequency Stretch Ceiling Welding Machine

High Frequency Stretch Ceiling Welding Machine

Product description


High Frequency Stretch Ceiling Welding Machine

Mainly Application

Applied for Tarpaulin, sun shading canvas, painting canvas, film curtain, canopy,awning, sunshade, sunblind, car tent, truck cover, Billboard, Beach umbrelllar, water polo, inflatable prodcuts,PVC streth ceiling and other around of this kind of membrane structure material welding/sealing/stitching

Character

High Q value oscillation tube

the welding length is optional, maximum length:2000*25mm for 25kw

The machine is G shape, have longer throat to hold the material

High sensitive anti-sparkle device NL5557 to avoid damaging the mould.

High quality imported apparatus

European-model high frequency vibration box, more reliable and stable in output

Laser position device for precision counterpoint

Have boosting roller at two side for easy feeding materail

Mounted five caster with four brakes

Automatic thermostat to keep the temperature at best performance in welding

High precision high frequency knob for visible control

Low voltage control panel for safty purpose

Anodized mould and tooling for longer life-span

Top amounted cylinder for vertical pressing, which is more uniform pressure

Foot pedal control and button control is optional

Over current protection circuit to avoid burning the oscillation tube

Power ranges 4kw up to 25kw for various welding length

Technique Specifications

Model

KLR-4KW-SN

Power

4000W

Power supply

220V/380V   50/60HZ

Frequency

27.12MHZ

Input power

8KVA

Rectifier

SILICON DIODE

Oscillation tube

7T85RB

Max pressure

350kg

 Gap of electrodes

100MM

Moving distance of active horn

100MM

Size of upper electrode

600*25MM

Size of down electrode

1000*260MM

Welding time

0~10S Adjustable

Net weight

500KG

Overall dimension

Customized

Standard equipment:/configuration

Name

Origin

Brand

Air driven components

Taiwan

Airtac

AC contactor

Korean

LG

Relay

Japan

Omron

Electron Tube

Japan

Toshiba

Time controller

Taiwan

CKC

Size illustration




Company overview

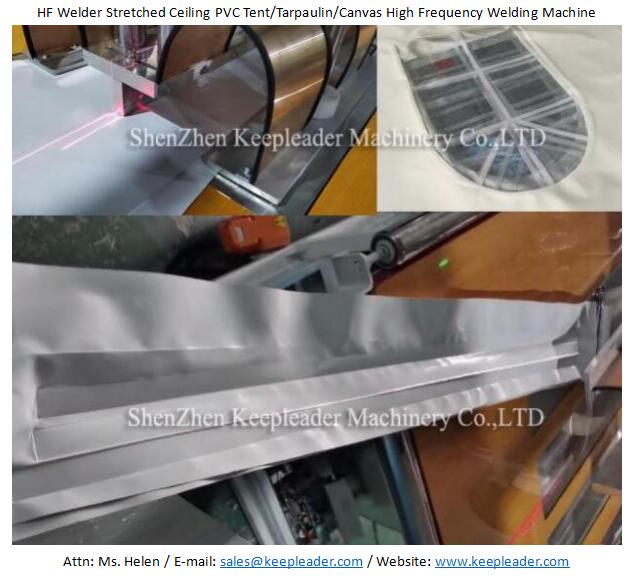

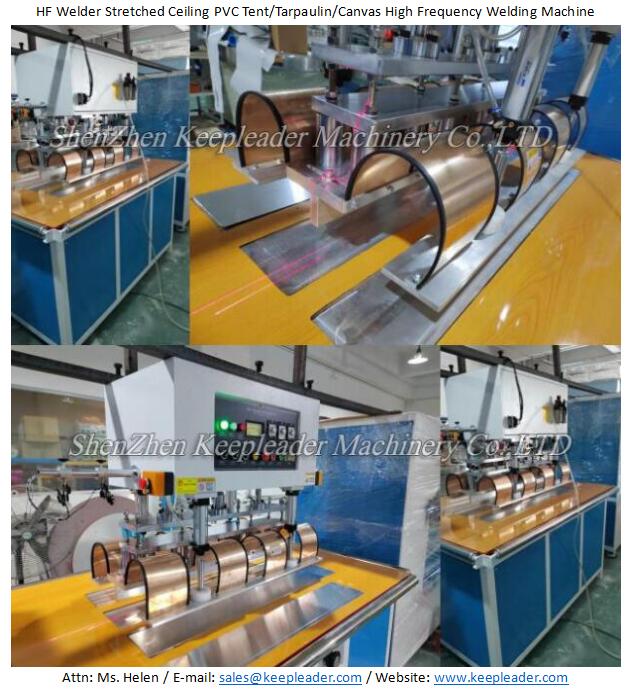

Detailed images
