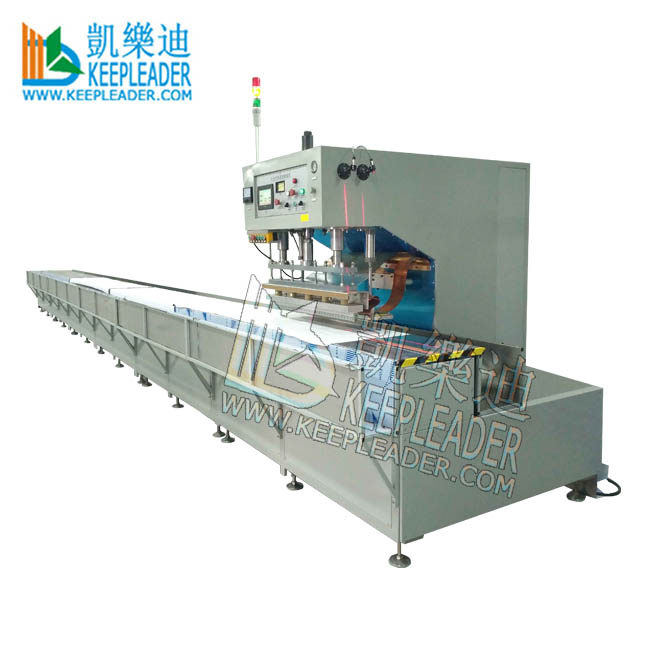

PVC Canvas Tarpaulin Seaming Automatic High Frequency Welding Machine of Auto Travelling Plastic Membrane Sealing HF/RF Welders

Ø         Applications

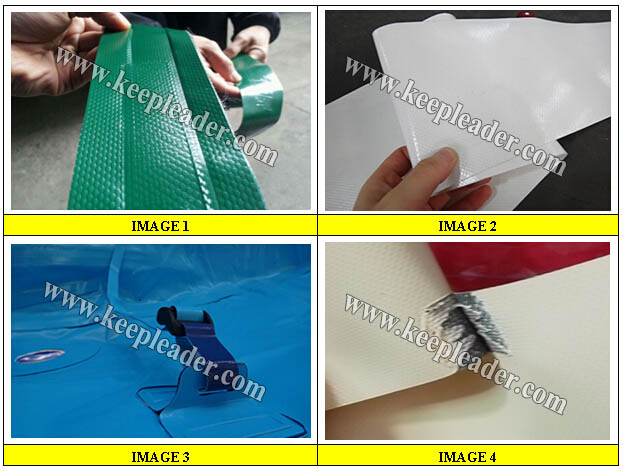

PVC Canvas Tarpaulin Seaming Automatic High Frequency Welding Machine Used for welding tent, PVC tarpaulin, ceiling, truck cover and printed advertisement canvas conjunctions, awning, canopy, sunshades; and all kinds of Plastic membrane structure products made of PVC, PU, TPU, or coated 30% up fabric

Ø         Feature

This Automatic tarpaulin/canvas/Mesh/Tent Membrane structure Welding is specially designed for industrial canvas welding and large area of PVC sheet welding

Built-in incredible High sensor electronic protection system with which the mould and material are perfectly protected

The Output of High Frequency is in compliance with international Radiation standard which avoids any harm to human body

Customized bench length, the travelling head is driven by precision rail

Servo-motor, touch screen programmable HMI/PLC

European-model square high frequency vibration box, more reliable and stable in output

Single line or two lines continue welding, welding length can be ordered as special need

Can be used as a freestanding machine for welding production or as a supplement for a larger system

The travelling is servo motor driven, the speed is adjustable, braking has no jitter to ensure the straight line’s welding without any offset

Worktable is long, smooth and seamless, the storage space is large and beautiful

The electrode bar/blade and tooling can be quick replaced

Multiple protection, Self-detect over-current/over-loading circuit design to cut off power for safe working, barrier protection strict control high frequency magnetic field, working environment is more secure.

Ø         Parameter

Model

KLR-8KW-CB / KLR-15KW-CB

Power

8000W / 15000W

Power supply

3 Phase 380V or 3 phase 220v.

Input power.

15KVA / 25KVA

Rectifier

Silicon Diode

Vibration tube

7T69RB / 8T85RB

Frequency

27.12MHz /13.56MHz

Spark protection

5557

Max. gap of electrodes

50MM

Up electrode

800～1000*25mm/1000～1200*25mm

Operate style.

Pneumatic /foot valve

Welding Guid

Positioning slot or pneumatic clamping

Time adjust

0-10S adjustable

Working Table

8 meters~12meters, Either or Specified Length

Components standard

Air driver: Airtech / Taiwan

AC Contactor/Relay: Omron / Japan

Time controller: CKC / Taiwan

Weight

4000kgs

Packaging Volume

25~28CBM
