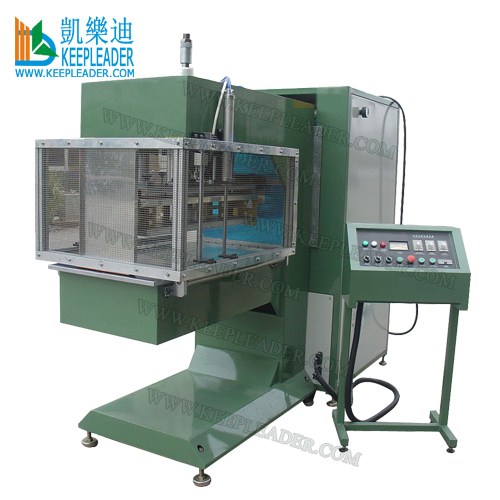

PVC PU TPU Conveyor Belt Welding 15kw High Frequency Machine for Cleat_Sidewall_Baffle Treadmill HF/RF Profile Welding Equipment

Mainly application

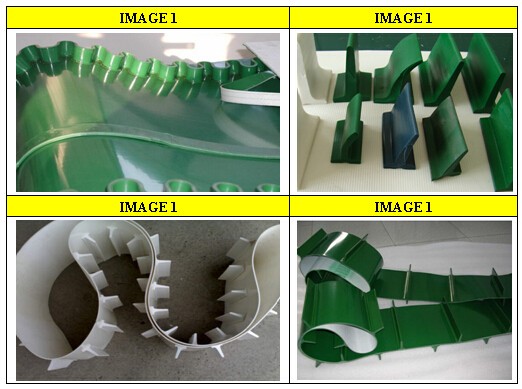

TPE/PVC/PU conveyor belt high frequency welding machine is professional bonding machine for sidewall, cleats in conveyor belt, which his make of thermoplastic elastomers, the welding machine has manual self-clamping slotted electrodes, which can easy load and unload various shaped chevron, eg: T cleats, L cleants profiles, sidewall of conveyor belt, KEEPLEADER has auto electronic high frequency tuning generator, which can satisfy the max welding size:1.5*0.15m (length*height) cleats in a go welding

General features

Welding length and width is optional

European-model square high frequency vibration box

Twin pedal valve in control for easy and convenient trigging

Customized work table dimensions, electrode holder dimensions, tooling

Technical Specification

Model

KLR-15KWC

KLR-25KWC

KLR-15KW-DC

KLR-25KW-DC

Output Power

15000W

25000W

15000W

25000W

Anti-Spark

5557 High sensitive anti-spark system

Voltage

3P AC 380V 50Hz-60HZ or customize

Frequency

13.56MHz+/- 0,6 %

Input power

15KVA

35KVA

15KVA

35KVA

Rectifier

SILICON DIODE

Oscillation tube

8T85RB

8T25RA

8T85RB

8T25RA

Max pressure

1000kg

1500kg

1000kg

1500kg

Operation mode

Pneumatic Operated

Electrodes gap

100mm

active horn

100mm

Upper Electrode

150*700

150*800

150*700

150*800

Work Table

250*750

250*850

250*750

250*850

Welding time

0.01~9.99s adjustable

Net weight

1500kgs

1400kgs

1500kgs

1400kgs
