Humidifier Water Tank Sealing Ultrasonic Welding Machine of Double Head Ultrasound Plastic Case_Box_Basin_Container Sonic Welder

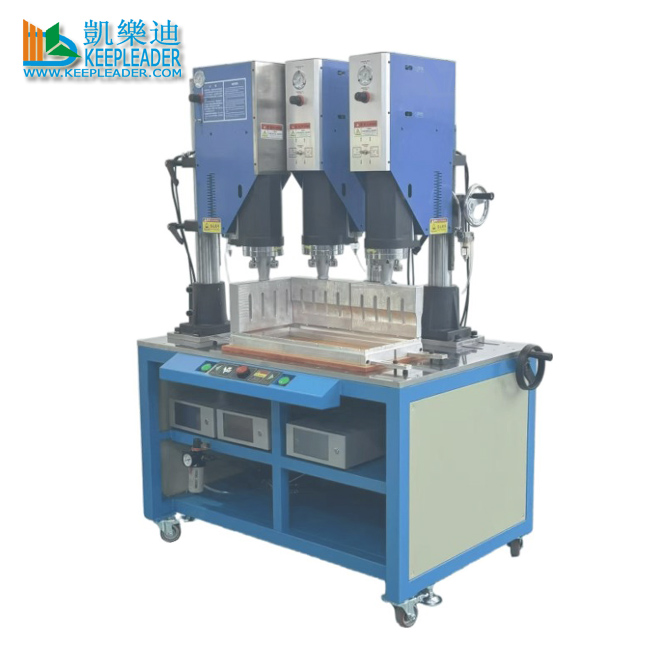

Humidifier Water Tank Sealing Ultrasonic Welding Machine

Humidifier Water Tank Sealing Ultrasonic Welding Machine

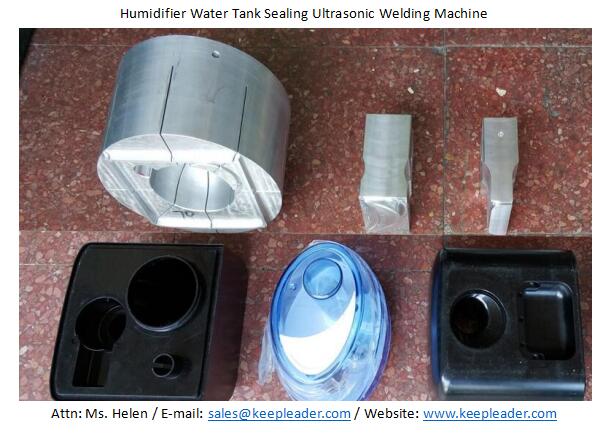

Humidifier Water Tank Sealing Ultrasonic Welding Machine has water tank/basin made of PP and ABS, which must exert water-proof welding,ultrasonic welding process is fastest and most economical welding technology in terms of speed,unmatched safety,reliability, flexibility, minimum material cost and joint quality, keepleader designs a combined ultrasonic vibrating system to perform large size bonding in a cycle, our in-house experts innovate tailored ultrasonic horn in compatibility with size and shape of our water tank, moreover, the hermetic sealing is achieved with results of aesthetic appearance

Product description


Characters

IC circuit precision control, automatic overload protection system
adopting digital switch, 1/100 precision re-set control
adjustable horizontal level, easy control welding horn
high O transducer, optimized output Have resonant frequency when the load, unload, without adjustment for the frequency of welding horn  Square column and column airframe structure is optional, the straight line guide bearing, the precise matching device Using the turbine rotation to adjust the machine movement, which is better than normal Adopting Japan HuangPai brand alloy steel to keep frequency strong and stable Celebrate itself durability for adopting USA aviation standard  7075¡¢6064 Aluminum alloy
the electronic components are imported from Italy, Japan, American, South Korean, Taiwan and act
all in one high capacity machine, applied for high precision of welding work piece
Automatic protective device, which is optional
high-power machine, which is applied for Large work piece

Mainly parameter

Model

KLC-2615D

KLC-3215D

KLC-4215D

Input  power

5.2kw

6.4kw

8.4kw

Frequency

15KHZ

Input voltage

110V/220V

Stroke distance

70mm

Oscillation system

Auto-stimulating

Output time

0.01-99S

Pressure

Pressure  bound  2-7bar

Welding area

400mm

440mm

500mm

Compressor

2HP

Net weight

300kg

350kg

400kg

MFR: KEEPLEADER has modified and designed Humidifier Water Tank Sealing Ultrasonic Welding Machine to accommodate our customers’ unique and special requirements, pls contact KEEPLEADER for tech assessment with your detailed application

Machine Uses


Humidifier Water Tank Sealing Ultrasonic Welding Machine

Humidifier Water Tank Sealing Ultrasonic Welding Machine stands out in competitors with its advantages of ultrasonic welding #1:welding speed: humidifier water tank can exert hermetic blending within one seconds, you will experience a high throughout and short turnaround times when you use ultrasonic welding in building water tank #2:unmatched safety: the ultrasonic welding only applies vibration in localized joints of water tank, the blending process of melting,solidifying and forming is accomplished within seconds, dont not cause any damage to the welds and surrounding environment #3:reliability:ultrasonic blending in humidifier water tank building is durable without additional interference from operator after verified commission #4: Flexibility: ultrasonic welding is available for dissimilar material,such as you can integrate ABS and PC,Acrylic #5: Minimal material costs: the welding process does not require connective bolts, solders, and adhesive material #6:Joint quality: the welded water tank exhibit no plastic flashes, deformations, or faults, the result is clean and almost invisible seam that need zero retouches

FRQ


FRQ of Ultrasonic plastic welding machine

01: How KEEPLEADER™ pack the machine
CFM: for exported machine, KEEPLEADER™ adopts European standard, all of machines is packed in plywood case that is fumigation-free material, there is pallet mounted used for truck forklift handling conveniently

02: If have any service on machine’s installation at KEEPLEADER™
CFM: for standard model, KEEPLEADER™ will provide instruction video and user manual on its installation and debugging, for customized design, KEEPLEADER™ can provide oversea service except for the service that standard machines have

03: If the machine need air compressor

CFM: yes, the standard machine is driven pneumatic, if your factory has air supply, just need to connect your air plug with machine, if not, you need to buy a 2p to 5p air compressor

KEEPLEADER™ also can make to the hydraulic driven under your requested

04: How about power supply of machines at KEEPLEADER™

CFM: KEEPLEADER™ has standard power configuration: single phase, 220v, 50hz and make to requested single phase 110v, 60hz, pls advise us KEEPLEADER™ sales representatives when ordering

05: If KEEPLEADER™ machine the die/mould for buyers

CFM: Yes, KEEPLEADER™ has mould workingshop to machine matching molds/clamping

/tooling and any other necessities

06: What information does KEEPLEADER™ need to make a proper quotation?

CMF: welding material and its shape size, expected welding effect, when ordering to KEEPLEADER™, need to provide the drawing and samples to make the mould and test machine

Buying guides


Humidifier Water Tank Sealing Ultrasonic Welding Machine

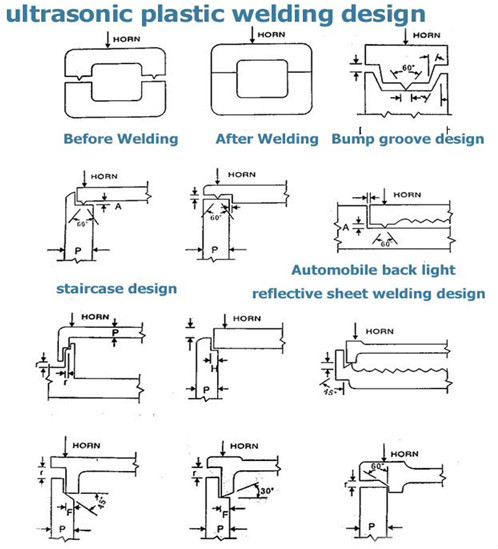

Humidifier Water Tank Sealing Ultrasonic Welding Machine performs professional solution in humidifier assemble of water tank blending, the basic principle of ultrasonic tech is unavoidable, the energy director must be built in the jointing area, as usually,the melting apex design a pointed triangle of 90 degree, which will entrapped in the groove to avoid replacement during longitudinal vibration applied, the melted plastic can stuff the gap into the groove, the hermetic sealing effect is achieved with excellent aesthetic appearance, if you have specified blending concerns, our experienced engineer will work with you for tech verification to satisfy your individual production

Contact Us


Humidifier Water Tank Sealing Ultrasonic Welding Machine integrates two sets of ultrasonic system to achieve a combined welding process in compatibility with large water tank of humidifier, so, the acoustic tooling is complex in construction of geometric structure, in order to construct a reliable and durable tooling in resulting of consistent blending effect, our expertise verifies your joints of water tank in humidifier assembling, it is better to present your layout for tech verification prior to building the injection mold, or, you can consult with our engineer for technique guidance
