AC Resistance Spot Welder Battery Pack Tab Welding Machine of Lithium Ion Cylindrical Cell Fusion Pulse Inverter Soldering Unit

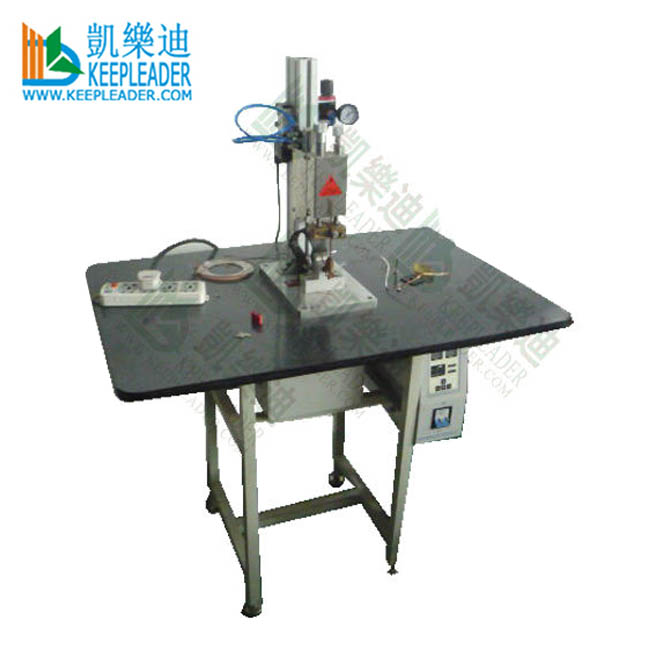

AC Resistance Spot Welder Battery Pack Tab Welding Machine

AC Resistance Spot Welder Battery Pack Tab Welding Machine,also called inverter spot welder, pulse spot welder, is a method that uses copper or tungsten electrodes charged with electric current to perform the welding, as pressure is applied on the area to be welded, an electric current is passed through the electrode, this generates heat at the contact area and bonds the two metals together, AC Resistance Spot Welder Battery Pack Tab Welding Machine can be used for foil-to-tab and tab-to-busbar welds, it is a cost effective welding process that is ideal for DIY Battery enthusiasts, electronic shop and etc, where the reliable spot welding preferred at a affordable price

Product description

AC Resistance Spot Welder Battery Pack Tab Welding Machine is going with necessary accessories, likely foot pedal, battery holder, welding needles, wrenches, screwdrivers, fuse tubes and nickel plating

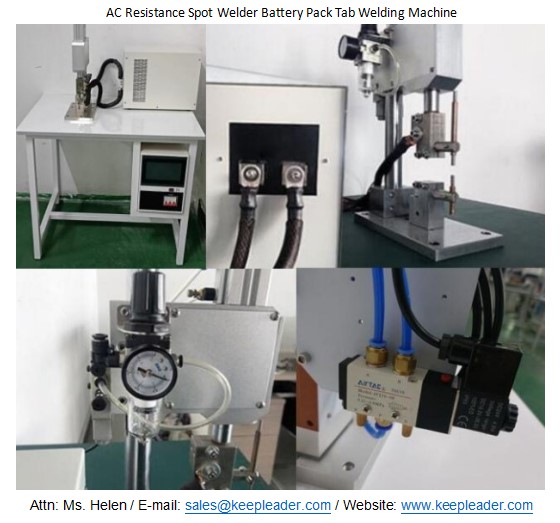

Detailed Images

AC Resistance Spot Welder Battery Pack Tab Welding Machine takes energy directly from the power line as the weld is being made, coarse current control is achieved by changing he tap setting on the welding transformer, which change the voltage of output, fine adjustment of weld current is achieved by controlling the amount in percent , of the AC power that is applied to the primary of the welding transformer, the weld time is controlled in line cycle, the minimum usually being one half cycle, line voltage fluctuation can affect the weld current delivered by open loop AC power supplies, for this easy, the input line must be well regulated, AC Resistance Spot Welder Battery Pack Tab Welding Machine is general purpose welders with high energy output, not suitable for critical, fine welding application

Machine Uses

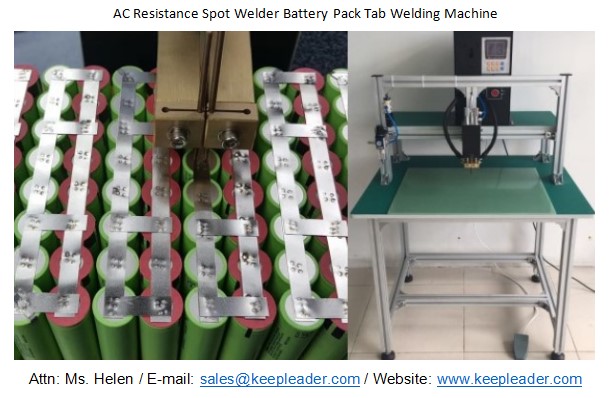

AC Resistance Spot Welder Battery Pack Tab Welding Machine can solve the practice of the connective assembles of electrical circuit and batteries cell

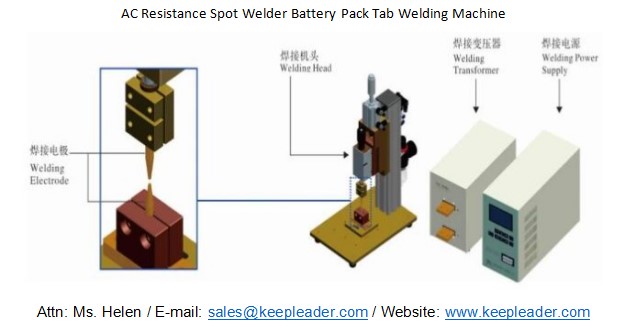

Tech Illustration

In selection of AC Resistance Spot Welder Battery Pack Tab Welding Machine suits for your practical spot welding in connective wires and battery cell, the essential elements  must take precaution to avoid risk. Either or failure, such as welding thickness: since some batteries are quite small and other are large, you also need to change your spot welding size respectively, however, this is only possible when your AC Resistance Spot Welder Battery Pack Tab Welding Machine also supports variable welding sizes and thickness; welding current: whether you are using your AC Resistance Spot Welder Battery Pack Tab Welding Machine for thinner connections or thicker others, you would want it to make secure connections that stay intact for a long time, to ensure this, its is highly important to use a powerful enough battery spot welder that can properly spot weld all kinds of wires on all kinds of batteries;temperature range: AC Resistance Spot Welder Battery Pack Tab Welding Machine has a temperature range mentioned, which is a great way to get an ideal of its performance; work cycle: all AC Resistance Spot Welder Battery Pack Tab Welding Machines have a rating known as work cycle which tells you about the time for which they can work at a given time, usually, battery spot welders offer a work cycle about 20 pulses within a minute;supported batteries: before you go head and start using AC Resistance Spot Welder Battery Pack Tab Welding Machine, it is highly important to ensure that your welder is compatible with the batteries that you want to wed in circuit;control: AC Resistance Spot Welder Battery Pack Tab Welding Machine has scale controls, which can adjust the power at your disposal, that ensure that you are running your battery spot welder at the right power output

 Contact Us

Keepleader, we offer complete line of high quality AC Resistance Spot Welder Battery Pack Tab Welding Machine,high quality AC welding power supplies, transformer, and accessories, lower prices on equipment, and electrode that other manufacturers. Shorter lead time, especially on electrode made of tungsten and copper, free test welds and unparalleled customer support, it is lucky for your shopping in our exhibiting room, believe that the limited scenario cannot cover all of your concerns, but, don’t frustrate, our experienced tech teams are often ready for supportive more, any of your consultation, either or technique verification are seriously respected,let us start from our initiation to our practical solution
