Serial Numbers Bronzing Imprinter Hot Foil Stamping Machine of Pneumatic Heat Press Embossing Equipment Numbering Wheels Printer

Serial Numbers Bronzing Imprinter Hot Foil Stamping Machine

Serial Numbers Bronzing Imprinter Hot Foil Stamping Machine

Serial Numbers Bronzing Imprinter Hot Foil Stamping Machine classifies tabletop type of pneumatic driven semi-automatic heat press bronzing device, constructs compact structure, robust frame in not only save the working space not also apply sufficient pressure for achieve uniform gold blocking, compared with other foil stamping machine, this bronzing imprinter more economical and better suited for small batch or personalization jobs, its rotary character wheels depends on individual specification in quantity of rotary wheels, characters in each wheels and font size of each characters. The user also can install interchangeable stamping plate engraved logo, text, graphic image, signs and codes

Product description


Pneumatic/Plastic/Security Seal Hot Stamping Machine

Mainly Application

Serial Numbers Bronzing Imprinter Hot Foil Stamping Machine is used for logo, trademark, Serious Number, production date in printing by hot stamping technology, also used for hot pressing, hot welding, hot sealing, hot embossing, hot impressing, hot forming, hot stamping,

Available material: Plastic, rubber, solid wood, cable, wire, Chinese chess, leather, bamboo and etc, which are made of various commodities

Character

Microprocessor control and pneumatic component drive for easy operation

Flat and cylindrical shape stamping both are available

Manual/semi-auto/auto operation available

With function of foil winding and foil collecting

Stamping pressure/temperature/speed all adjustable

Structure solid and durable

Pneumatic driven is durable and stable in movement

No impact during the working to guarantee the stamping effect

Two buttons triggered to run for safety purpose

Assembled the pedal Switch for convenient operation

Have function of self-counting in outputting

Mainly parameter

Model

KLS-1500

Heating plate size

150*210mm

Working plate size

170*220mm

Pressure

100-500kgs

Maximum pressure

800kgs (made-to-order)

Stamping Stroke

300-500mm

Max. Work piece height

200mm

Piston Diameter

63-125mm

Air pipe

3/8PT

Air consumption

10L

Net Weight

180kgs

Heating power

1500w

Power

110/220V 60/50Hz

Max. Printing speed

1000 PCS/hr

Stamping pressure

Within 800kgf

MFR: KEEPLEADER™ have modified and designed Serial Numbers Bronzing Imprinter Hot Foil Stamping Machine for our customers’ unique and special requirements, please contact KEEPLEADER™ for updated details

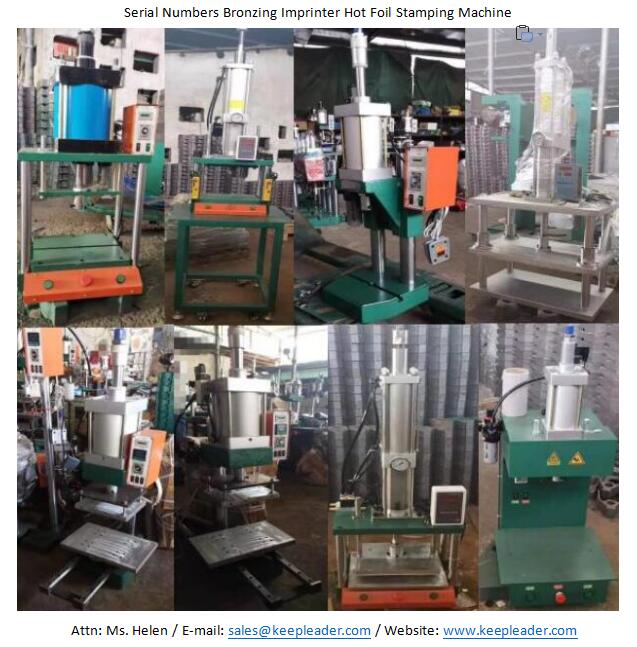

Detailed Images

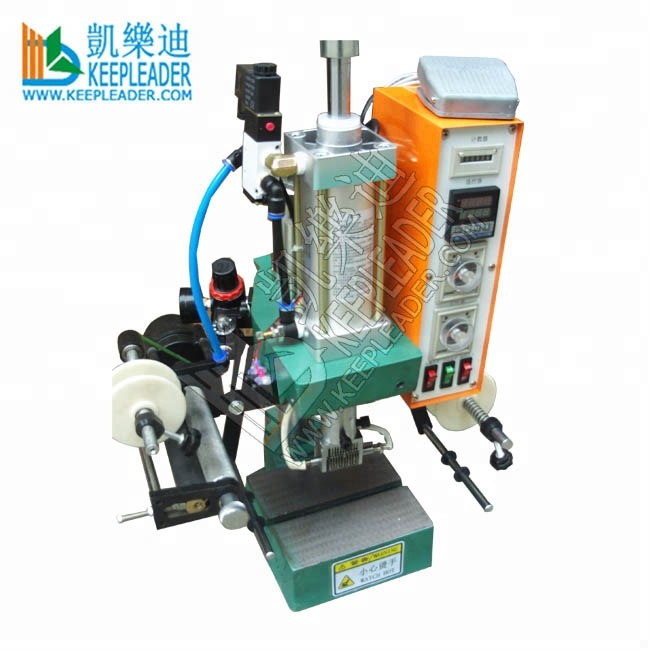

Serial Numbers Bronzing Imprinter Hot Foil Stamping Machine

Serial Numbers Bronzing Imprinter Hot Foil Stamping Machine varies in construction of tabletop, standing-along, bench top, Semi-auto front loading, Semi-auto two-sides slipway, automatic turntable indexing, or integrated conveyor belt, feeding and unloading mechanical arm, which depends on expected productivity,footprint of working shop and labor force consideration, tanks for tech team from keepleader, they dedicate to develop and construct bespoke hot foil stamping machine with customers imprinting pattern for decoration, advertising, identification, serial recording

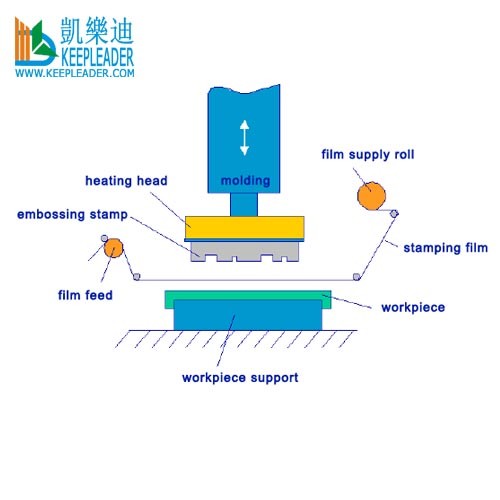

Function illustration


Serial Numbers Bronzing Imprinter Hot Foil Stamping Machine

Serial Numbers Bronzing Imprinter Hot Foil Stamping Machine has essential configuration in steel frame, motorized foil roll feeding device, pneumatic or servo motor driving system, top interchangeable branding dies/rotary character wheels, bottom adjustable fixture and controlling panel, all of them play their functional role respectively, our components or modular units are machined or assembled in precision and international standard for future convenient replacement or maintenance, in addition, the digital controller is visible and intuitive in setting and operating

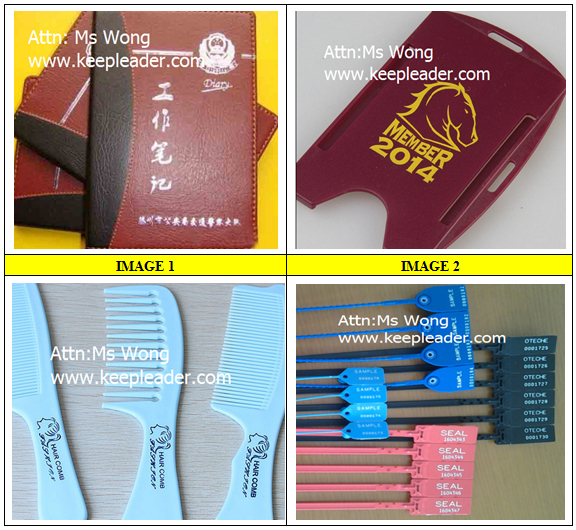

Product uses


Serial Numbers Bronzing Imprinter Hot Foil Stamping Machine

Serial Numbers Bronzing Imprinter Hot Foil Stamping Machine is the essential equipment of hot foil stamping production and processing, which is perfect for personalization of embossing length, wood products, handcrafts, handbags, purses, stickers, stationery, footwear marks, plastic packaging, leather embossed branding, paper invitation, plastic comb. Security seal, book cover, business cards,notes, furniture, recipes gilt or any other small or medium size parts gold foil blocking in specified size and shape with engraved logo. Serial numbers, identifying codes, signs, graphic image, text and marks

Contact Us


Serial Numbers Bronzing Imprinter Hot Foil Stamping Machine has rotary character wheels, this numbering wheel design alphanumeric characters and punctuation in each wheels, the quantity of wheels comply with practical combination, we also can integrate specified logo or text in the character wheels of two lines embossing, let us know more upon your application for tech verification
