Heat Press Printing Hot Foil Stamping Machine of Paper_Leather_Wooden_Plastic Golden Imprinting Pigment Foils Bronzing Equipment

Heat Press Printing Hot Foil Stamping Machine

Heat Press Printing Hot Foil Stamping Machine

Heat Press Printing Hot Foil Stamping Machine takes classification of universal drying imprinting solution, that invoices heating an engraved die or mold, which deposits the marking foil onto the substrate upon making contact, the foil consists of three layers, a color layer that contain a metallic or pigment dye, an adherence layer that provides a lasting bond, and a release layer that allows the die to be pulled away, the foil is pinned between the hot die and substrate for a certain amount of time, knows as dwell time, when the dwell time is sufficient, the press release the pigment layer, which binds to the work-piece substrate with heat and pressure when contact is made with the die.In addition, the user can consider only color-darken imprinting without sandwiched foils

Product description


Pneumatic/Plastic/Security Seal Hot Stamping Machine

Mainly Application

Heat Press Printing Hot Foil Stamping Machine is used for logo, trademark, Serious Number, production date in printing by hot stamping technology, also used for hot pressing, hot welding, hot sealing, hot embossing, hot impressing, hot forming, hot stamping,

Available material: Plastic, rubber, solid wood, cable, wire, Chinese chess, leather, bamboo and etc, which are made of various commodities

Character

Microprocessor control and pneumatic component drive for easy operation

Flat and cylindrical shape stamping both are available

Manual/semi-auto/auto operation available

With function of foil winding and foil collecting

Stamping pressure/temperature/speed all adjustable

Structure solid and durable

Pneumatic driven is durable and stable in movement

No impact during the working to guarantee the stamping effect

Two buttons triggered to run for safety purpose

Assembled the pedal Switch for convenient operation

Have function of self-counting in outputting

Mainly parameter

Model

KLS-1500

Heating plate size

150*210mm

Working plate size

170*220mm

Pressure

100-500kgs

Maximum pressure

800kgs (made-to-order)

Stamping Stroke

300-500mm

Max. Work piece height

200mm

Piston Diameter

63-125mm

Air pipe

3/8PT

Air consumption

10L

Net Weight

180kgs

Heating power

1500w

Power

110/220V 60/50Hz

Max. Printing speed

1000 PCS/hr

Stamping pressure

Within 800kgf

MFR: KEEPLEADER™ have modified and designed Heat Press Printing Hot Foil Stamping Machine for our customers’ unique and special requirements, please contact KEEPLEADER™ for updated details

Detailed Images

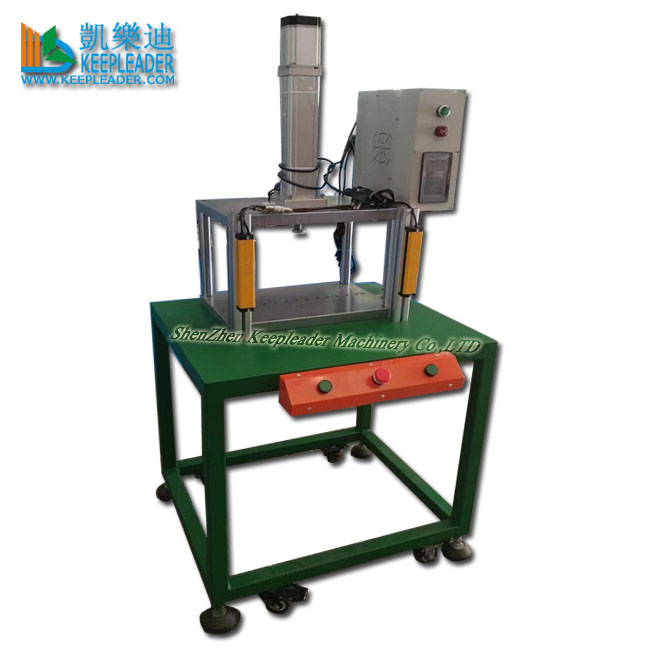

Heat Press Printing Hot Foil Stamping Machine

In quick imprinting process of decoration,coding,marking and advertisement, Heat Press Printing Hot Foil Stamping Machine features a reliable industrial processes, such as: dry process,no solvent,fumes, fast and accurate, fits in most of the application,low set-up time. High quality print image,no programming required, easy to use, prints on plastic, wood,fabric, rubber and leather, four columns sliding shrank to apply axial loading pressure, servo motor driven and control melting depth for accurate and precision execution, digital setting parameters and monitoring the working condition

Function illustration



Heat Press Printing Hot Foil Stamping Machine has options of pigment film decration, either or solely applying color-darken imprinting

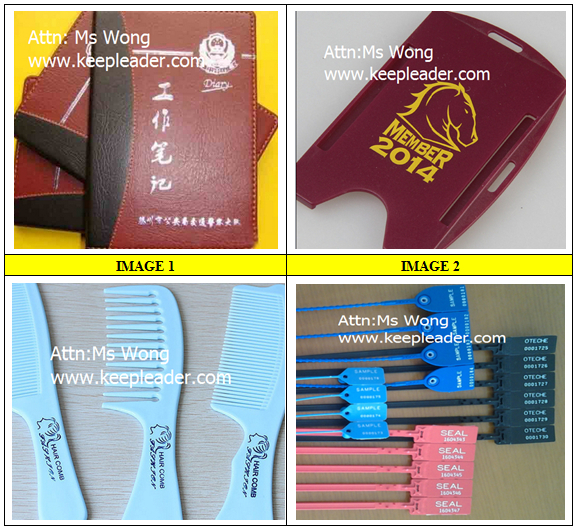

Product uses



Heat Press Printing Hot Foil Stamping Machine can imprint products made of leather, wood, rubber, fabric, plastic to achieve permanent indenting,embossing of #1: deep, lasting mark that will not release and #2: very fast circle which reduces costs for high volume jobs #3: and except for machine itself, without future consumption
