Hot Stamp Wire Marking Machine for Wire_Cable_Sleeve Hot Stamping Marker of Cable_Wire Electric Hot Foil Stamping Mark Imprinter

Hot Stamp Wire Marking Machine

Hot Stamp Wire Marking Machine

Hot Stamp Wire Marking Machine features prominent characteristics, such as No.1: automatic foil feeding and rewinding spool equipped;No.2: stroke adjustment to ensure maximum production rate basing on wire/cable size;No3: Large selection of character sizes and foils;No.4:supportive mechanism of quickly changeover legend block of imprinting;No.5:standard V-anvil to going through wire/cable for convenient alignment;No.6:closed loop integral temperature controller;No.7: quick-changeover fixture system minimizes set-up time and maximum printing speed;No.8: Prints horizontal or vertically along the wire;No.9: Capable for printing wire and cable with connector or terminated ends;No.10: integrated wire metering device of automatic feeding

Product description


Hot Stamp Wire Marking Machine

Application

This Hot Stamp Wire Marking Machine is used for printing production date, identification code and any other numbers, letters, and specified symbol on wire, cable, PVC tube, binding wire, and different diameter tubes, pipes, cable, wires

Parameter

Model

KLS- W901L

Voltage

220v/50hz, single phase

Power

1000w

Pressure

90kgs

Temperature

0-999

Stroke distance

50mm

Printing width

0-9 (number or letter)

Printing speed

60t/s

Wire size

0.040″ – 0.300″

Feeding mode

Paper automatic winding

Dimension

900*400*800mm

Net weight

100kgs

Features

Wire can be pulled through by hand or using production machinery

Marks identification codes in virtually any print interval

Single wire guides handles a range of wire diameters reducing setup time

Simple control and operation

Digital temperature control with feedback loop

Rugged, heavy duty construction for the production environment

Micro-computerized system to control the temperature in precision

Adopt pneumatic driven system to get even and reliable pressure

Automatic winding and amending deviation

Stamping pressure, temperature, timer, stoke distance and wire diameter are all optional

Advantages

High quality:

KEEPLEADER™ Hot stamp wire marking machine produces durable, clear identification markings on your wires for cable assemblies, KEEPEADER digits roller or printing inserts are laser engraved with a concave face ensuring that complete letters are printed clearly onto the smallest wire diameters

Dwell time of stamping can be modified to ensure high quality making on wire jackets with a variety of different material characteristics

Higher productivity:

Your operators will be able to permanently mark wiring many times faster that using KEEPLEADER™ digits roller die system as compared to loose dies that are difficult and time consuming to install and easily misplaced, increasing productivity means lower costs for your product and faster delivery times for your customers, lower costs and higher profits can pay for the investment in the KEEPLEADER™ hot stamp wire marking in as little as six months

Flexibility:

The KEEPLEAER Hot stamp wire marking machine has been designed with maximum flexibility in mind, identification codes and wire anvils can be changed in seconds, minimizing downtime and saving your labor costs, the user also very easily add a graphic, logo or other nonstandard character to an automatic dialed digits roller and add it to roller die system easily, this extra flexibility will differentiate the user from competition, bring more jobs to shop

Turn-key solution

KEEPLEADER™ is providing the user with a complete solution, it is designed to be a turn-key product with all the necessary parts, components, consumables and software, the simplifies procurement both now and in the future, as the user require hot foil paper and other consumables

Hot Stamp Wire Marking Machine takes custermization on qty of rotary character discs, Font size, wire-going fixure and auto meter feeding,that demand verification prior to order

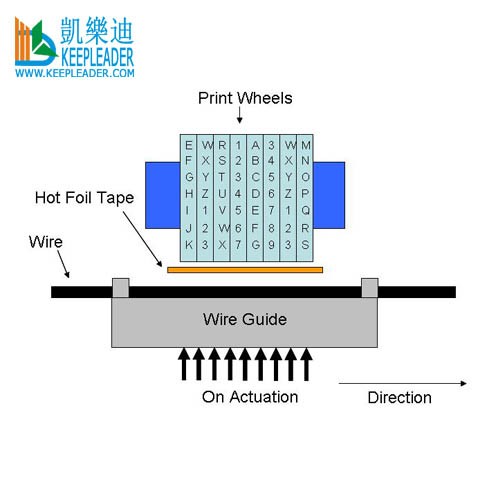

Function illustration



Hot Stamp Wire Marking Machine

Hot stamp wire marking machine is an electron-pneumatic thermal stamping unit used for marking wire and cables, this hot stamp wire printer produces high-quality,permanent and abrasive-resistant identifying marks, advantages include user-friendly handling, flexibility, cost-effectiveness, easy legibility, lasting and oil resistant labeling, non-dislodge-able, and non-protruding markings, this Hot stamp wire marking machine operates using the hot stamping method with wear-resistant printing foil

Prodcut uses


Hot Stamp Wire Marking Machine

Hot Stamp Wire Marking Machine takes usage wear-resistant printing foils in a variety of colors and quantities, keepleader’s hot stamp wire marking machine will work with standard and customized character discs and fixture to gratify versatile printing, the marked wire/cable/sleeve/shrink tubing attain sustainable, easily legible, long-lasting, oil-resistant, non-protruding imprinted codes, that will never dislodge

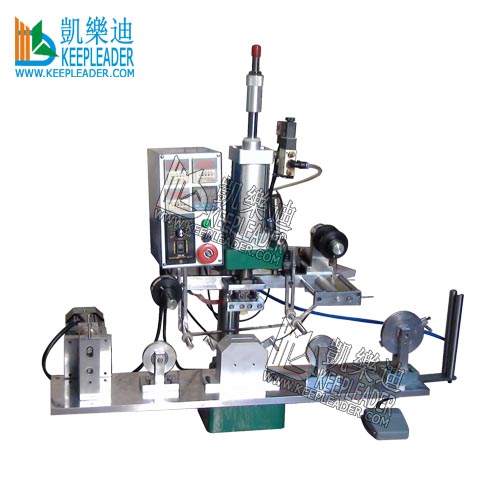

Detailed Images


Hot stamp wire marking machine

Hot Stamp Wire Marking Machine approaches designation of economical and high quality marking of wire, cable, sleeve, tubes and tubes made of plastic, rubber, the combination of legends and respective sizes can be selected freely within the specified ranges, this hot stamp wire marking machine suits for marking thermoplastic materials, but mainly engages in insulated surface of power wires because of special numbering character wheels, during the process, the preheated rotary character discs imprint the precision-engraved characters by pressing the pigment foil onto the surface of wires, the concave form of characters take exactly contouring imprints, that match to the front-faced wire/cable surface, the precise adjusting options for the stamping pressure, melting time and marking temperature allow to recall every result

Contact Us


Whether you are looking for individual identification of cables and wires, harnesses or any other function, keepleaders permanent, non-abrasive Hot Stamp Wire Marking Machine will offer the widest range of uses and application for making cable, wire, and shrink tubing, our experienced engineers can work out solution of not only handheld but also bench-top wire marking machine tools for your specific needs, now, you enter the right place to gain reliable solution at affordable price for your individual wire identifying process
