PVC Cylinder Box Making Tube Forming Auto Gluing Ultrasonic Welder of APET_PETG Round Boxes_Cylindrical Containers Sealing Line

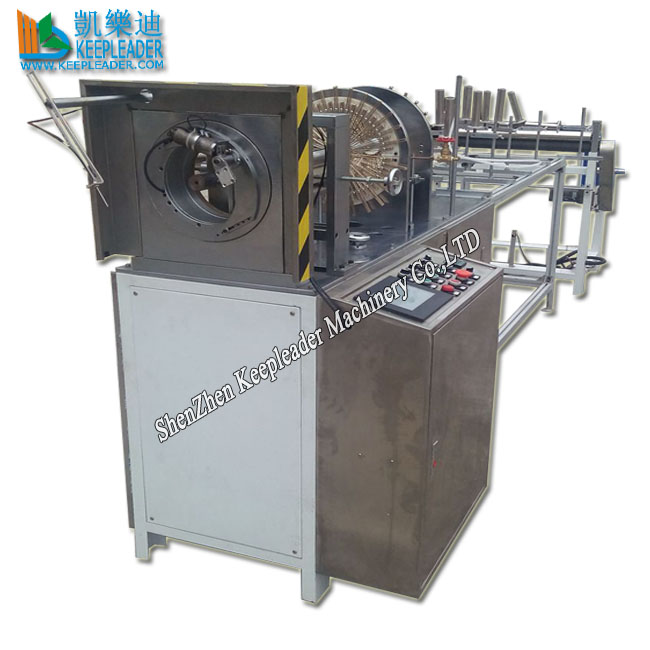

PVC Cylinder Box Making Tube Forming Auto Gluing Ultrasonic Welder

PVC Cylinder Box Making Tube Forming Auto Gluing Ultrasonic Welder combines ultrasonic bonding and auto spray gluing function in one machine, that is free-selection basing on customers’ preference, the material takes auto feeding in roll, goes through the workable line to form tube, and cut into pieces at specified length, the finished cylinder tubes enters into edge curling prior to complete bottom sealing, the lid/Cover of cylinder containers accomplish production in a separated production machine, likely vacuum thermal-forming machine, either or heat press forming machine, the vacuum thermal-forming machine requests cutting pieces, but heat press forming machine have not this consideration, however, its its universal application gains popularity in factories, for example, in packaging blister production, what demands more depth in forming, vacuum thermal-forming machine attains preference

Product description

Application:

PVC Cylinder Box Making Tube Forming Auto Gluing Ultrasonic Welder is automatic plastic rolled sheets forming to make cylindrical box, this machine is just to make two end open tubes at its side sealing by ultrasonic welding or gluing, also can coupled with hole punching unit to make mounting holes in making carrying cylindrical box, the plastic rolled sheet can be clear, or printed PVC, APET, PETG, PP and etc. the manufacturer can choose KEEPLAEDR’S plastic cylindrical box bottom, lid forming, cutting machine and bottom sealing machine to composite a whole production line, often used in out packing of candy, gifts, toys, stationery, umbrella, fishing tools

Parameter

Characteristics

The feeding speed can reach 30 meters per minute

Simple operation and convenient maintenance, one operator is ok

PLC controlling system, build in servo motor driven feeding unit

Cutting and trimming edge completed in one cycle

Adhesive spraying device to glue the overlap evenly, no scratches and looks clear

The cylinder length is optional, the cylinder diameter can change though different size molding

Ultrasonic sealing and gluing in one machine

Full automatic proves from rolled sheet to separated cylinder in rated size

With Photo electronic counter

PVC Cylinder Box Making Tube Forming Auto Gluing Ultrasonic Welder performs optimal configuration in cylindrical container tube making, likely programmable logic control with touch screen, automatic feeding material in roll, adjustable diameter and length of finsihed cylinder container tube, installed spraying glue in seam sealing and ultrasonic bonding in free-option, photoelectric tracking cutting length in precision of within tolerance:0.05mm, synchronous punching device to produce hang holes at top two sides of tube, integrated with auto conveyor belt in automatic production line

Product uses

PVC Cylinder Box Making Tube Forming Auto Gluing Ultrasonic Welder grasps attention among the factories, which engage in cylindrical container packaging production because of its automatic completion and flexible arrangement, versatile sizes of cylindrical boxes complete production in large output capability, the thermal plastic material usually includes PVC,APET,PETG in transparent cylinder boxes packaging

Contact Us

PVC Cylinder Box Making Tube Forming Auto Gluing Ultrasonic Welder can definitely improve your production efficiency and save cost at affordable price, so far as to you intent to organize a manual production cycle because of its flexible configuration, that accept free-selection in your individual production of solely container tube making, the end users can infinitely extend their output capability with multiple procedures of edge curling and bottom sealing from qty 1 free-standing machines to dual, triple either or more for matching productivity of each procedure,keepleader, we can provide you with one-stop service, try to consult with our expertise without any hesitation in optimization
