Plastic Cylinder Box Making Automatic Edge Curling Machine of PVC_PET Cylindrical Tube Container Rim Forming_Crimping Equipment

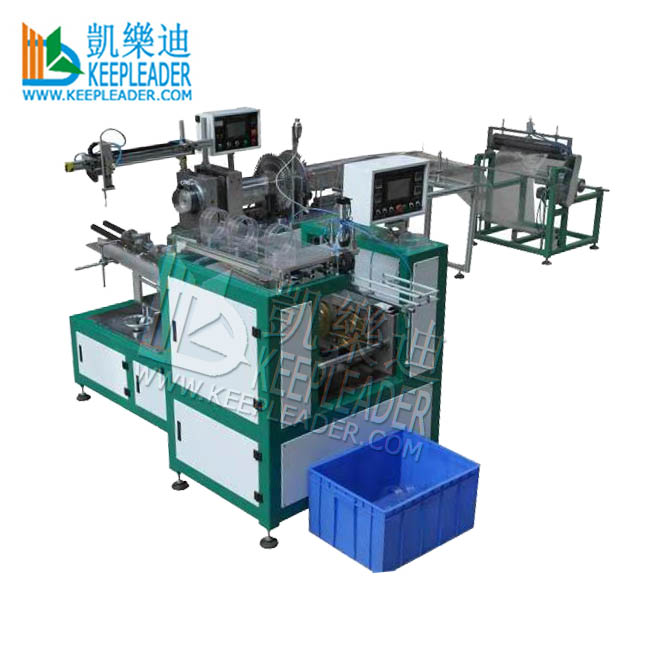

Plastic Cylinder Box Making Automatic Edge Curling Machine

The factories adopt Plastic Cylinder Box Making Automatic Edge Curling Machine to achieve tube edge crimping in PVC,APET,PETG and other transparent thermoplastic cylindrical box making, that accept round, oval, trapezoidal shaped in versatile sizes of within 200mm, this edge curling machine usually integrates onto automatic production line with plastic cylinder tube forming machine, cylinder bottom sealing machine, and cylinder box lid/cap making machine, the productive procedures win the flexibility in free-combination basing on end-users individual production

Product description

01: Parameter

02: Application

Widely used in cylindrical box edge curling, which is made of PVC, PP, APET, PETG and other thermoplastic material, the box can be shaped round, oval, trapezoid, which are popular in field of tea tube edge curling, candy tube edge curling, Chocolate tube and any other cylindrical box packaging

03: Highlighting

Suitable round, oval, trapezoid cylindrical box

Well-known servo motor and, pneumatic assembles

Precision linear bearing

Two sides of actuators are well heated to soften the cylinder edges in good curling condition

Highly accurate, the tolerance is within 0.1mm

Both sides can do curling at the same time

2pcs in a circling process

Can combine with cylinder box forming machine as a automatic production line

Laser detector and automatic do sides alignment

The machine built with PLC, and monitor display to record the whole process

Detailed images

Plastic Cylinder Box Making Automatic Edge Curling Machine pioneers automatic edge forming process in PVC,PETG,APET Cylindrical box producing,additional salient advantages covers many fields, such as No.1: machines’ characters themselves: programmable logic control with touch screen. Servo motor driven axial loading pressure, fast and accurate alignment, automatic tube feeding and crimped tube unloading, quickly-changeover rotary actuator, adoptable configuration of versatile sizes; No.2: keepleader’s expertized service, we provide the whole solution from your concept to end finished cylindrical box packages, so much as that after-service, contracted maintenance;No.3: wide ranged configuration: Plastic Cylinder Box Making Automatic Edge Curling Machine gains capability of crimping edge of tubes length: 80~300mm,diameter:40~200mm, and material thickness: 0.25~0.5mm,awesome tolerance within 0.05mm in alignment, no scratch, twist and continuous height

FAQ

01: How dose KEEPLEADER pack the machine?

Ans: our machine is packed into the plywood case, this machine is installed, don’t need further mounting process after you receive

02: How to use the machine?

Ans: KEEPLEADER will provide you user manual and train video

03: If the machine need air compressor?

Ans: Yes, this machine need air compressor, or your factory already have a air supply

04: Dose the machine power voltage meet buyers’ factory power source?

Ans: The power supply can make to order, there are usually two type: 380v,50hz or 220v*60hz of 3 phase or its 1 phase

05: if KEEPLEADER make die / mould?

Ans: yes, one machine will equip with 1 set of mold, which will designed by received samples or drawing

Company overview

Plastic Cylinder Box Making Automatic Edge Curling Machine completes automatic production of PVC,PETAG,APET cylindrical tube edge crimping at specified angle, the formed tubes start feeding procedure from holding cartridge, the servo motor driven system holds the auto aligned tubes into working position under axial loading pressure, the rotary plate tightly folding down the rim inside to form a stopping edge, the clamping system open, the suction robotic rods grip the edge-formed cylinder tube for unloading, that will transfer to the automatic conveyor belt for next processing procedures, this Plastic Cylinder Box Making Automatic Edge Curling Machine can automatic displace the clamping width to satisfy versatile length of cylinder in edge curling process, different diameters of cylinders designate circle grasping line in one fixture disc, the operator accesses touch screen to set the parameter, operate and monitor the working condition, the whole operation reaches optimal convenience

Product uses

Plastic Cylinder Box Making Automatic Edge Curling Machine accomplishes vital steps of edge/rim crimping, that will organize a whole production line with tube forming, bottom sealing and lid/cap making machine, the finished cylindrical boxes widely appear in the industrial packaging of gift, food, toy, chocolate, electronic so far as to cosmetic and stationary and other small, light weight commodities for protective packaging and visual inspection

Our service

01:Pre-sales service

Help you find the suitable machine for your production

Provide the correct solution

Confirm the details of your purchasing

Provide proper quotation

Instruct payment process

Instruct visit for on-site training if any

02:After-sales service

Contact your nominated forwarder or arrange the shipment by our forwarder

Provide the picture of finished machine and testing video

Inform the balance payment

Provide the user manual and train video

Timely answer any question from buyer

Timely monitor the shipment status

Contact Us

Majority of Factories determine priorty in selecting Plastic Cylinder Box Making Automatic Edge Curling Machine as their cylindrical box making of tube edge crimping, particularly for the production in bulk, which can solve the bottle neck problem to increase productivity at lowwest return, keepleader, we concentrate transparent packaging machines many years, that encounter a lot of practical problems,however, lucky efforts step to step go ahead to today's all-aspects' satisfaction, we continue to take efforts to gain better in best, so far as to possible fluctuation and indeterminacy in the future, because that we believe our existance in value antributes respect and expectation, herein you can have a try to find what more we can do for your production
