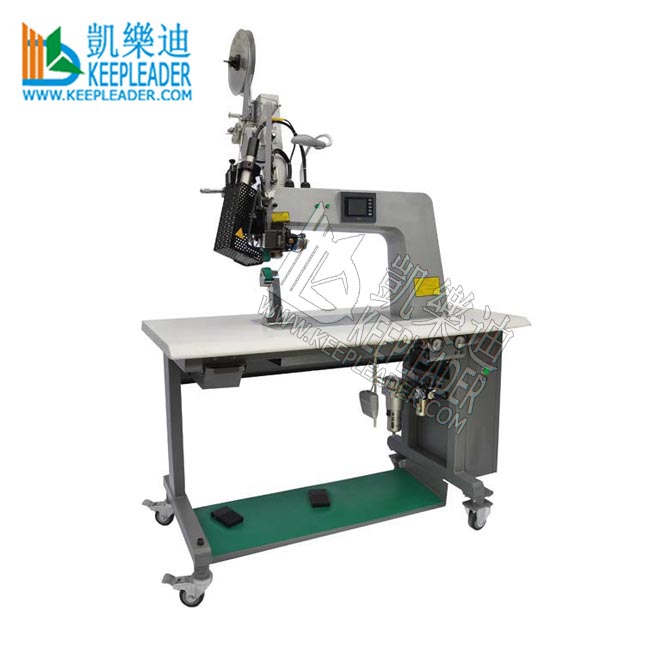

Hot air seam welding machine

Application

 used for weld raincoat, sports cloth, outdoor jacket, skisuit and related

Mainly introduction

 Hot Air Seam Sealing Machine has unique advantage in inflatable products made of membranes structure, which is total different with high frequency welding and hot melt welding technology, the hot air is blew between the sealing surface, under necessary suitable pressure to get perfect welding effect, PVC, TUP material are all available, which are made to water polo, water drum, grass ball, inflatable swimming pool, large inflatable tents, inflatable boats, rubber boats and fishing boats and etc

Character

Suitable for any size of inflatable products made of PVC,TPU

PLC, Visible to operation, and convenient to reset parameter

Self-control temperature, the tolerance is within 2 degree

According to ergonomic design of dual-pedal control

Work around the clock, higher production efficiency

Special design of heating tube, hot air is filtered without moisture

Super-power design of large torque

Parameter

Model

KL-280

Power

2800w

Frequency

AC 220V,50hz

Temperature

0 to 700

Sealing speed

2 to 18m/min

Air pressure

0.03 to 0.2mpa

Pinch roller

25mm(optional)

Diameter of gun mouth

24mm/27mm (optional)

Roller stroke

18mm to 22mm

Overall size

1350*730*1900mm

Net weight

120kgs
