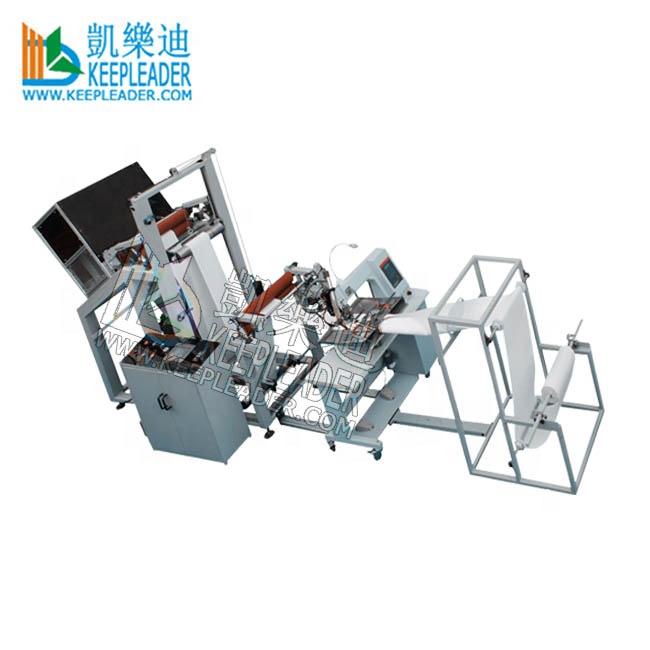

Filter bag seam hot air sealing machine of Automatic Filter bag welding Hot Air Seam Sealing_Welding

Application

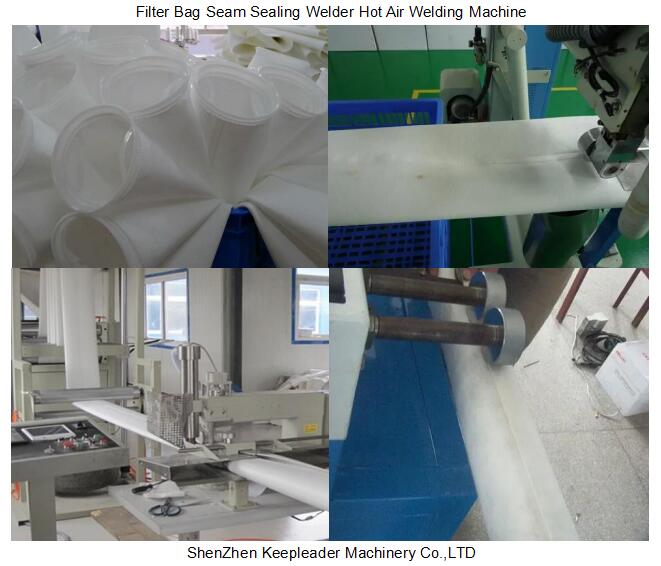

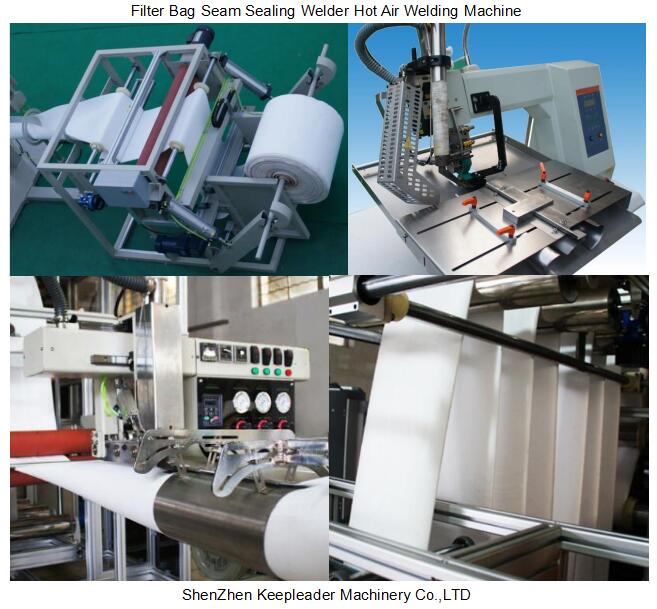

Filter bag hot welding machine is a kind of hot air welding, compressed hot air to melt the joining surface in reaching its melting point, under the roller clamping force to weld together, the rollers is driven by servo motor to form a forwarding pulling, the completed filter tube is slipped out along with leading rail, Filter bag hot welding machine is ideal for environmentally filter bags without additives, flux and any other auxiliaries, suitable for sealing fabric, polyester non-woven fabrics, polypropylene non-woven fabrics, PPS and other membrane instruction material containing PVC 20% up

Features

Steel frame, Sliding rail instruction, stable output

Digital Panel can display the parameter is easier for operation and debugging

Compacted design can save the working room

Can satisfy the diameter: 120mm up filter tube sealing endless

With auto protection power circuit for safe operation

Parameter

Model

KL-280

Application

PE, PP and PPS

Maximum heating speed

15 meters / minute

Speed scope

3m / Minute, 15m / minute

Diameter of filter bag

120mm to 300mm

Power

2.8kw

Driven motor

200A

Hot air temperature

30 to 600 degree

Thickness of material

0.5 to 2mm

Power supply

220v/ 50hz

Torch

More than 30N

Air compressor

1P

Welding pressure

1 to 8 bars

Gear Ratio

Decelerate ratio: 1:40

Overall size

1.1*1*1.5

Net weight

500kgs

Gross weight

600kgs
