Plastic Welding Cutting Embossing Fusing High Frequency Machine for PVC_PET_GAG_EVA_PU_TPU Flexible Products Making HF_RF Welder

Plastic Welding Cutting Embossing Fusing High Frequency Machine

Plastic Welding Cutting Embossing Fusing High Frequency Machine

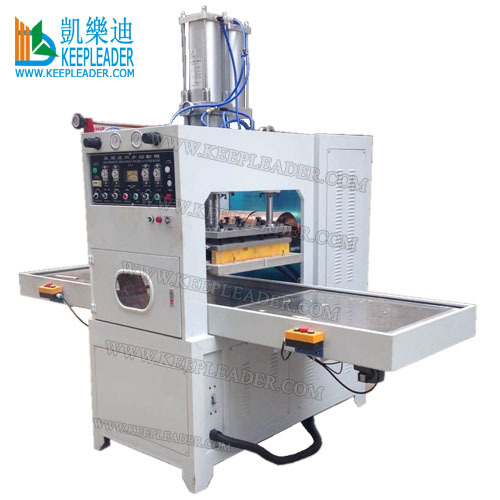

Plastic Welding Cutting Embossing Fusing High Frequency Machine is equipped with automatic shuttle tray that can weld the products in turn, it depends on customers’ demands, different molds can be place on the upper electrode, because of the overhead electrode, operators can promptly orient the position of products to eliminate the risk of errors, it has a large tray space that can make it easy for operator to change products, hence, it will increase the working efficiency, the operational method is to adopt sliding table for feeding, it increases the protection for operators, the accuracy of in and out of sliding table is high, the speed is fast and thickness can be adjusted according to product area

Product description


Plastic Welding Cutting Embossing Fusing High Frequency Machine

Mainly application

Plastic Welding Cutting Embossing Fusing High Frequency Machine Applied for double sides blister packaging for APET, PETG, GAG, PVC, welding and cutting of soft crease box making, toothbrush blister packaging, mobile clearer, belt, watchband, featured in automatic welding and cutting of blister packaging and paper card.

Character

Wide using in environmental protection plastic packing ,toothbrush packing,

environmental production dress-glue products with APET,PETG,GAG materials,

Equally can process any materials needing welding and cutting simultaneously.

double-way automatic slipway, back-forth or continuous delivering the mould,

Accurate-orientation, error±20um.

Adjustable cutting pressure 1-50 ton, stable and reliable in output, firm in structure.

Adopting high sensitive anti-sparkle device NL5557 to avoid damaging the mould efficiency.

Operation mode: oil pneumatic or pure-pneumatic.

Technique specifications

Model

KLR-8000WT

Power

8000W

Voltage

220V/380V   50/60HZ

Frequency

27.12MHZ

Input power

15KVA

Rectifier

SILICON DIODE

Oscillation tube

7T69RB

Max pressure

30T

Gap between electrodes

200MM

active horn

150MM

Size of upper electrode

350*500

Size of lower electrode

350*500

Range of temperature

30~200°C Adjustable

Welding time

0~10S Adjustable

Productivity

Equal or less 5000times/8h

Net weight

1.6T

Overall dimension

1920*1200*2060

 Standard equipment:

Name

Origin

Brand

Air driven components

Taiwan

Airtac

AC contactor

Korean

LG

Relay

Japan

Omron

Electron Tube

Japan

Toshiba

Time controller

Taiwan

CKC

Note: The parameter herein stated is manually measured, the actual Plastic Welding Cutting Embossing Fusing High Frequency Machine has possibility in little difference, if have crucial demand in its application, please double check with our sales, only paper confirmed will be regarded as contracted obligation

pls contact  KEEPLEADER™   for more info and tech assistance

KEEPLEADER™   has designed and modified machine to accommodate our customers' unique and special requirements

and advise us under info

01: the picture of your pkgs

02: its material and its max size

Detailed Images


Plastic Welding Cutting Embossing Fusing High Frequency Machine

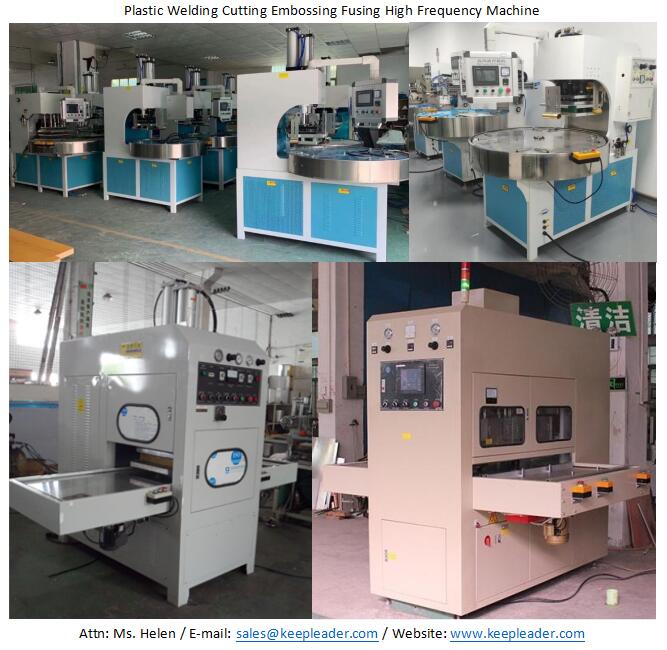

Plastic Welding Cutting Embossing Fusing High Frequency Machine adopts two automatic shuttle trays to localize in electromagnetic field,that can efficient improve productivity, can be placed molds on the upper electrode to promptly orient the position of products to eliminate the risk errors, has large tray space that can make it easy for operators to change products, design fresh function to operate with high stability, gratify versatile process, likely sealing, embossing, stamping, cutting and forming in versatile production and equip with high sensitive ARC suppressor

Product uses


Plastic Welding Cutting Embossing Fusing High Frequency Machine

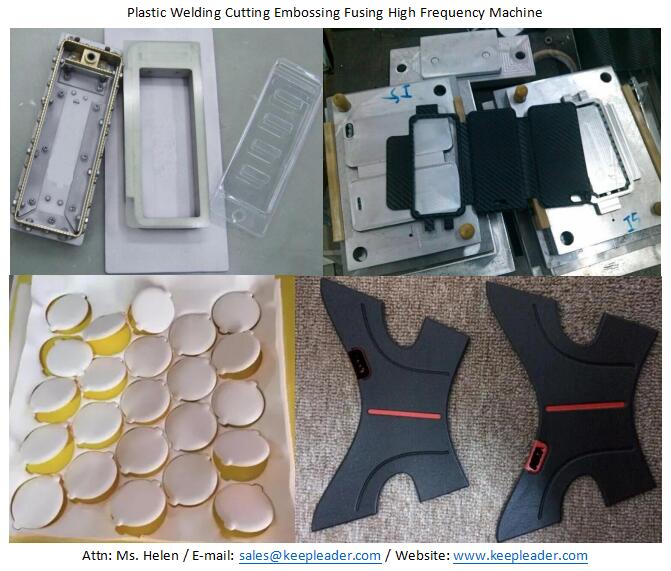

Plastic Welding Cutting Embossing Fusing High Frequency Machine of dual automatic shuttle trays can efficient protect the operators and improve the productivity, Two sets of fixtures are driven to feed the welding objects in electromagnetic field with high speed, high efficiency and high accuracy, shuttle tray type is suitable for customers who need mass production, that covers the plastic layers sealing, embossing,stamping, cutting of synthetic leather, Film, fabric cloth, Polymer sheets containing PVC more that 30% and other PU, Nylon, EVA, PEVA,PET,PETG etc, the majority of applicable process in industrial production appears in manufacturing of car bench layers, raincoats, umbrellas, footwear, logo printing, medical treatment bags, inflatable products, blister packaging and curtains sealing, two operators participate in alternative working procedures, one operator can weld the material while the other operator placing the fabric on one side,alternatively welding could improve the produce efficiency
