Radio Frequency Heat Press Embossing High Frequency Welder for PU_TPU_EVA_GAG Products Making HF_RF Welding And Cutting Machine

Radio Frequency Heat Press Embossing High Frequency Welder

Radio Frequency Heat Press Embossing High Frequency Welder has HF power output ranged 5kw, up to 35kw for various size plastic film process in bonding, embossing, stamping and cutting, its automatic shuttle trays are constructed at two sides for alternative working in convenient loading and unloading to enhance the efficiency, this standardized HF welder attain its gratification because of advanced majorities in consistent quality, clean manufacturing,liquid, air,or solid containment, customized shapes and attachments, seam stronger than the base material, shear tear/splitting resistance

Product description

Radio Frequency Heat Press Embossing High Frequency Welder

Mainly application
Radio Frequency Heat Press Embossing High Frequency Welder Applied for double sides blister packaging for APET, PETG, GAG, PVC, welding and cutting of soft crease box making, toothbrush blister packaging, mobile clearer, belt, watchband, featured in automatic welding and cutting of blister packaging and paper card.
Character
Wide using in environmental protection plastic packing ,toothbrush packing, environmental production dress-glue products with APET,PETG,GAG materials, Equally can process any materials needing welding and cutting simultaneously. double-way automatic slipway, back-forth or continuous delivering the mould, Accurate-orientation, error±20um. Adjustable cutting pressure 1-50 ton, stable and reliable in output, firm in structure. Adopting high sensitive anti-sparkle device NL5557 to avoid damaging the mould efficiency. Operation mode: oil pneumatic or pure-pneumatic.
Technique specifications
Model	KLR-8000WT
Power	8000W
Voltage	220V/380V 50/60HZ
Frequency	27.12MHZ
Input power	15KVA
Rectifier	SILICON DIODE
Oscillation tube	7T69RB
Max pressure	30T
Gap between electrodes	200MM
active horn	150MM
Size of upper electrode	350*500
Size of lower electrode	350*500
Range of temperature	30~200°C Adjustable
Welding time	0~10S Adjustable
Productivity	Equal or less 5000times/8h
Net weight	1.6T
Overall dimension	192012002060

Standard equipment:

Name	Origin	Brand
Air driven components	Taiwan	Airtac
AC contactor	Korean	LG
Relay	Japan	Omron
Electron Tube	Japan	Toshiba
Time controller	Taiwan	CKC

Note: The parameter herein stated is manually measured, the actual Radio Frequency Heat Press Embossing High Frequency Welder has possibility in little difference, if have crucial demand in its application, please double check with our sales, only paper confirmed will be regarded as contracted obligation

pls contact KEEPLEADER™ for more info and tech assistance

KEEPLEADER™ has designed and modified Radio Frequency Heat Press Embossing High Frequency Welder to accommodate our customers' unique and special requirements

and advise us under info

❶ the picture of your pkgs

❷ its material and its max size

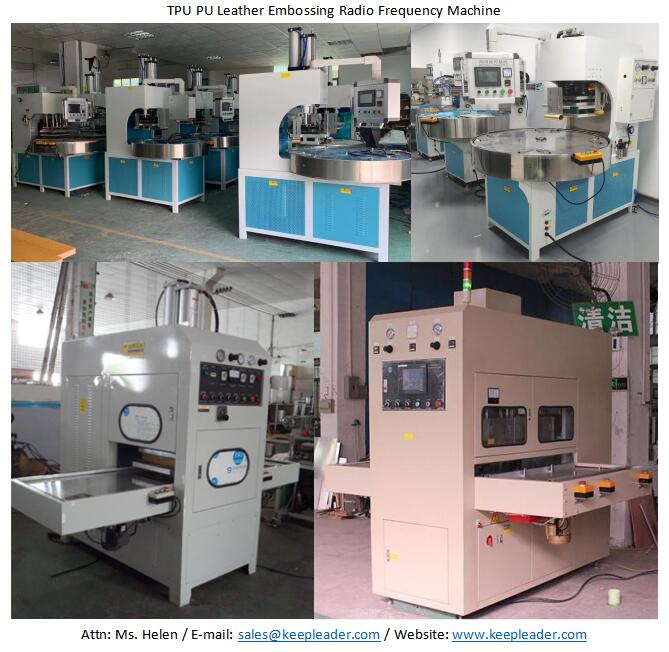

Machine Details

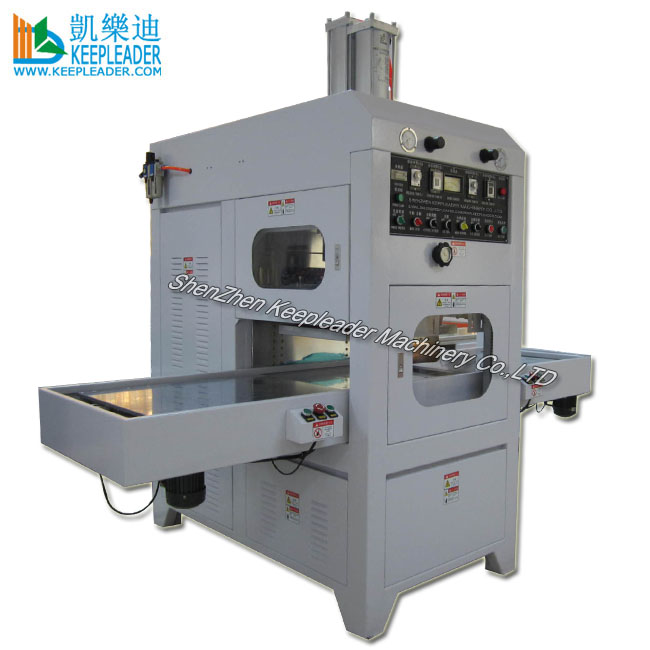

Radio Frequency Heat Press Embossing High Frequency Welder sorts to free-standing type of pneumatic driven automatic shuttle tray High Frequency machine combined with function of welding and cutting that also varies from front-loading type, automatic rotary table indexing mode and automatic travelling type, of which versatile construction are intended for various productive scenarios, but all of them have the similar production procedures, the standardized five steps in 1st: loading parts: joint member is placed into the welding machine to undergo HF heat sealing;2nd: pressure application: through electrode, pressure is applied to the joint membrane, pressure describes force applied to an area, in this case, a fixed electrode at the bottom requires an actuator to drive the top electrode downwards with the prescribed force;3rd:Electrical field application: an electrical field is applied for designated amount of time while pressure is maintained throughout the process;4th:Holding pressure: as pressure is continually applied along with the electrical field,the portions of the joint member directly in contact with the electrode will melt, the liquid polymers will then diffuse into each other at the respective points of contact;5th:unloading parts/cooling: this process engages through a chemical process of diffusion and solidification to weld the members together, at this point, after the joint cools down, the upper electrode is now brought back and parts are unloaded

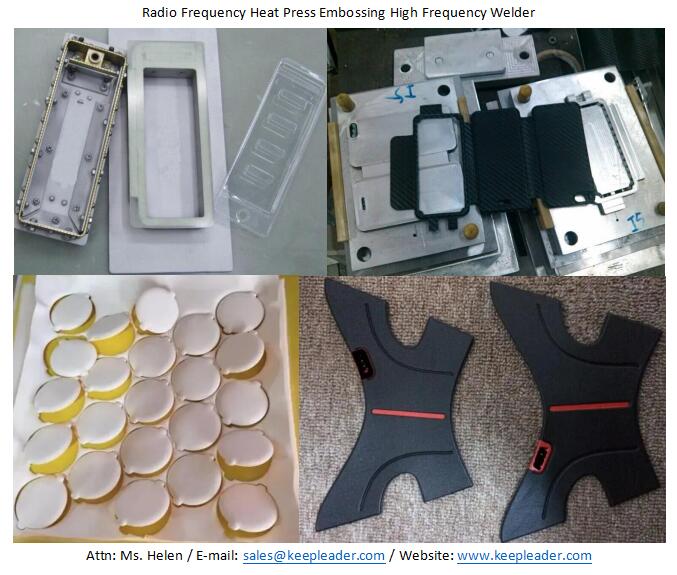

Product uses

Radio Frequency Heat Press Embossing High Frequency Welder is mainly used for thermoplastic film welding,embossing, stamping of various PVC,PET,GAG,EVA, likely blister packaging, that includes upper and lower double blister,blister and cardboard and etc, all kinds of car inner decoration,cushion,logo, stationery, stickers, toys,plastic cover, blowing rain sails,leather bags, nameplate,sun visor, all kinds of bags, such as a thermal processing, concave and convex decorative pattern design of the switch of repression that are polymer Film industrial process in productive fields of medical supplies industry, clothing making, plastic packaging industrial, car interior decorative industry, inflatable toy industry, stationary products making and other plastic products processing

After-sales serice

After purchasing at KEEPLEADER™ is first step of our after-service, all of machines at KEEPLEADER™ has one year guarantee, we provide free samples for defected parts to do replacement except for human damage, under information for your notice

01: KEEPLEADER™ always posts the new technical file in our homepage that can help our client in new technical information of machines’ design, character, application, operation, maintenance, and related, KEEPLEADER™ also welcome our clients feed back the machines’ working condition that can get one to one service

02: If the machine you purchased has any defects, please contact sales representative at KEEPLEADER™ , we will assign our experienced engineer analyze your case and provide technical support, in case of damaged parts that cannot repair,KEEPLEADER™ will provide a new parts to replace the defect

03: For any replacement and maintenance, KEEPLEADER™ has user manual and training video

04: KEEPLEADER™ can go to oversea for on-site training

05: KEEPLEADER™ can provide electric diagram in necessary

06: Remote training is acceptable at KEEPLEADER™

Radio Frequency Heat Press Embossing High Frequency Welder offers multiple advantages over traditional electric heated melting machine, this process also offers a more versatile and efficient welding process for your diverse welding,stamping embossing needs, save time and money whenever you select this cost-efficient HF welder,do you need help selecting the best welding technology for your application? Talk to our KEEPLEADER’s experts,and we will guide you on the welding technology that will deliver maximum results for your project, let us arrange a trial process with your prototype material, then offer guidance on the your working recipes that won’t disappoint,we offer high-performance welding solutions to complete polymer industrial process in flexible products’ treatment, contact us today to find help in determining the technology and HF welder for your application
