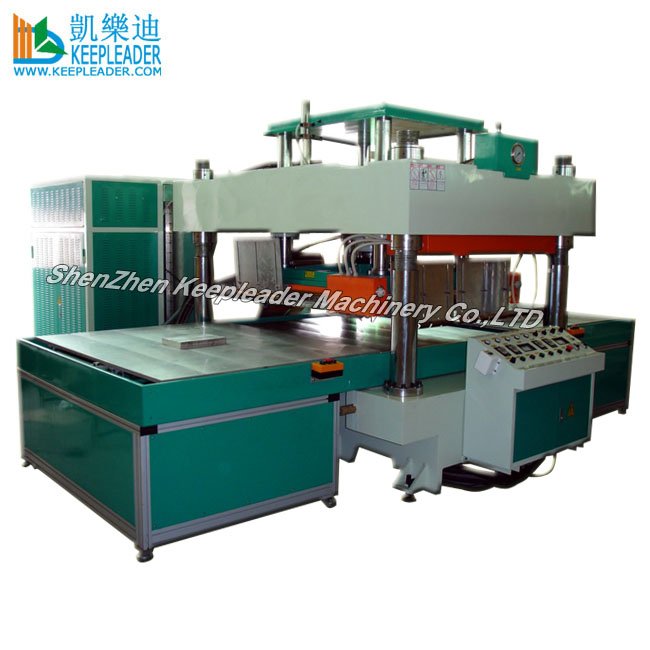

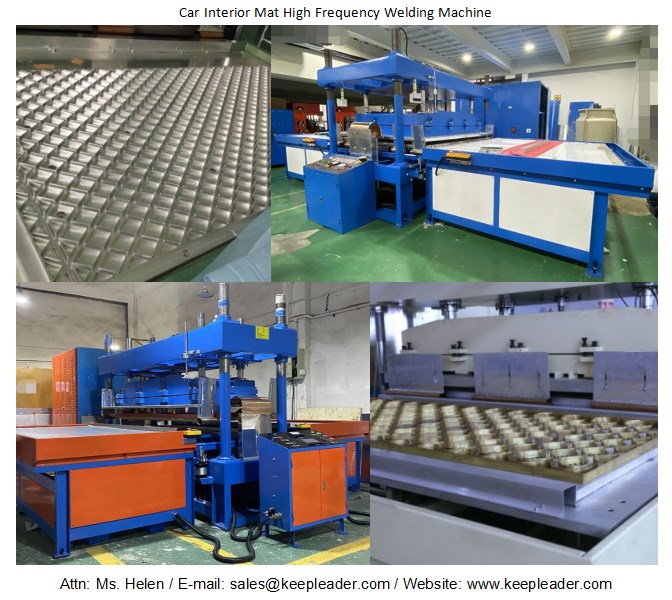

Car Interior Mat High Frequency Welding Machine of Anti-Decubitus Mattress_Seat Cushion_Floor Mat Radio Frequency Bonding Welder

Mainly application

Used for PVC and PVC 30% up or leather of big size welding, cutting and embossing, in application of inflatable products, swing ring, motor cycle cushion embossing, carpet, trademark, raincoat, stationary, logo, and other special double size blister packing

Character

High Q value oscillation tube

The high frequency complies with international standard: 27.12 MHz

The machine can keep static for power sudden failure

High sensitive anti-sparkle device NL 5557 to avoid damaging the mould.

European-model high frequency vibration barrel, more reliable and stable in output

Automatic thermostat to keep the temperature at best performance in welding

High precision high frequency regulating knob for visible control

Low voltage control panel for safety purpose

Anodized mould and tooling for longer life-span

Top amounted cylinder for vertical pressing, which is more uniform pressure

Over current protection circuit to avoid burning the oscillation tube

Power ranges 5kw up to 10kw for various welding size

The welding electrode is screw fixed, which is easy replacement

High frequency shield to avoid omission is optional

Giving pressure by level elbow joint, which can save the strength

Stroke distance and horizontal of electrode are adjustable

One oscillation vibration system control double working position

Thick steel plate bracket, more steady for giving pressure

Imported famous brand electronic and pneumatic components

Mainly parameter

Model

KLR-15KW

KLR-25KW

KLR-35KW

Power

15KW

25KW

35KW

Power supply

380V   50/60HZ

Frequency

 13.56MHZ

Input power

25KVA

40KVA

50 KVA

Rectifier

 SILICON DIODE

Oscillation tube

8T85RB

8T25RA

8T87RB

Max pressure

1000kg

2000 kg

3000 kg

 Gap of electrodes

150MM

Active horn

 100MM

Size of upper electrode

250*1200MM

1300*1700

1400*2040

Size of down electrode

250*2500MM

1500x1900

1600X2200

Welding time

 0~10S Adjustable

Net weight

2000kg

3000kg

3500kg
