HF Welder Plastic Blister Paper Card Sealing High Frequency Welding Machine of Rotary PETG Clam shell Cardboard Packaging Sealer

HF Welder Plastic Blister Paper Card Sealing High Frequency Welding Machine

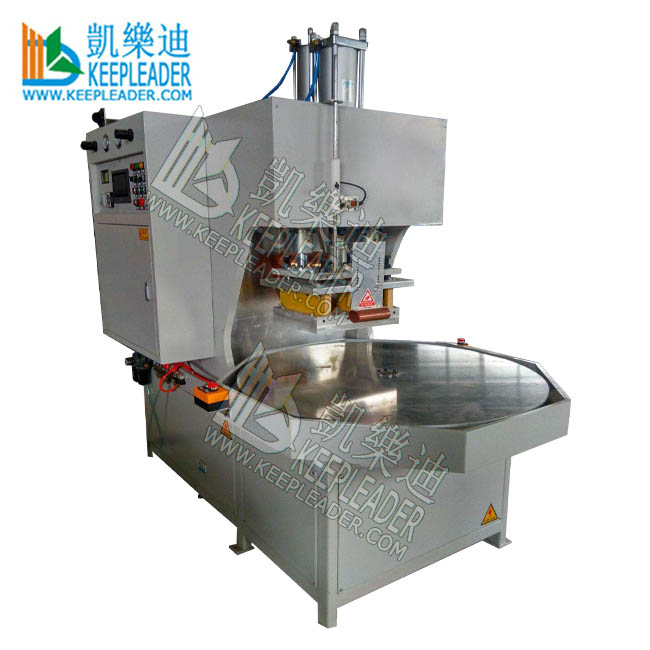

HF Welder Plastic Blister Paper Card Sealing High Frequency Welding Machine is universal HF welder of plastic blister and paper card sealing and edge trimming in clamshell packaging production, G-frame structure construct integrated with automatic rotary indexing table, and the possible ancillary device of robotic unloading system to achieve automatic production, its HF power output ranges from 5kw to 15kw, supports quick-changeover welding molds of custom-shaped and specified size for versatility

Product description

HF Welder Plastic Blister Paper Card Sealing High Frequency Welding Machine

Mainly application
HF Welder Plastic Blister Paper Card Sealing High Frequency Welding Machine Applied for blister sealing and cutting edges by high frequency welding technology, PVC blister sealing, PVC clamshell sealing, PVC Blister sealing on heating activated coating cardboard, PVC thermoformed box sealing, welding and cutting for any shape products made of PVC or PVC 30% up in membrane structure
Character
High Q value oscillation tube, reliable and strong output, Toshiba brand under requested high frequency complies with international standard: 27.12 MHz The machine can keep static for power sudden failure High sensitive anti-sparkle device NL 5557 to avoid damaging the mould. High quality Imported apparatus European-model high frequency vibration barrel, more reliable and stable Automatic thermostat to keep the temperature at best performance in welding High precision high frequency regulating knob for visible control Low voltage control panel for safety purpose Anodized mould and tooling for longer life-span Over current protection circuit to avoid burning the oscillation tube Power ranges 5kw up to 10kw for various welding size The welding electrode is screw fixed, which is easy replacement High frequency shield to avoid omission is optional Stroke distance and horizontal of electrode are adjustable Pedal valve control and button switches control are optional Thick steel plate bracket, more steady for giving pressure Imported famous brand electronic and pneumatic components Three or four working position is optional High precision cam/divider
Technique specifications
Model	KLR-5000S/A/E	KLR-8000S/A/E
Power	5000W	8000W
Voltage	220V/380V 50/60HZ	220V/380V 50/60HZ
Frequency	27.12MHZ	27.12MHZ
Input power	8KVA	15KVA
Rectifier	SILICON DIODE	SILICON DIODE
Oscillation tube	7T85RB	7T69RB
Ma* pressure	350kg	500kg
Gap between electrodes	160~200MM	160~200MM
Active horn	175MM	200MM
Size of upper electrode	200*350	400*600
Size of lower electrode	400*600	600*800
Range of temperature	30~200°C Adjustable	30~200°C Adjustable
Welding time	0~10S Adjustable	0~10S Adjustable
Productivity	4000times/8h	4000times/8h
Net weight	280kg	330kg
Dimension	10006601730	10007201860

Standard equipment:

Standard equipment:

Name	Origin	Brand
Air driven components	Taiwan	Airtac
AC contactor	Korean	LG
Relay	Japan	Omron
Electron Tube	Japan	Toshiba
Time controller	Taiwan	CKC

MFR: KEEPLEADER™ have modified and designed HF Welder Plastic Blister Paper Card Sealing High Frequency Welding Machine for our customers’ unique and special requirements, please contact KEEPLEADER™ for updated details

Detailed Images

HF Welder Plastic Blister Paper Card Sealing High Frequency Welding Machine applies dielectric bonding at the jointing location of Closed PVC,PET Blister and, Clear Clamshell sealed onto cardboard in plastic blister packaging production, under the effect of the high frequency electric field, the positive and negative charges of the substance to be heated displace to form electric pole polarons, the polarons polarize repeatedly to cause the molecules to produce the intense friction to give heat out, the electric field energy absorbed by the substance changes into heat energy to realize the purpose of heating that is interior heating in molecular scale, so High frequency welding takes advantageous blister sealing over heat press sealing in blister packaging field

Produce uses

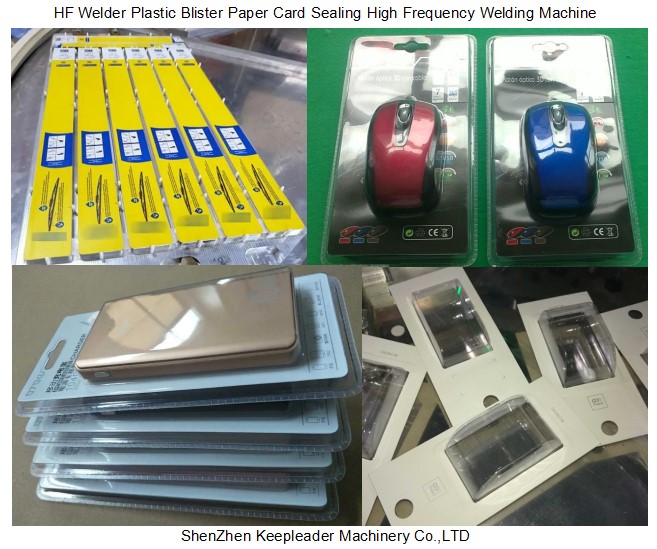

HF Welder Plastic Blister Paper Card Sealing High Frequency Welding Machine unifies edge sealing and tear-off cutting in one machine for double sided blister of PVC or PET material, in addition,clamshell can seal onto paper card when cutting into pieces.thanks for universal application for High frequency dielectric bonding in thermoplastic material, likely PVC,PET,EVA, TPU that can apply welding, forming, cutting,concave and convex decoration with quick-changing molds

HF Welder Plastic Blister Paper Card Sealing High Frequency Welding Machine can improve your operations, increase production speed,improve accuracy and maximize cost efficiency in plastic blister sealing,pneumatic driven electrode plate applies sufficient pressure during melting in precision control that is reliable in edge sealing and trimming in a cycle process, trust our professional staffs can build the gratified high frequency welder for blister packaging for your production
