Blister Vacuum Forming Machine of PVC_PET_PP_PS_Clamshell Boxes_Plastic Container Packaging_Shell Tray Making Thermoforming Line

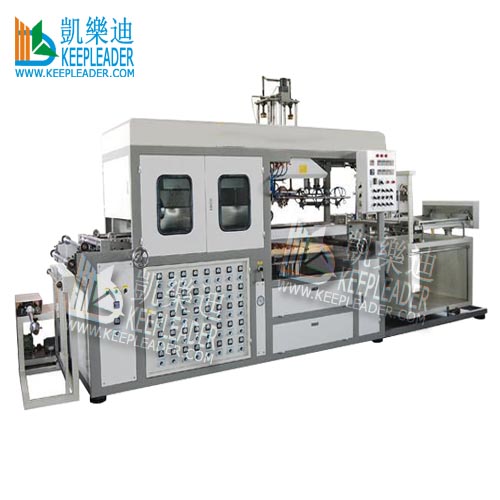

Blister Vacuum Forming Machine

Blister Vacuum Forming Machine

Blister Vacuum Forming Machine used for forming PVC, PET, PS  lister packages

Product description


vacuum thermoforming machine

Mainly application

Blister Vacuum Forming Machine Applied for the thickness of 0.1mm-3.0mm for PVC, PS, PET, PP, OPP flocking, antistatic, conductive film, vacuum thermoforming, sheets or rolling feeding is optional, which is manly for toys, electronics, food, medicine, hardware, tools, gift packaging, etc.

character

Servo motor imported from Japan drive to pull the sheets, which is more stable, reliable

independent temperature control groups: the intensive use of special plane far outside the ceramic heating element by the device, temperature uniformity, energy saving 50% higher than traditional machines

electric furnace in a closed heating to heat more evenly and reduce heat loss, accompanied by a manual switch controlling furnace vertically and help in the production process to control product quality, thick film can be used up and down double electric cooker (client customized ) speed up the heating time and increasing production speed

The machine is equipped with shock ejection device, stripping easy

The whole machine is equipped with cooling water transport and high speed cold water spray to accelerate the forming speed and ensure the forming quality, production speed twice as fast than the traditional machine

Built-in set of secondary vacuum, so the product more difficult shape, improve product quality and reduce the rejection rate

parameter

model

KLP-700/1200

Forming width

700mm

Forming length

1220mm

Forming height

180mm

power

280V/220V/50HZ

Heating power

15-39KW

Air pump

11KW

productivity

220-500time/huor

Power connection

380V/220V 50HZ (3phase, 4 wires)

Power consumption of whole machine

20-25KW

Air pump applied

20HP

Operation system

Digital

10.4 inch PLC control

Overall dimension

L6000mm*W1500mm*H2800mm

Net weight

2600KG

MFR: KEEPLEADER™ has modified and designed Blister Vacuum Forming Machine to accommodate our customers’ unique requirements, pls contact KEEPLEADER™ for updated tech files

Detailed images

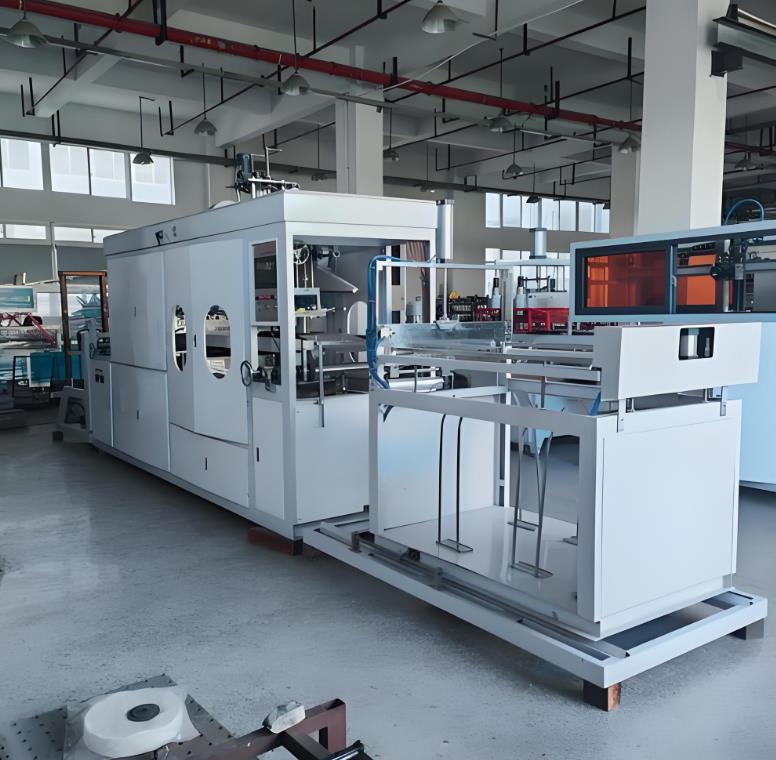

Blister Vacuum Forming Machine

Blister Vacuum Forming Machine has stocked for urgent order

Product uses

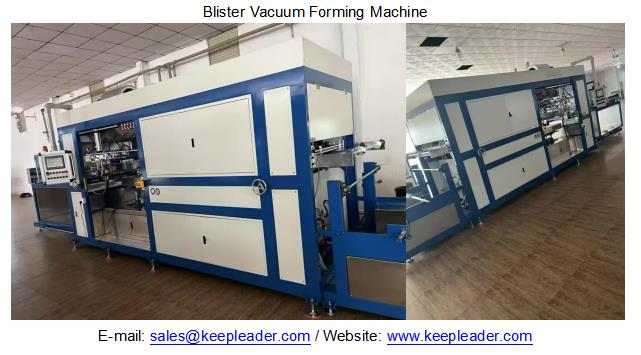

Blister Vacuum Forming Machine

Blister Vacuum Forming Machine can form the blister of thickness 0.1~1mm

After-sales service


After purchasing at KEEPLEADER™ is first step of our after-service, all of machines at KEEPLEADER™ has one year guarantee, we provide free samples for defected parts to do replacement except for human damage, under information for your notice

01: KEEPLEADER™ always posts the new technical file in our homepage that can help our client in new technical information of machines’ design, character, application, operation, maintenance, and related, KEEPLEADER™ also welcome our clients feed back the machines’ working condition that can get one to one service

02: If the machine you purchased has any defects, please contact sales representative at KEEPLEADER™, we will assign our experienced engineer analyze your case and provide technical support, in case of damaged parts that cannot repair, KEEPLEADER™ will provide a new parts to replace the defect

03: For any replacement and maintenance, KEEPLEADER™ has user manual and training video

04: KEEPLEADER™ can go to oversea for on-site training

05: KEEPLEADER™ can provide electric diagram if in need

06: Blister Vacuum Forming Machine has one year warranty, during its time, keepleader will provide free parts to replace the defected components

Packaging and shipment


Blister Vacuum Forming Machine

Blister Vacuum Forming Machine is shipped by ship the detailed packing standard is negotiable
