High Frequency Welding PVC PET Blister Paper Card Sealing Machine of Clamshell Package Auto Rotary Table Radio Frequency Welder

High Frequency Welding PVC PET Blister Paper Card Sealing Machine

High Frequency Welding PVC PET Blister Paper Card Sealing Machine

High Frequency Welding PVC PET Blister Paper Card Sealing Machine usually has High frequency power ouput: 5kw, 8kw and 15kw for versatile blister packaging production, that also can combine with robotic arm for loading and unloading to achieve autoamtic packaging process

Product description


blister high frequency welding machine

Mainly application

High Frequency Welding PVC PET Blister Paper Card Sealing Machine is used for mass production of blister sealing, this model is designed for sealing clamshell on paper card, or double sides plastic blister/clamshell sealing,

Character

Designed loop of HQ oscillation under low energy consumption
Optional of cutting pressure within1T, which is ok for big welding area
Automatic working-table, 3 up 6 working position is optional
High pressure turntable splitter, position tolerance is within 10um
With High sensitive anti-sparkle device, avoid damage the mould
International design of oscillation barrel, which is reliable and stable in output

Technique specifications

Model

KLR-8KW-4AC/KLR-15KW-4AC

Power

8KW/15W

Voltage

220V/380V   50/60HZ

Frequency

27.12MHZ

Oscillation tube

7T69RB/8T85RB

Max pressure

1000KGS

Gap between electrodes

200MM

Stroke distance

150MM

Size of upper electrode

400*600/600*800MM

Size of lower electrode

600*800/600*900MM

Range of tempreture

30~200°C Adjustable

Welding time

0~10S Adjustable

Productivity

Equal or less 5000times/8h

Net weight

2.5T

Overall dimension

2250*1550*2200

MFR: KEEPLEADER has modified and designed High Frequency Welding PVC PET Blister Paper Card Sealing Machine to accommodate our customers’ unique and special requirements, pls contact KEEPLEADER for tech assessment

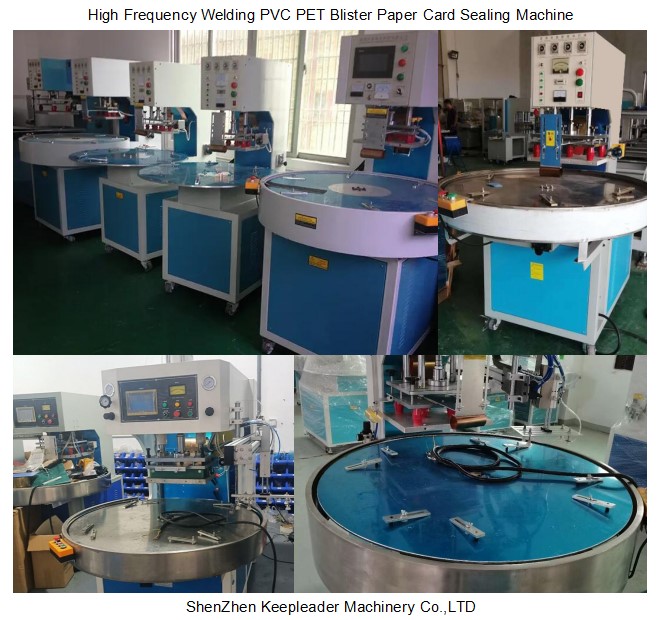

Detailed Images


High Frequency Welding PVC PET Blister Paper Card Sealing Machine

High Frequency Welding PVC PET Blister Paper Card Sealing Machine is made specifically for production in various blister packaging,this HF welder provides manufactures with high power HF output and custom sealing molds for versatile and reliable sealing, is equipped with special high precision rotary indexing gear controlled by frequency inverter, the operation is based on step by step technology with possibility of multiple welds in one cycle, the HF welder is also equipped with touch screen HMI and programmable PLC operator can easily input multiple weld recipes, its power ranges from 5kw to 15kw for different maximum loading size, automatic weld cycles, optional preheated welding platen, pneumatic or hydraulic driven welding head, electronic motion and weld cycle counter make this HF welder a perfect tool for high end production facility where precision, durability and strength blister packaging process are the key

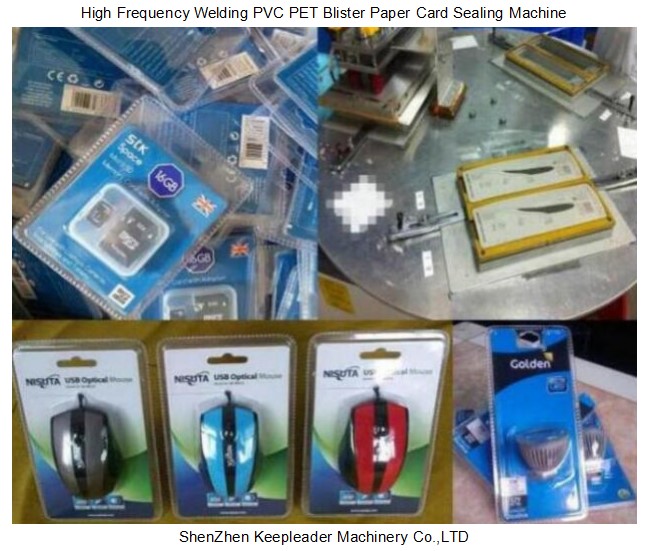

Product uses


High Frequency Welding PVC PET Blister Paper Card Sealing Machine

High Frequency Welding PVC PET Blister Paper Card Sealing Machine applies for PET,PVC Clamshell Paper Card sealing in plastic blister packaging, this automatic rotary table indexing HF wellding machine is also capable for EVA,PU,TPU sheets embossing process

Contact Us


High Frequency Welding PVC PET Blister Paper Card Sealing Machine

High Frequency Welding PVC PET Blister Paper Card Sealing Machine always takes years of dependable performance with an absolute minimal maintenance requirement, it is competitively priced, marking them ideal for small enterprises and low volume productions, perfectly complementing our blister/clamshell packaging series of HF welders, if you herein cannot find your concerns, which are very important for your individual production, don’t hesitate to consult them with our sales prior to our offer, all of our promised construction will be definitely accomplished
