PVC Sheet HF Welder Double Heads High Frequency Welding Machine of Vinyl_TPU_PET Sealing EVA_Fabric Logo Embossing RF Equipment

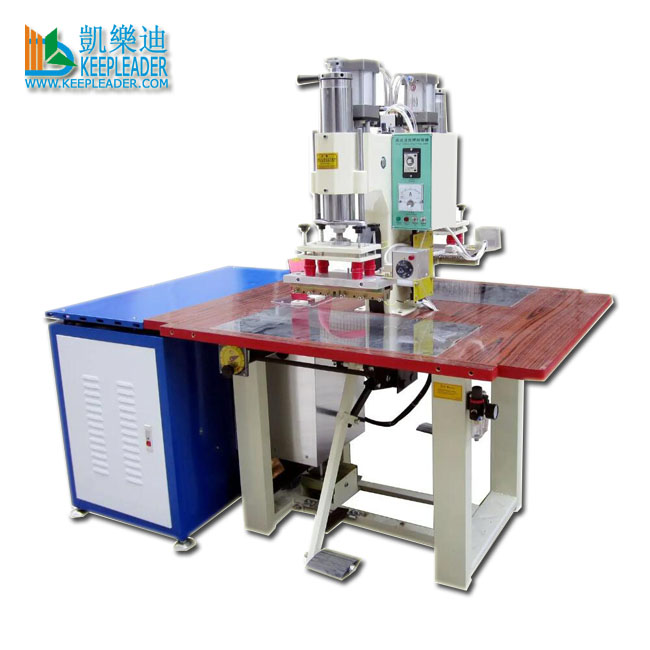

PVC Sheet HF Welder Double Heads High Frequency Welding Machine

PVC Sheet HF Welder Double Heads High Frequency Welding Machine assorts as universal model of High frequency welding machine, that has dual heads of alternated working, because of pedal elbow actuator trigger the pressure and high frequency oscillation, the operator can sit in front of console, which assists on alignment and alternation, particularly for complex geometry and three-dimensional construction, PVC Sheet HF Welder Double Heads High Frequency Welding Machine uses high frequency radio waves to heat the plastic surface of two different items as they face one another, this heat reaches the point where the plastic surface begin to melt, and the two surface or materials blend together, once the radio waves stop and plastic tool down, the two different materials remain fused together, bonded now as one item

Product description

Main application
PVC Sheet HF Welder Double Heads High Frequency Welding Machine Applied for high frequency blister packaging, soft crease box/case making, inflatable toy, plastic port and valve, raincoat, plastic bags, leather logo embossing, trademark embossing or any PVC and PVC contained 30% up
Character
High Q value oscillation tube The high frequency complies with international standard: 27.12 MHz The machine can keep static for power sudden failure High sensitive anti-sparkle device NL 5557 to avoid damaging the mould. High quality Imported apparatus European-model high frequency vibration barrel, more reliable and stable in output Automatic thermostat to keep the temperature at best performance in welding High precision high frequency regulating knob for visible control Low voltage control panel for safety purpose Anodized mould and tooling for longer life-span Top amounted cylinder for vertical pressing, which is more uniform pressure Over current protection circuit to avoid burning the oscillation tube Power ranges 4kw up to 10kw for various welding size The welding electrode is screw fixed, which is easy replacement High frequency shield to avoid omission is optional Giving pressure by level elbow joint, which can save the strength Stroke distance and horizontal of electrode are adjustable One oscillation vibration system control double working position Thick steel plate bracket, more steady for giving pressure Imported famous brand electronic and pneumatic components High frequency welding machine for inflatable products
Technique specifications
Model	KLR-5000TA/KLR-8000TA
Power	5000W/8000W
Voltage	220V/380V 50/60HZ
Frequency	27.12MHZ
Input power	8KVA/15KVA
Rectifier	SILICON DIODE
Oscillation tube	7T85RB/7T69RB
Max pressure	350kg/400KG
The gap of electrode	160~200MM
Stroke distance	60MM
The size of upper electrode	120*290mm
The size of lower electrode	350*700mm
The range of temperature	30~200°C Adjustable
Welding time	0~10S Adjustable
Way of pressure	Foot operated
Productivity	3000~4000times/8h
Net weight	330kg/380kgs
Overall dimension	172011001500/180012001600

PVC Sheet HF Welder Double Heads High Frequency Welding Machine

Standard equipment:

Name	Origin	Brand
Air driven components	Taiwan	Airtac
AC contactor	Korean	LG
Relay	Japan	Omron
Electron Tube	Japan	Toshiba
Time controller	Taiwan	CKC

MFR:KEEPLEADER™ have modified and designed PVC Sheet HF Welder Double Heads High Frequency Welding Machine for our customers’ unique and special requirements, please contact KEEPLEADER™ for updated details

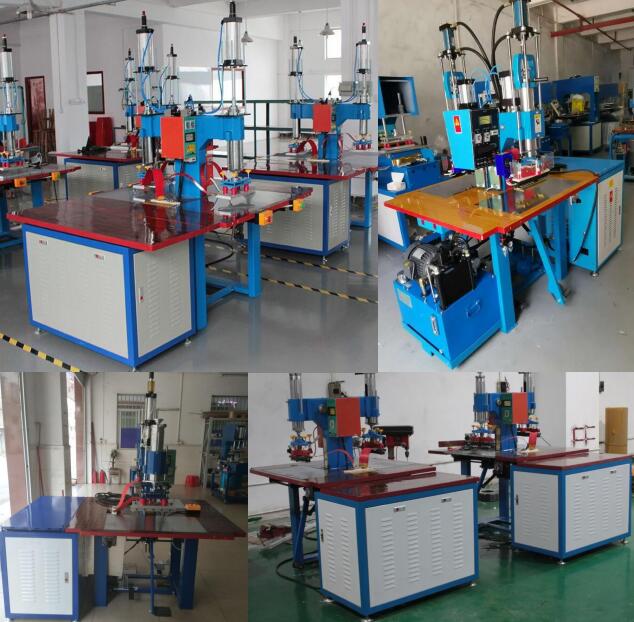

Detailed Images

PVC Sheet HF Welder Double Heads High Frequency Welding Machine gains prevalent gratification because of its salient characters, such as there are two tables for two operators respectively to increase the efficient, convenient alignment and easy for operators to alternate products; designed with ergonomics that can reduce physical fatigue when long-term welding operation; it works by high frequency dielectric with high welding quality; high frequency output is stable and weld smoothly; the electronic components are renowned brands, that is convenient replacement and reliable longevity; it is equipped with ARC suppressor to protect molds

Product Uses

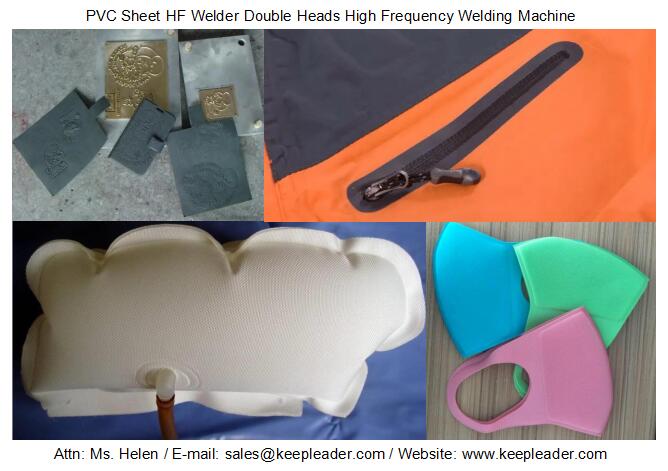

PVC Sheet HF Welder Double Heads High Frequency Welding Machine share the same high frequency oscillation technique of melting ,pattern forming and tear-seal cutting in plastic material treatment, such as PVC, PU, TPU, PEVA, PETG all can be processed in industrial production of sealing in making foot wears, sticking label, rain coat, rain-canvas, umbrella, special hand cover, vacuum packing, travelling bag, stationary, name plate, inflatable toys, cushion for vehicle and motorcycle, upholstery, interior decoration of automobile and other more flexible products made of fabric and plastic cloth

PVC Sheet HF Welder Double Heads High Frequency Welding Machine, If you are sourcing high quality high frequency welding machine for your productive seam sealing, fabric embossing and tear-seal cutting, our PVC Sheet HF Welder Double Heads High Frequency Welding Machine can satisfy your wide range production, that is universal HF welder, and used for complex geometry products of sealing, embossing, tear-seal cutting and stamping, keepleader, we are also passionate about providing you with the very finest customer service, doing everything from answering your question to helping you pick out the perfect material to user, after browse the details of our PVC Sheet HF Welder Double Heads High Frequency Welding Machine, you still cannot find your concerns whatever dimensional gratification or machine’s configuration, please contact us, we will be happy to help you find the right high frequency welding machine, either or work out a reliable solution at affordable for you
