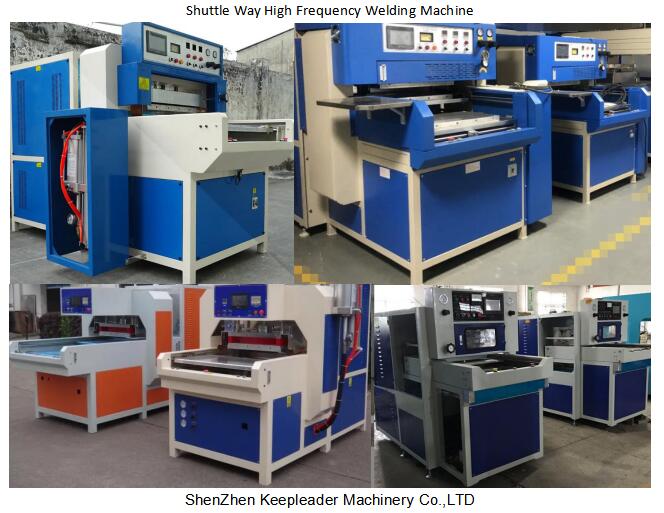

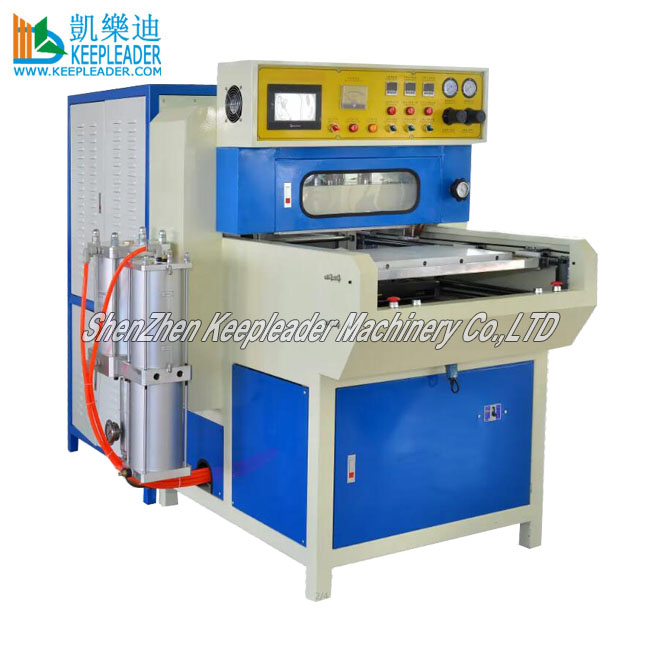

Shuttle Tray High Frequency Welding Machine of Slipway PVC Radio frequency Fusion machine For Sports Shoe Upper Insole Embossing

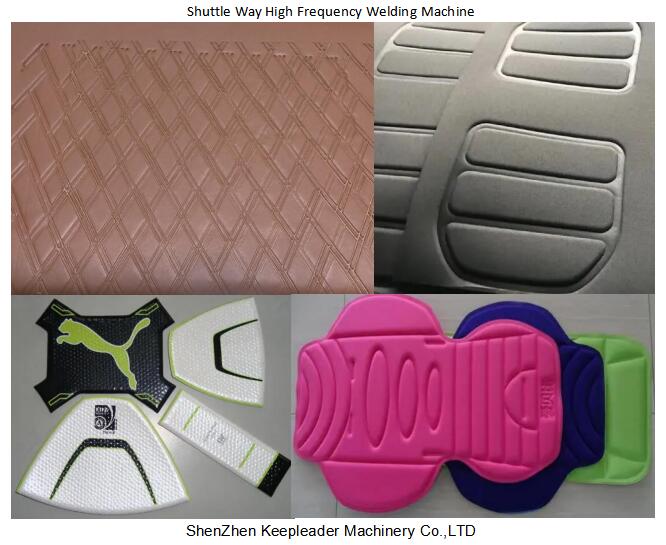

Application

APET, PETG, GAG etc plastic sheets in welding and cutting

Blister and cardboard sealing and trimming, e.g.: toothbrush packaging

PU, TPU, synthetic leather, PVC coated Fabric to make sports shoe cover

PVC medical supplies welding and cutting(infusion bag, urine bag, etc)

Footwear accessories, trademark, watch belt, CD bag, hot water bag, heat preservation bags, etc

Character

Build-in PLC for convenient operation and resetting

High efficiency, save labor force, one operate can control two slipways

Compacted instruction can save working room

Build-in sensitive anti-sparkle device to guarantee the mold safety

With good shield device to reduce the radiation to its lowest

30ton pressure can weld and trim the edges in welding

Mounting optical grating to avoid wrong pressing

With HF electronic self-tuning device for stable output

Parameter

Model

KLR-8KWTL

HF Power

8KW

Input power

15kva

Power Supply

380v/50hz

Frequency

27.12mhz

Oscillation tube

7T69RB

Pressure

30T

Electrode gap

200mm

Upper electrode

350*500mm

Low electrode

400*600mm

Temp scale

30 to 200 degree

Welding time

0 to 10s

Main body

2.3*1.16*1.73

Packing size

2.4*1.21*2.1m

Net weight

1600kgs
