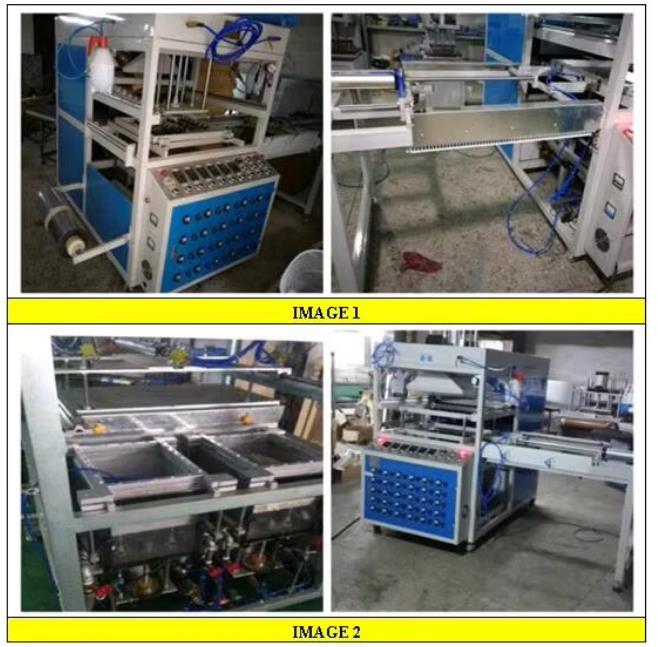

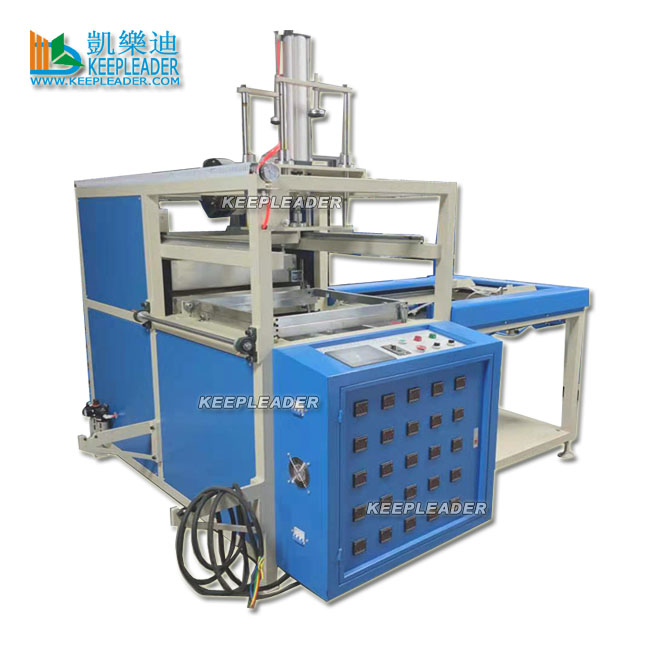

Small Vacuum Forming Machine

Product description


Mini thermoforming machine

Mainly application

This machine is used for thermoform all kinds of shapes, in the blister packing of toys, hardware, foodstuffs and electronic products

Character

Mini style, save cost and space

Compacted shape, which is for convenient transportation

Easy and convenient operation and maintenance

Sheet by sheet feeding manually, which is for saving cost

Automatic output

Easy operation, just need of manual loading material

Heating element is separated control, by which to keep the temperature even

Automatic roller feeding is available (under request)

Laser positioning

Mini style, save cost and space

Compacted shape, which is for convenient transportation

Easy and convenient operation and maintenance

Sheet by sheet feeding manually, which is for saving cost

Automatic output

Easy operation, just need of manual loading material

Heating element is separated control, by which to keep the temperature even

Automatic roller feeding is available (under request)

Laser positioning

Mainly parameter

Model:

KLY-610/560

Forming length

610mm

Forming width

560mm

Forming height

150mm

Bottom mould stroke

200mm

Suitable sheets

610mm

Productivity

100~300 times/hour

Heating power

500W*25

Temperature control

Separated infrared electronic control for each

Vacuum pump

 25m²H

Consumable power

6--12.5KW(MAX)

Power supply

AC380V    50/60Hz

Air compressor

3HP

Overall dimension

(L)2750mm*(W)2100mm*(H)2100mm

Net weight

1000Kg

pls contact KEEPLEADER for more info and tech assistance
