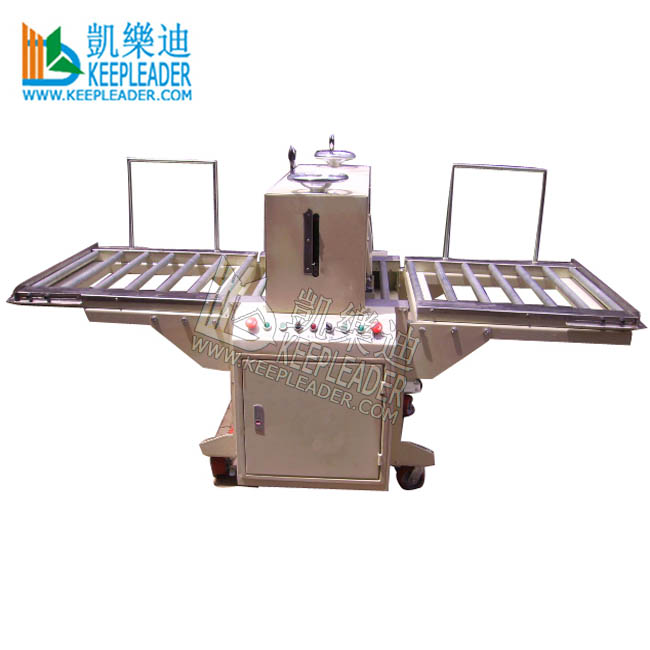

Rotary Press Roller Die Cutting Machine for Paper Card_Cardboard_Skin Packaging Blanking Flatbed Roll Press Stripping Equipment

Roller die cutting machine

application

Rotary Press Roller Die Cutting Machine Ideal for cutting plastic sheet, leather, rubber, sponge, paper board, thermoformed blisters, skin pack boards, etc.

Character

Designed to use in line with skin packaging machine for enhanced cutting efficiency.

Bi-flex cutting principle (cutting force concentrated between 2 pressure rollers) ensures faster and quieter cutting process.

Right to left, left to right reciprocating ensures enhanced productivity.

The cutting length is unlimited.

Special safety protection device adopted to ensure operation security.

Rugged reinforced cutting rollers ensure neat cutting and a longer life span of the rollers.

The cutting height can be easily adjusted for ultimate flexibility.

Durable cutting plate comes with the machine.

Rugged utilized steel frame, plus heat-treat surface finish with paint for superior appearance and durability

Specification

Model

KLC-6015

Working Area

W600*L800mm

Max. Cutting Height

150mm

Speed

6-8 cycles/min

Power supply

380V ,3 phase, 50/60HZ

Net Weight

300kgs

Overall size

L2250*W980*H1350mm
