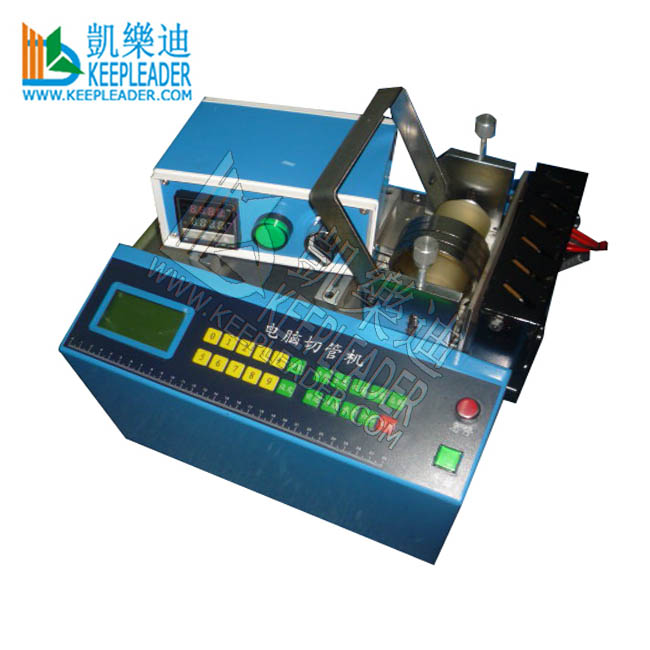

Ribbon Hot Cutting Machine

Description

shape cutting machine, tape cutting machine,strip cutting machine, soft tube cutting,Ribbon hot cutting

 shape cutting machine

character

The machine adopts microcomputer numerical control device, easy to operate;
Can set the belt cutting length, size, precision, less waste;
Adjustable feed rate of speed, convenience of different materials appropriate adjustments;
A quantitative cut, the set will automatically stop when the number is rated

Replaced knife to couple with different shape cutting

Cutting width can made-to-order

Set length, set-quantity and set-speed cannot be erased if power is switch on and off

Hot cutting, nice appearance by hot sealing after cutting

Mainly application

Applicable to bonding, tape,  and other materials rounded, semi-rounded, sword-shaped, rectangular and other fixed-inch cutting, molding use.

parameter

Model

KL-120H

power

120W(the maximum power:500w under request)

voltage

220V Single phase or 110V for USA,Canada

Net weight

35kgs

Overall dimension

380*320*300mm

productivity

120-140pcs/min basing 50mm

Cutting width

1 up to 115mm

 Cutting tolerance

 0.05mm

 Cutting precision

 0.1mm

 Cutting material

 Heat shrinking tube/flat cable/pvc sleeve/insulation tube/two-side tape/cotton yard belt/nylon belt/soft tube

Cutting length

1-99999mm

Cutter

Hot, 900 degree as maximum
