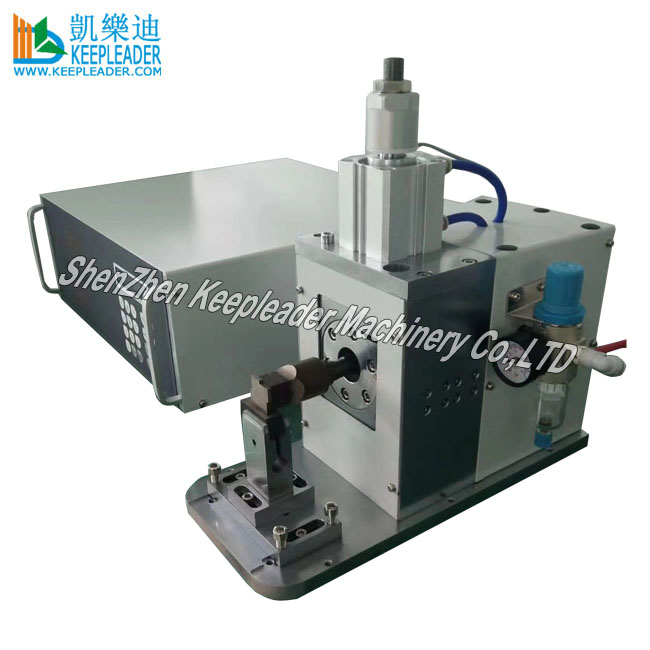

Ultrasonic Metal Spot Welder for Copper_Aluminum Foil Ultrasonic Spot Welding

Ultrasonic Metal Spot Welder for Copper_Aluminum Foil Ultrasonic Spot Welding

 Ultrasonic Metal Spot Welder for Copper_Aluminum Foil Ultrasonic Spot Welding must have unique welding tool, pls provide us sample picture of your welding parts for tech evaluation

Machine Description


01: Parameter

Model

KLM-1040/KLM-1224

Ultrasonic power

1000w/1200W

Ultrasonic Frequency

40khz/24KHZ

Power Supply

110v~220v, 50hz/60hz

Air Supply

7~8 bat (kg/cm2)

Maximum air pressure

6kgs/cm2

Minimum air pressure

0.3kgs/ cm2

Input port

Quick coupler

Welding time

Adjustable (0.01~10s)

Pre-pressure time

Adjustable (0.02~1s)

Frequency display

00.0000~40.000hz

Adjustable Power

300w, 600w, 900w,1200W

Frequency Auto-tuning

+/-2hz

Auto protection

Auto protection for inside over 60 degree

EMI/EMC

Strong Anti-disturbing

Cylinder diameter

50mm

Cylinder stroke

20mm (Maximum)

Welding head

Dual point

Distance of welding point

10mm

Overall size

440*280*330mm

Net weight

30~40kgs

02: Character

5.7 inch touch screen all digital control

Multiple protection function, over current, frequency protection and boot automatic detection

Automatic frequency tracking function of ultrasonic generator

Pressure, amplitude, welding time etc are all digital setting and regulation

Microcomputer control, electronic tuning frequency

Over-current protection and soft starting circuit design for safe working

03: Ultrasonic welding principle

Ultrasonic Metal Spot Welder adopts ultrasonic vibration to cause the jointing interface of Aluminum foil and copper foil molecular friction, under the suitable pressure, the metal foils apply bonding performance, the metal foil of battery bonding is molecular connection without heating and any solder, the battery electrode is extremely conductive and extremely low resistance

Extremely conductive and extremely low resistance

04: Highlighting of Ultrasonic welding for Al and Cu foil

Good conductivity, resistivity very low or almost near to zero

Oxidation or plating metal can be welded

Short welding time, no need additional flux, gas, solder

No welding sparks, environment protection and safety

Low energy consumption, High frequency, no distortion, no pollution

The welding/bonding has robust connection and easy operation

Welding material does not melt non-fragile metal properties

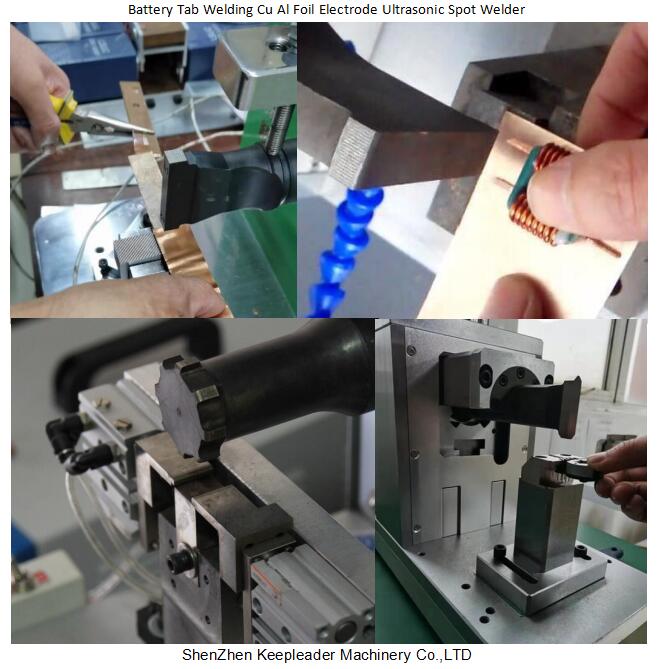

Functional Illustration


Ultrasonic Metal Spot Welder for Copper_Aluminum Foil Ultrasonic Spot Welding

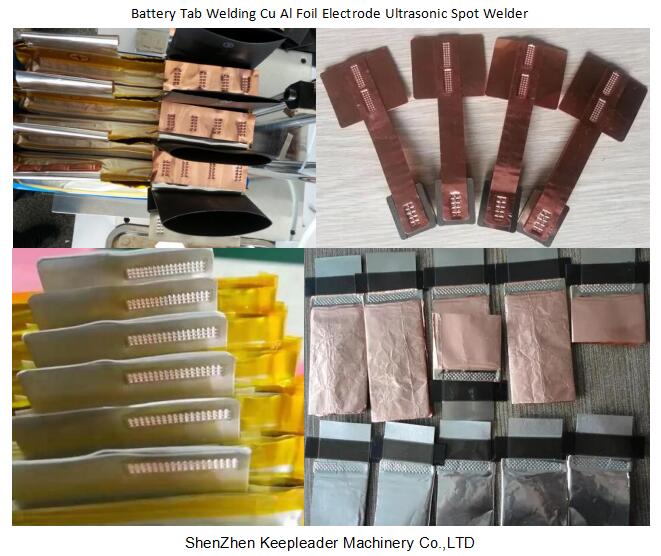

Product Uses


Ultrasonic Metal Spot Welder for Copper_Aluminum Foil Ultrasonic Spot Welding

Ultrasonic Metal Spot Welder for Copper_Aluminum Foil Ultrasonic Spot Welding must have its suitable welding tools, pls consult the details with us, above is just welding wire for reference

After-Sales Service


After purchasing at KEEPLEADERTM is first step of our after-service, all of machines at KEEPLEADERTM has one year guarantee, we provide free samples for defected parts to do replacement except for human damage, under information for your notice

01: KEEPLEADERTM always posts the new technical file in our homepage that can help our client in new technical information of machines’ design, character, application, operation, maintenance, and related, KEEPLEADERTM also welcome our clients feed back the machines’ working condition that can get one to one service

02: If the machine you purchased has any defects, please contact sales representative at KEEPLEADERTM, we will assign our experienced engineer analyze your case and provide technical support, in case of damaged parts that cannot repair, KEEPLEADERTM will provide a new parts to replace the defect

03: For any replacement and maintenance, KEEPLEADERTM has user manual and training video

04: KEEPLEADERTM can go to oversea for on-site training

 05: Ultrasonic Metal Spot Welder for Copper_Aluminum Foil Ultrasonic Spot Welding has user manual, train video and all life long technical assistance
