Ultrasonic Plastic Welders with Sound Insulation Cover for ABS_PVC_PP_PE Bonding Device Thermoplastic Welding Ultrasound Machine

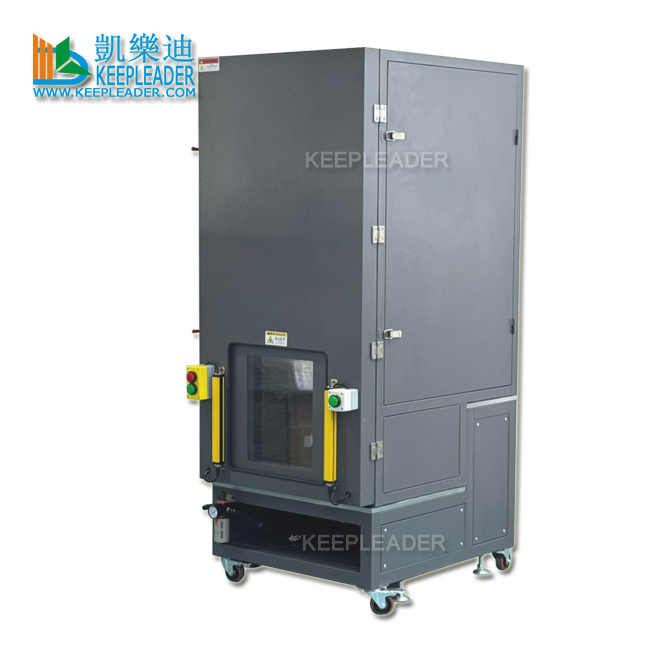

Ultrasonic Plastic Welders with Sound Insulation Cover

Ultrasonic Plastic Welders with Sound Insulation Cover is ultrasonic welding machine of console type,2.6kw, 15khz which equipped with sound insulation cover having sound absorbing cotton/rubber to reduce ultrasonic sound leakage during welding

Product description

IC circuit precision control, automatic overload protection system adopting digital switch, 1/100 precision re-set control adjustable horizontal level, easy control welding horn high O transducer, optimized output Have resonant frequency when the load, unload, without adjustment for the frequency of welding horn Square column and column airframe structure is optional, the straight line guide bearing, the precise matching device Using the turbine rotation to adjust the machine movement, which is better than normal Adopting Japan HuangPai brand alloy steel to keep frequency strong and stable Celebrate itself durability for adopting USA aviation standard 7075¡¢6064 Aluminum alloy the electronic components are imported from Italy, Japan, American, South Korean, Taiwan and etc all in one high capacity machine, applied for high precision of welding work piece Automatic protective device, which is optional high-power machine, which is applied for Large work piece
Mainly parameter
Model	KLC-2615	KLC-3215	KLC-4215
Input power	2600w	3200W	4200W
Frequency	20KHZ
Input voltage	220V
Max input power	1.2KW	1.9KW	2.3KW
Active horn	70mm
Oscillation system	Auto-stimulating
Output time	0.01-99S
Pressure	Pressure bound 1-7bar
Welding area	200mm	220mm	250mm
Compressor	1HP
Net weight	110kg	100kg	115kg

pls contact KEEPLEADER for more info and tech assistance on Ultrasonic Plastic Welders with Sound Insulation Cover

Ultrasonic Plastic Welders with Sound Insulation Cover is acceptable to equip with ultrasonic proof or without

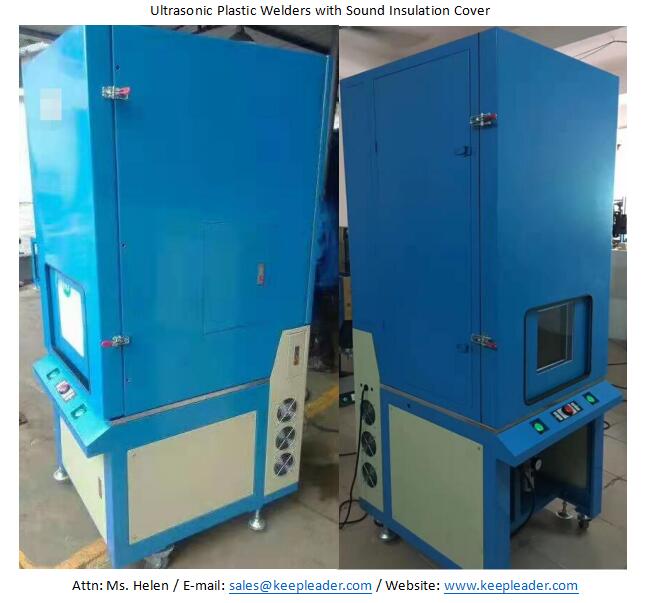

Detailed images

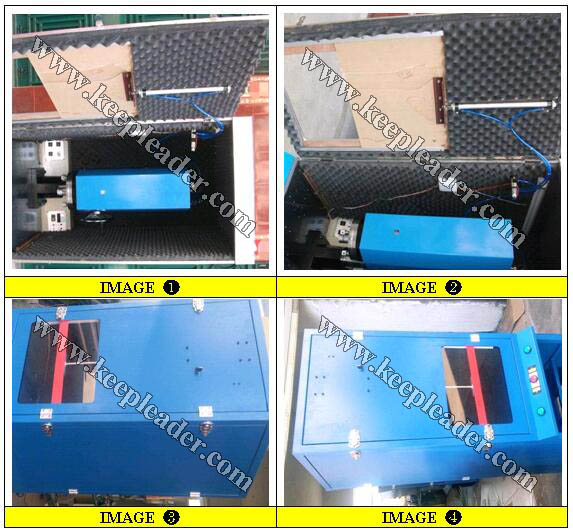

Ultrasonic Plastic Welders with Sound Insulation Cover can provide a nearly silent working enviroment during working, continuous ultrasonic sound output always cause the impatience for its operation, insulation cover is ideal solution to resolve this problem, grating protection device also can auto open and close the accessing door to avoid accidently pressure

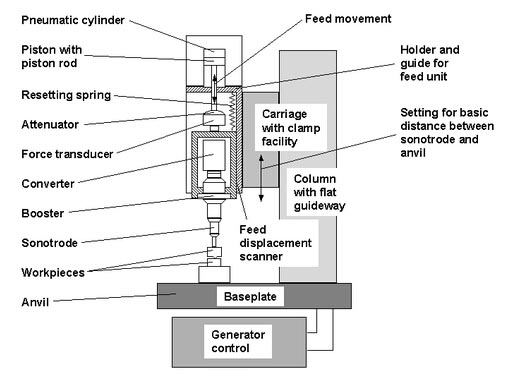

Technology

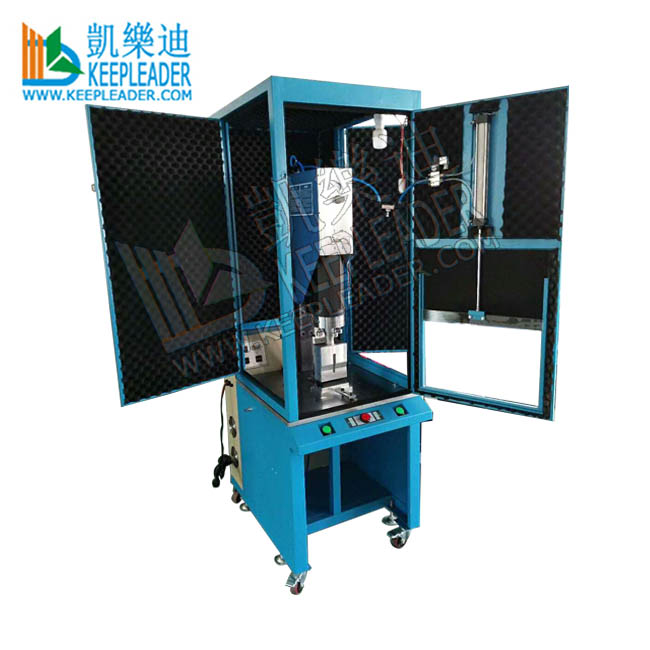

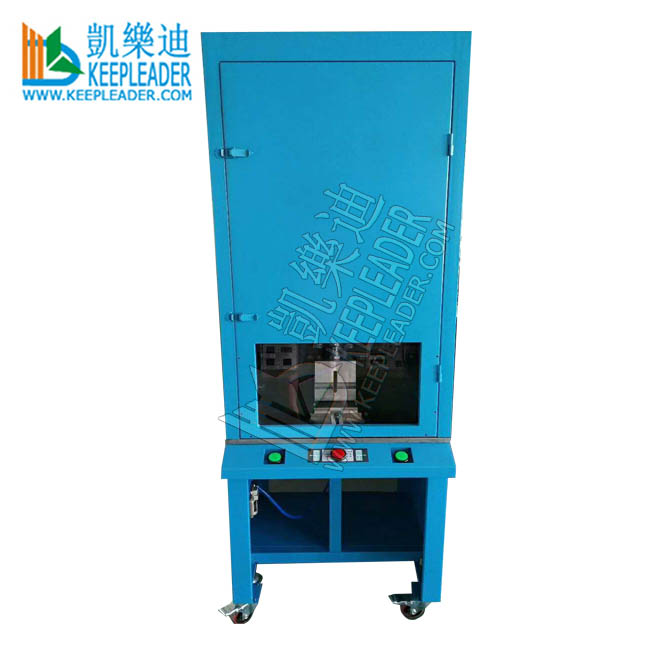

Ultrasonic Plastic Welders with Sound Insulation Cover also has the standard configurations, only have diferent elements in #1: working console #2: grating protection device #3: sound insulation cover

Product uses

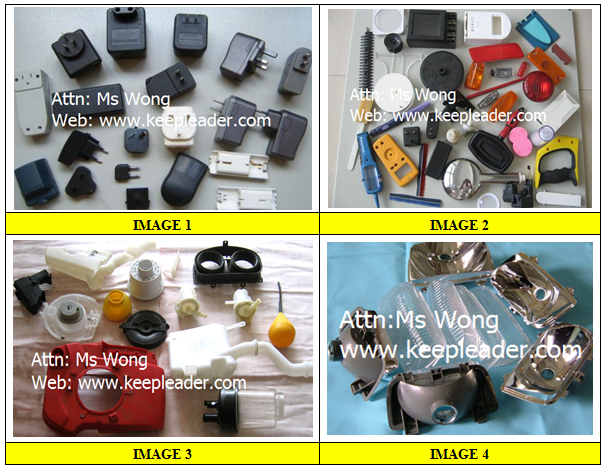

Ultrasonic Plastic Welders with Sound Insulation Cover is often used in welding field of automotive, electronics, home appliances, industrial components, electrical wiring components, lighters, toys, gadgets,medical, personal appliances, blister packaging, belts, stationery and book covers any other solid plastic parts made of amorphous and semi-crystalline

Ultrasonic Plastic Welders with Sound Insulation Cover necessitates select the suitable ultrasonic power and frequency are compatible with welding material and size in each project, also fabricating ultrasonic sonotrode/welding mold and fixture/anvil to apply pressure and vibration heating during melting process, keepleader is a leader in designing, developing and manufacturing of ultrasonic plastic welder, has the experience and expertise covering thousands of standard and customized ultrasonic plastic welder and provide itself in solving some of most challenging plastic welding application in the industry, if you still cannot find your concerns, please share your ideas with out engineer for further suggestive proposal, believe that we can provide a reliable and affordable solution for your project
