Wire Marking Hot Stamping for Wire_Cable Imprinting

Introduction

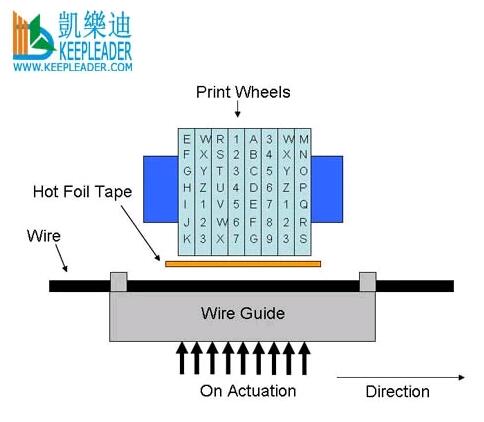

Wire Marking Hot Stamping for Wire_Cable Imprinting also name Wire rubber ironing machine and cable rubber stamping machine, wire printer Electric ironing machine, used for printing hot stamping in marking Wire, cable, Shrink Sleeve, Rubber/Plastic tube, is designed with 40pcs difference characters, including number: 0~9, Letters: A~Z, Symbol: . / + - and Blank, same as 0123456789ABCDEFGHIJKLMNOPQRSTUVWXYZ./+-, Machine is also capable of using engraved logo dies for customizing sleeving

Application

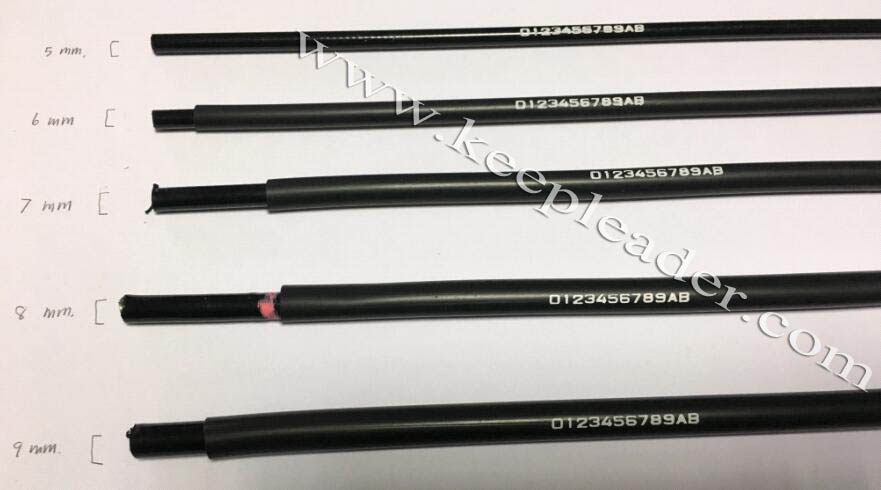

For hot stamping in marking/printing cable and wire insulation, heat shrink sleeve, and plastic tubing

High lighting

Less operator fatigue than a lever operated machine

Solid state dwell timer for better repeatability

Can Be Easily Interfaced With Wire Processing Machines

For hot stamping cable and wire insulation, heat shrink sleeving, and plastic tubing.

Stepper motor with electronic control ensures accurate, easy print interval markings

Wire can be pulled through by hand or using production machinery

Marks identification codes in virtually any print interval

Excellent throughput – 75 feet or 20 meters per minute with optional Automated Drive System

Single wire guide handles a range of wire diameters reducing setup time

Simple control and operation

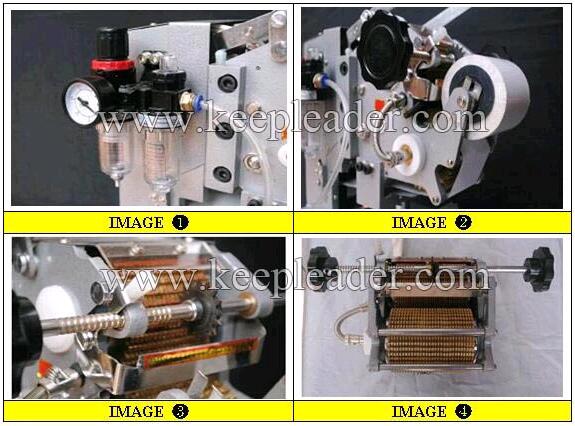

10 flame hardened wheels, each with up to 40 characters allows for quick selection of identification codes

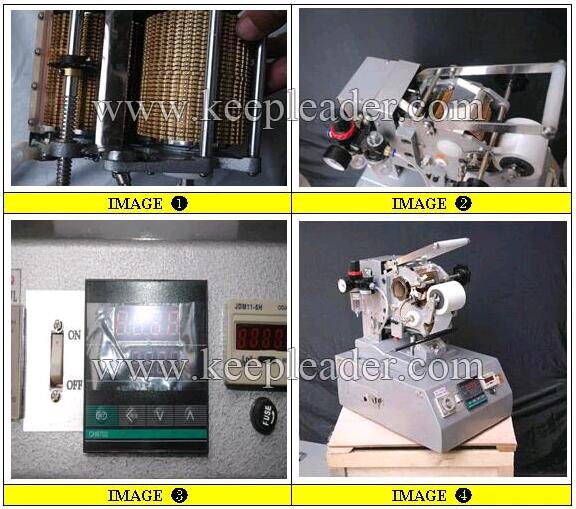

Digital temperature control with feedback loop

Optional second tape carriage provides up to spool reduces production interruptions

Rugged, heavy duty construction for the production environment

Character Disk

Flat-faced Marking Discs

Flat-faced marking discs have flat-faced type. They are used for marking heat-shrink tubing and large diameter wires and cables.

Concave-faced Marking Discs

Wire marking discs have concave type. They are made in various character sizes to cover a range of wire diameters. Both vertical reading and horizontal reading characters are available.

Mainly parameter

Power supply

220V/380V or under request

Operation temperature

100 degree

Wire and Cable Size

1.5mm~10mm

Number of Disks

7,9,11, 16, (bit), customized

Characters of Each Disk

A-Z, 0-9,. , /, +,-, space

Character size

1.5*1.5mm,1.8*1.8mm,2*2mm,2.4*2.4mm,3*3mm

Character Surface

Flat/Concave

Material

Rubber, PVC, Teflon

Operation Mode

Push Button or foot pedal

Foil

Any Color, 60meter and 120 meters

Net Weight

25kgs

Gross Weight

35kg

Dimensions

355 * 350 * 280mm
