Tarpaulin Heat Sealing Hot Air Seam Sealing Machine for PE Tarp_Canvas Hot Air Sealing_Welding of Inflatable_Banner_Tent Sealing

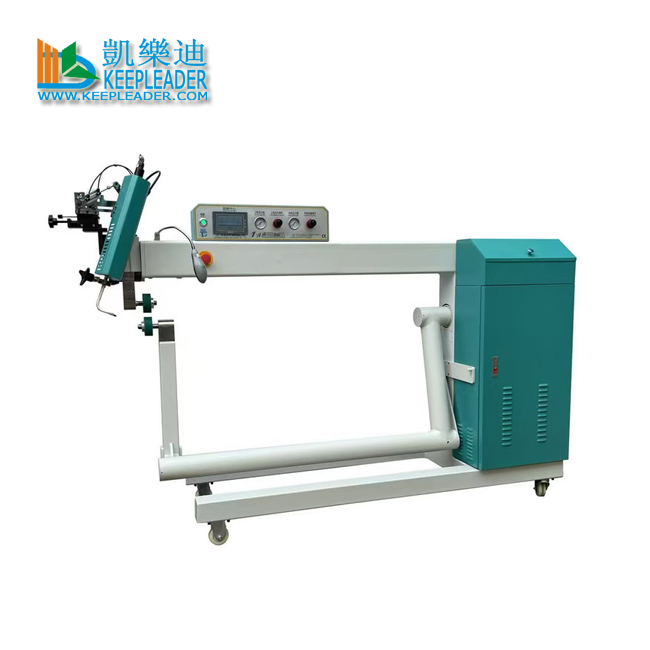

Tarpaulin Heat Sealing Hot Air Seam Sealing Machine

Tarpaulin Heat Sealing Hot Air Seam Sealing Machine

Tarpaulin Heat Sealing Hot Air Seam Sealing Machine is hot air seam sealing & Hot Wedge for tarpaulin/canvas/tent/tarp

Machine Description


Tarpaulin Heat Sealing Hot Air Seam Sealing Machine

Mainly introduction

Hot air welding machine has unique advantage in inflatable products made of membranes structure, which is total different with high frequency welding and hot melt welding technology, the hot air is blew between the sealing surface, under necessary suitable pressure to get perfect welding effect, PVC, TUP material are all available, which are made to advertising blimp, inflatable advertising banner, inflatable bounce, water polo, water drum, grass ball, inflatable swimming pool, large inflatable tents, inflatable boats, rubber boats and fishing boats and etc

Character

Suitable for any size of inflatable products made of PVC,TPU

PLC, Visible to operation, and convenient to reset parameter

Self-control temperature, the tolerance is within 2 degree

According to ergonomic design of dual-pedal control

Work around the clock, higher production efficiency

Special design of heating tube, hot air is filtered without moisture

Super-power design of large torque

Parameter

Model

KL-300

Power

3000w

Frequency

AC 220V,50hz

Temperature

0 to 700

Sealing speed

1 to 18m/min

Air pressure

0.35 to 0.5mpa

Pinch roller

30mm(optional)

Diameter of gun mouth

24mm/27mm (optional)

Roller stroke

18mm to 25mm

Overall size

1500*720*1600mm

Net weight

250kgs

MFR: KEEPLEADER™ has modified and designed Tarpaulin Heat Sealing Hot Air Seam Sealing Machine to accommodate our customers' unique and special requirements

Detailed Image

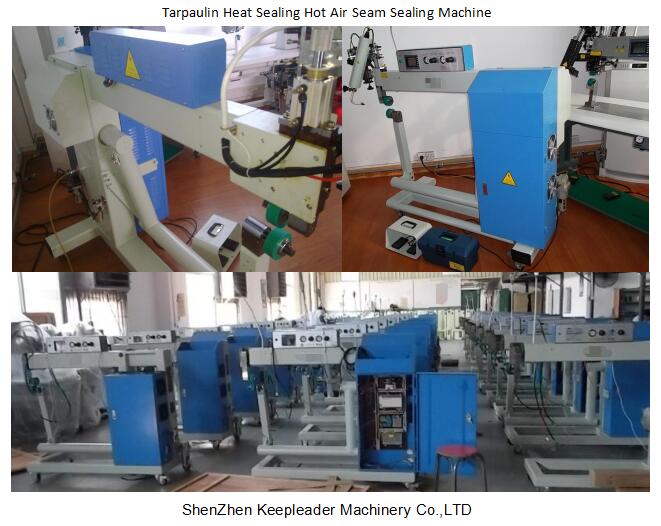

Tarpaulin Heat Sealing Hot Air Seam Sealing Machine

Tarpaulin Heat Sealing Hot Air Seam Sealing Machine has auto positioning and rubber roller actuaor for automatic sealing

Product Uses


Tarpaulin Heat Sealing Hot Air Seam Sealing Machine

Tarpaulin Heat Sealing Hot Air Seam Sealing Machine used for sealing ♦1:inflatable products 2: water walking ball 3: Billboard 4: Banner 5: Tarpaulin/Canvas 6: Rubber boat 7: Mesh Tarp

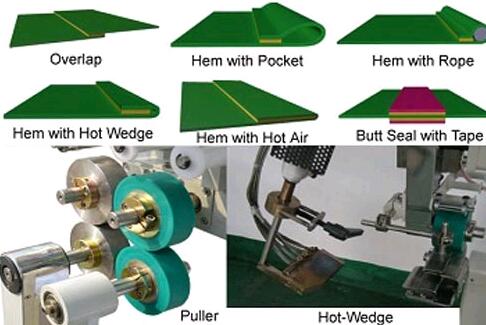

Technical Illustration


Tarpaulin Heat Sealing Hot Air Seam Sealing Machine

Tarpaulin Heat Sealing Hot Air Seam Sealing Machine can have above welding design reference, if you cannot find prefer, please send us your welding for technical confirmation
