Polypropylene Plastic Welding Ultrasonic Welder for Polypropylene_PP Battery Case Welding of Sonic Battery Case Welding Machine

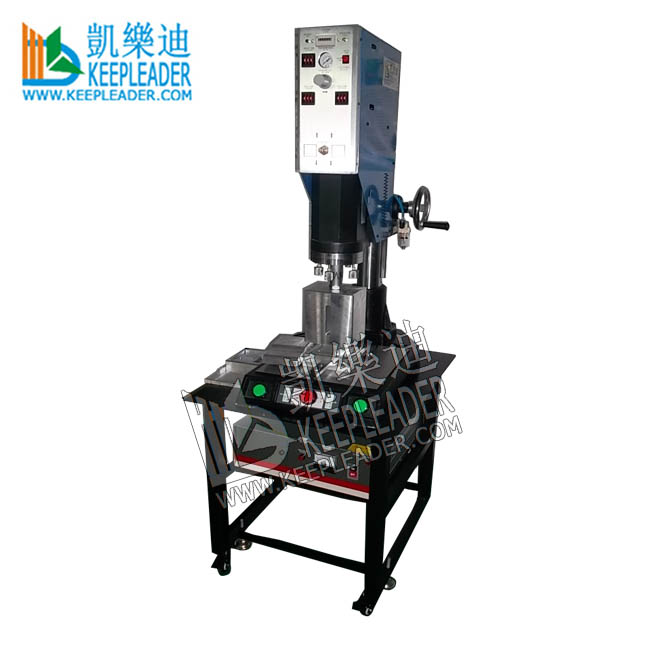

Polypropylene Plastic Welding Ultrasonic Welder

Polypropylene Plastic Welding Ultrasonic Welder has 2.6kw, 3.2kw, 4.2kw, 5.2kw of 15khz & 20khz for option

Product Description

Polypropylene Plastic Welding Ultrasonic Welder

Mainly parameter
Model	KLC-2615	KLC-3215	KLC-4215
Input power	2600w	3200W	4200W
Frequency	20KHZ
Input voltage	220V
Max input power	1.2KW	1.9KW	2.3KW
Active horn	70mm
Oscillation system	Auto-stimulating
Output time	0.01-99S
Pressure	Pressure bound 1-7bar
Welding area	200mm	220mm	250mm
Compressor	1HP
Net weight	110kg	100kg	115kg

Polypropylene Plastic Welding Ultrasonic Welder of working principle

Polypropylene Plastic Welding Ultrasonic Welder operate by inducing ultrasonic frequency in thermoplastic components that is converted into heat between the welded plastic laminates, frictional heat is produced, so that thermoplastic parts melt and an insoluble connection between parts is forged in a very short period of time, the melting points of both working pieces is nearly equivalent which helps to form a uniform weld area, the welded area is usually as strong as the matrix material

Polypropylene Plastic Welding Ultrasonic Welder of application fields:

Widely used in the automotive industry, electronic industry, medical industry, household appliances, woven apparel, office suppliers, packaging industry, toy industry and so on

Such as plastic body parts, car doors, car dashboard, lights, mirrors, sun visor, interior parts, filters, reflective material, reflective spike, bumper, cable motorcycle, plastic filter, radiator, tanks, pallet plates; Plastic electronics: prepaid water meters, communications equipment, atheism phone, mobile phone accessories, cell phone case, battery case, charger, maintenance valve regulated lead-acid batteries, 3-inch floppy disk, U disk, SD card, CF card, USD connectors, Bluetooth; Toys stationary: folder, album, folding boxes, pp hollow board, pen loops, ink cartridges, toner cartridges; medical dialy: watches, kitchen utensils, oral liquid bottle, drip caps, mobile phone accessories, gold soft brush, daily necessities, health supplies, children’s products, air mattresses, clothes hangers, tool holder, coffee pot, cover and civil speaker, grille metal surface

Polypropylene Plastic Welding Ultrasonic Welder of Characters

01: Japan original piezoceramic transducers, power output strong, stable

02: Special steel horn, strong and durable

03: linear Guide bearings, precision fine-tuning device perfornace

04: using welding head horizontal adjustable structure, convenient transfer mode

05: a frull range of high-quality imported components, quality assured

Detailed Images

Polypropylene Plastic Welding Ultrasonic Welder has 15khz and 20khz, but, for 20khz, its maximum power is 3200w, semi-crystalline material need strong ultrasonic energy in its bonding,15khz welder has maximum power 5200w, So, 15khz is usually proposed for big size of semi-crystalline material, keepleader has versatile models for option,such as table-top type, free-standing type, auto rotation indexing and horizontal, vertical type, in addition, we also can built integration of robotic arm for automatic loading and unloading, mount sound-proof cabin to reduce the ultrasonic sound in establishing cosy,clear and safe working environment
