Automatic foil hot printing machine for Security Seal printing Foil Hot Stamping of Security Seal Hot Foil Stamping Machine

Automatic foil hot printing machine for Security Seal

Automatic foil hot printing machine for Security Seal combined Configuration ♦1: Automatic loading ♦2: 2pcs slide-action dies ♦3:1pc die has 10pcs Holders ♦4:Automatic Customized Roller Die ♦5: Pneumatic pressed ♦6:Automatic Foil working device ♦7: Micro-computer Tmeperature control

Product description

security seal automatic foil hot stamping machine/ hot printing machine
Mainly Application
Hot stamping machine is used for logo, trademark, Series Number, production date in printing by hot stamping technology, also used for hot pressing, hot welding, hot sealing, hot embossing, hot impressing, hot forming, hot stamping, Available material: Plastic, rubber, solid wood, cable, wire, Chinese chess, leather, bamboo and etc, which are made of various commodities
Character
Auto slipway to feed stamping parts automatic Bottom mold can be one with many and customized shaped cavities operation panel has programmable logic control,so the working date is visual Temp controller supports hot plug, which is more convenient to replace Microprocessor control and pneumatic component drive for easy operation Flat and cylindrical shape stamping both are available Manual/semi-auto/auto operation available With function of foil winding and foil collecting Stamping pressure/temperature/speed all adjustable Structure solid and durable Pneumatic driven is durable and stable in movement No impact during the working to guarantee the stamping effect Two buttons triggered to run for safety purpose Assembled the pedal Switch for convenient operation Have function of self-counting in outputting
Mainly parameter
Model	KLS-100AT
Heating plate size	150*210mm
Working plate size	170*220mm
Pressure	100-500kgs
Maximum pressure	800kgs (made-to-order)
Stamping Stroke	300-500mm
Max. Work piece height	200mm
Piston Diameter	63-125mm
Air pipe	3/8PT
Air consumption	10L
Net Weight	180kgs
Heating power	1300w
Power	110/220V 60/50Hz
Max. Printing speed	1000 PCS/hr
Stamping pressure	Within 800kgsPls contact KEEPLEADER for more info and tech assistance,

KEEPLEADER has modified and designed Automatic foil hot printing machine for Security Seal to accommodate our customers' special and unique requirements, pls contact KEEPLEADER for more info and tech assistanc

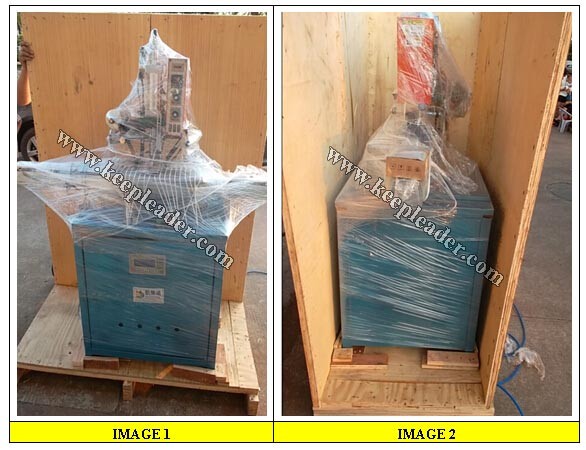

Packaging and shipment

Automatic foil hot printing machine for Security Seal is shipped by plywood case, Packing Volume: 2.0CBM, Gross Weight: 180kgs

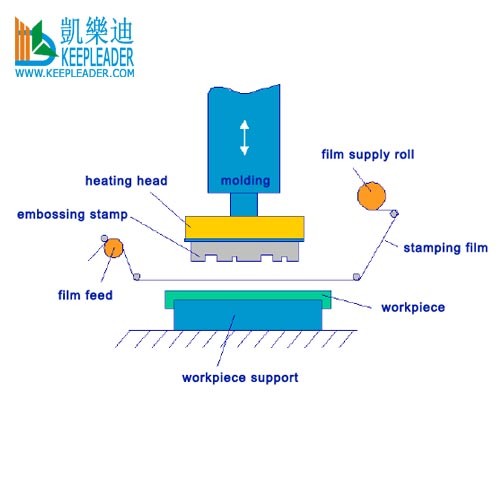

Technology

Automatic foil hot printing machine for Security Seal is golden stamping for security seal Logo_Sequence Number_Identification Marking

Product uses

Automatic foil hot printing machine for Security Seal can print Logo and sequence/ Serial Numbers

FRQ:

Q: Is KEEPLEADERTM a manufacturer or marketing company?

Ans: KEEPLEADERTM is professional supplier of design, building and marketing for over ten years, 70% machines built by ourselves; we also have cooperative partners in joining

Q: What materials can this machine stamp?

Ans: Leather, ceramic, wood, paper, plastic and fabric

Q: This machine is not proper; can I order voltage, pressure, size and etc?

Ans: yes, KEEPLEADER accept customized machine, we usually make to order

Q: if KEEPLEADER also offer the stamping foils and dies

Ans: Yes, KEEPLEADERTM is providing all peripherals and consumption

Q: What’s KEEPLAEDER payment term?

Ans: KEEPLEADERTM accept T/T, Western union

Q: What’s your package and delivery term?

Ans: plywood case, 7~15 days after payment

Q: What’s the guarantee term?

Ans: KEEPLEADERTM provide 1 year guarantee

Q: What service comes with the purchased Automatic foil hot printing machine for Security Seal

Ans: we provide "user manual", "train video", on-line support and life-long technial consultation
