HF PVC Welding Machine For Plastic Blister Paper Card Welding_Sealing oF Rotary PVC/PET Blister High Frequency Welding Machine

HF PVC Welding Machine For Plastic Blister Paper Card Welding

HF PVC Welding Machine For Plastic Blister Paper Card Welding

HF PVC Welding Machine For Plastic Blister Paper Card Welding is 1: semi-auto 2: Turntable 3: 3~15kw 4: Customized Mold for Blister Packaging

Machine Description


01:Parameter

Model

KLR-5000S/AE

KLR-8000S/AE

KLR-10KW

KLR-15KW

Power

5000W

8000W

10000W

15000W

Power Supply

380V 3P 50HZ

Frequency

27.12MHz

Input power

8KVA

15KVA

18KVA

25KVA

Rectifier

SILICON DIODE

Oscillation tube

7T85RB

7T69RB

E3069

8T85RB

Max pressure

350KG

500KG

800KG

1000KG

Gap of electrodes

200MM

Cylinder Stroke

100MM

upper electrode

200*350 MM

400*600 MM

500*700MM

600*900MM

upper electrode

400*600

600*800 MM

600*800

600*900MM

Welding time

0~10S Adjustable

Productivity

4000 times / 8h

Net Weight

280kgs

330kgs

360kgs

500kgs

Dimension

1*0.7*1.8 m

1*0.8*1.9 m

1*0.8*1.9 m

2.5*2.1*2m

02:Application

HF PVCwelding machine for Plastic Blister Paper Card Welding issemi-automatic turntable high frequency welding in PVC Blister sealing, PVCBlister sealing with paper card, is the basic and popular model in blister packaging, is also available for PET Packaging sealing without edge trimming,KEEPLEADER also offer the robot arm complied for automatic loading andunloading to save the labor cost and improve the productivity

03:Features

Arc suppressor: when sparks occur, the special electronic circuit on this machineworks automatically and cuts high frequency immediately to suppress arcs andminimize damage to electrodes and materials, alarm lamp also works simultaneously

Jamming prevention: Equipped with frequency stabilizer and high frequency magnetic suppressor,this device prevents leakage of electromagnetic radiation to avoid jammingother electric instruments such as televisions and radios etc

Safety device: When the current exceeds its limits, the overload relay functionsautomatically to protect oscillation tube and rectifier, frequency deviationcaused by disoperation is also prevented

Easily adjustable: Output power can be adjusted at the tuner according to electrodesize and material thickness, in addition, other control devices and specialelectrical circuit have cut down required welding time considerably to raisethe machine productivity

Adjustmentfor the distance on the machine head: Adjust the distance on the machine headif practical as the mold’s size and height are different, save working loadwhile processing accuracy can reach to 98%

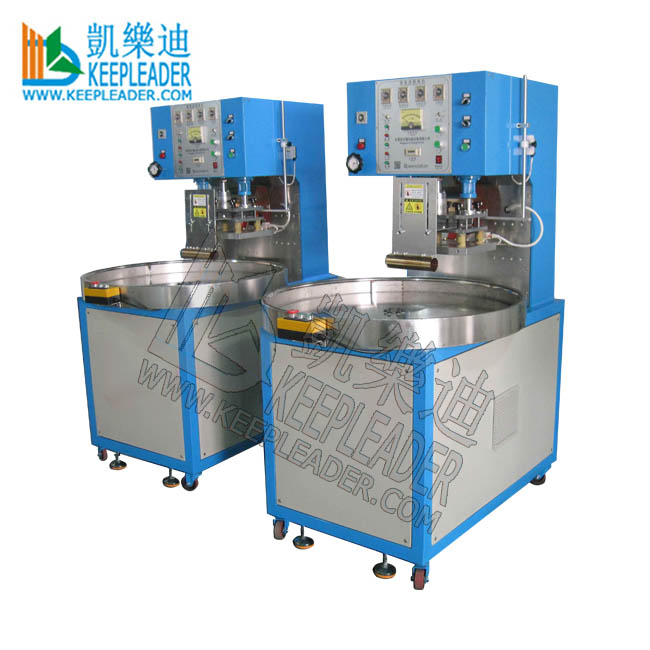

Detailed Images


HF PVC Welding Machine For Plastic Blister Paper Card Welding

HF PVC Welding Machine For Plastic Blister Paper Card Welding takes prominent features in #1: High Automation degree: auto turntable indexing with high frequency alternation; automatic robotic unloading device, auto loading paper card is available to combine a whole automatic production in blister packaging #2:Flexible operation: quick shift in auto and manual mode, close the automatic turntable, the working model also set manual stationary status as a free-standing model, touch screen is convenient accessed in setting, operation, reading with programmable logic control system #3: customized solution: support quick-changeover upper electrodes and bottom nests among different blisters/clamshell in shape and size, automatic feeding paper card and loading parts are acceptable in construction as per demands

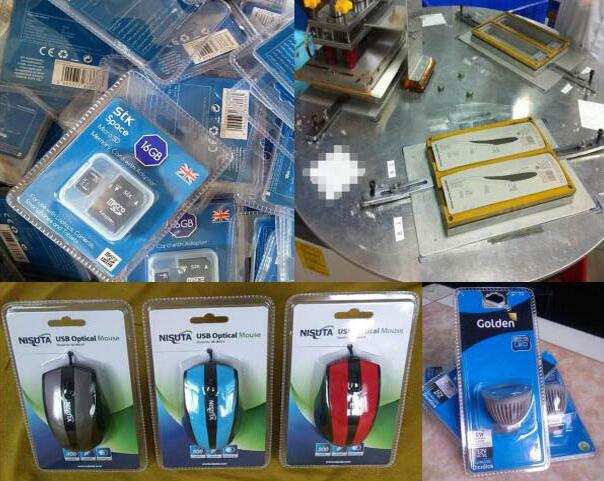

Product Uses


HF PVC Welding Machine For Plastic Blister Paper Card Welding

HF PVC Welding Machine For Plastic Blister Paper Card Welding adopts HF welding principle, which designed mainly for paper card and blister sealing, double blister welding, blister packages are widely applied in blister packages bonding of hardware, stationary, toys, electron, cosmetic, lighten, Pen, socket, injection, battery, toothbrush, lipstick, automotive parts, household applications, healthcare, and medical products, high frequency can exert edge-trimmed sealing achieve a good appearance in clear packaging market, which also can improve not only protective but also advertising effect, the sealing width, pattern both are available in specification

Our Service


Made machine as demanding, provide technical support and professionalsolution

Test the samples and confirm the performance

Arrange the shipment or work with nominated forwarder

One year guarantee for whole machine

24 hours technical support by E-mail, phone or video

Engineers available to service machine by overseas

Call or door to door service

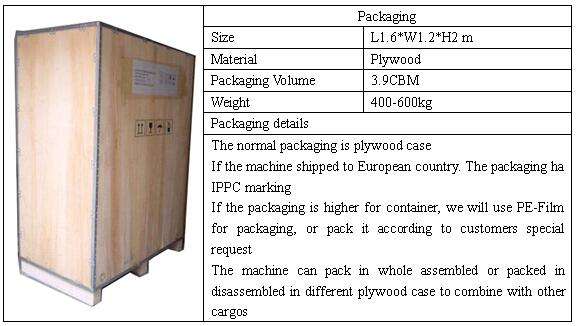

Packaging And Shipment


HF PVC Welding Machine For Plastic Blister Paper Card Welding

HF PVC Welding Machine For Plastic Blister Paper Card Welding has plywood case complied with oversea transportation in safety purpose, if you have special requirements, please confirm with us after your order

FAQ


01: How to install and operate the machine?

Ourmachine is easy to install and convenient to operate, the machine comes with usermanual and train video, we also provide on-line support, the machine is usuallyinstalled in plywood case, which is helpful to avoid further installation anddebugging, only need resetting when you need replace the mold and welding,anyway, we will provide technical support

02: How can you ensure the machine quality?

Thecomponents of this machine are re-known supplier, which can source all over theworld, the machine is also built under strict quality controlling system, wetest its performance before delivery, each step of process is under yourcontrol and confirmation

03: How can we do if the machine has defectedaccessories?

HF PVC Welding Machine for Plastic BlisterPaper Card Welding has one-year warranty, during this time, keepleader willprovide free parts to replace, and provide technical solution to ensure themachine can work again

04: Howabout your warranty

We can provide 12 months free replace accessories. Meanwhile we willprovide 2-3 sets free accessories when you purchase the machine. If possible,our engineer can go to overseas for fix your machine
