Plastic Hot Plate Welding Machine of Hot Plate Plastic Welding for Car Tank_Cap Lamp_Water Tank_Auto Bumper Hot Plastic Welding

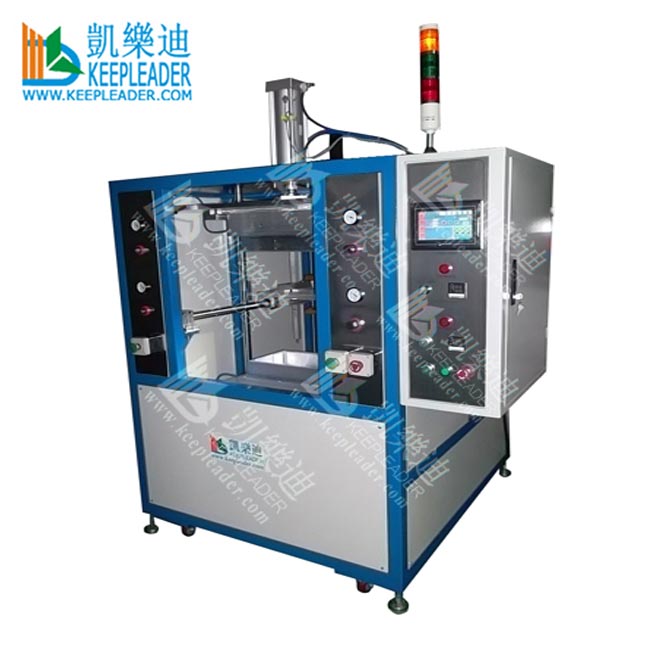

Plastic Hot Plate Welding Machine

Plastic Hot Plate Welding Machine has vertical and horizontal for option, the welding size is customized

Product description

Description	Precision Vertical hot-plate welding machine
model	KL-2030	KL-4050	KL-5060
power	5KW	15KW	20KW
voltage	380V/440V/3 phase	380V/440V	380V/440V
weight	850KGS	850KGS	850KGS
Size	150010251900	150010251900	150010251900
Working area	200*300	400*500	500*600
Productive	2-5pcs/minute	2-5pcs/minute	2-5pcs/minute
Pressure	Air pressure	Air pressure	Air pressure
Application of Hot plate welding machine/euipment
Hot Plate Welding Is Beneficial To Manufacturers Seeking To Join Thermoplastic Parts Where Both High-Strength And Hermetic Seals Are Required, Or Where Parts Have Complex Geometries, Such As Irregular Shape, Or Curved Or Internal Walls, pls contact KEEPLEADER™ for more its introduction in joint design Lights of car, water thanks, electric irons, washing machines of balance ring, auto toilet, hand shower,LCD/TV frame,dash board,battery,filter, coolant/oil tank,instrument cluster panel,door trim,bumper,engine cover, speak frame and other irregular and larger size plastic parts
Features and functions of hot plate welding machine
High stretch,hermetic weldng effect can make circular joint on welding line, which is not ok for ultrasonic welding dissimilar material welding is possible No consumables,fumes or missions and noise multistation/multi stage welders Easy operation, high efficiency, wide cope of application Achieving watertight and airtight welding Excellent for welding large or irregular work pieces PLC control, easy and convenient operation All the process date can controlled at the computer system, without mistake Digital PID temperature control function, resulting in more stable welding temperature Four columns support the design guide to ensure together, the level of accurate and well-bebaved staight strong mechanical structure. Brand big cylinder pressure to ensure sufficient stability when welding Welding large surface, by the effect of melting faster than the efficiency of solid good looking

Note: The parameter herein stated is manually measured, the actual machine has possibility in little difference, if have crucial demand in its application, please double check with our sales, only paper confirmed will be regarded as contracted obligation

please contact KEEPLEADER™ for more info and tech assistance

KEEPLEADER™ has designed and modified Plastic Hot Plate Welding Machine to accommodate our customers' unique and special requirements

Product uses

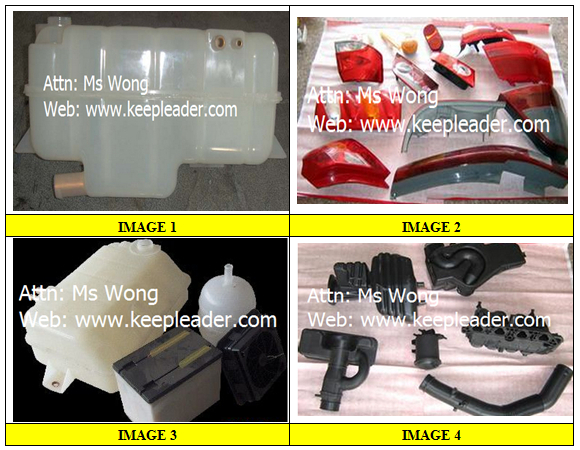

Plastic Hot Plate Welding Machine can weld ♦1:Oil/water Tank ♦2: Car Tank/Light/Lam ♦3: Automobile Bumper

Technology

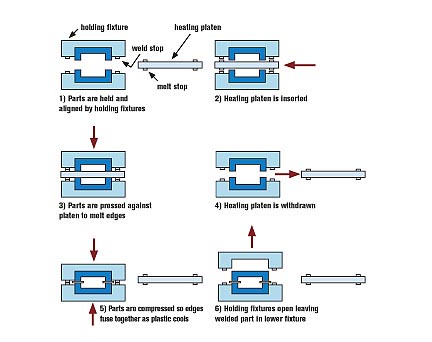

Plastic Hot Plate Welding Machine is one kind of hot melt thermofusing ♦1: Welding Time ♦2: Dwell Time ♦3: Welding Pressure ♦4: Melting Stop ♦5: Auto Loading & Unloading are most important in consideration

After service

After purchasing at KEEPLEADERTM is first step of our after-service, all of machines at KEEPLEADERTM has one year guarantee, we provide free samples for defected parts to do replacement except for human damage, under information for your notice

01: KEEPLEADERTM always posts the new technical file in our homepage that can help our client in new technical information of machines’ design, character, application, operation, maintenance, and related, KEEPLEADERTM also welcome our clients feed back the machines’ working condition that can get one to one service

02: If the machine you purchased has any defects, please contact sales representative at KEEPLEADERTM, we will assign our experienced engineer analyze your case and provide technical support, in case of damaged parts that cannot repair,KEEPLEADERTM will provide a new parts to replace the defect

03: For any replacement and maintenance, KEEPLEADERTM has user manual and training video

04: KEEPLEADERTM can go to oversea for on-site training

05: KEEPLEADERTM can provide electric diagram in necessary

06: Remote training is acceptable at KEEPLEADER™

07: Plastic Hot Plate Welding Machine has one year warranty, during its time, KEEPLEADER will provide free spare parts to replace defected components
