Automatic Cylinder Edge Curling Machine for PVC_PET Cylinder Making Edge Curling_Forming_Crimping of CylinderTube Edge Curling

Automatic Cylinder Edge Curling Machine for PVC_PET Cylinder Making Edge Curling_Forming_Crimping of CylinderTube Edge Curling

Plastic Cylinder Edge Curling Machine

Automatic Cylinder Edge Curling Machine for PVC_PET Cylinder Making Edge Curling to form the edge of PVC, PET cylindrical box/tube, Which can combined with  tube forming and bottom gluing/sealing machine to be a producion line

Machine Description


Automatic Cylinder Edge Curling Machine for PVC_PET CylinderMaking Edge Curling

01: Parameter

Model

KLY-2030

Power

4500w

Forming Length

80~350mm

Material Thickness

0.2~0.5mm

Power input

220V,50/60HZ

Driving Mode

Pneumatic

Air compressor

0.6Mpa

Forming Speed

3pcs / 6~8 seconds

Cylinder box diameter

40~200mm

Overall dimension

2100*1400*2300mm

02: Application

Automatic Cylinder Edge Curling Machine for PVC_PET CylinderMaking Edge Curling is mainly applied for automatic cylinder edge curling madeof plastic like PVC, APET, PETG, PP and other thermo plastic, also know asplastic cylinder automatic edge curling, plastic cylinder automatic crimping,automatic paper cylinder curling, PVC,PET cylinder box edge forming, curling,crimping with automatic loading and loading function, which can combined withcylinder tube forming machine to make various cylindrical box in packagingapplication

03: Character

Suitable for Clear/transparent PVC PET Cylindrical box tube edgecurling

Servo motor installed to drive the clamping, loading and unloading

Adopting precision linear bearing for transmitting device

Computerized heating thermostat to soften the cylinder tube ends inprecision

Automatic correction in positioning to accurate curling tube endedges

Dual sides curling in a circle of one with three

Three pieces of tube in edge curling in a circle

Combined with automatic tube forming machine in production line

Cylindrical box shape can be round, oval, trapezoid

Detailed Images

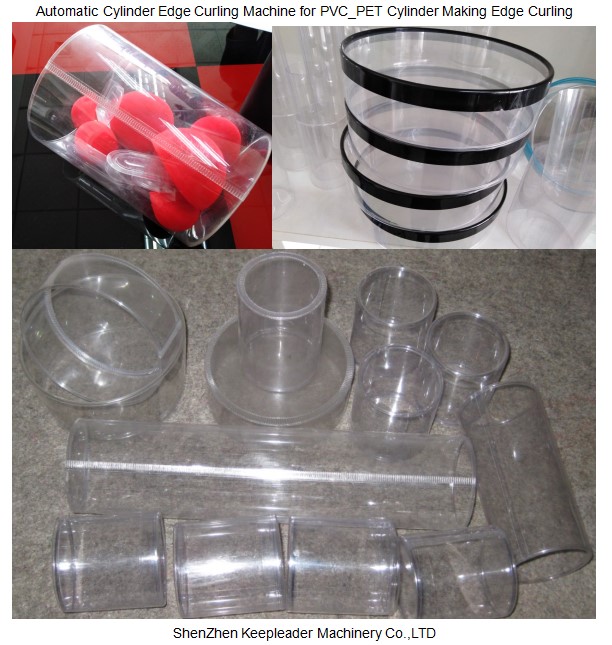

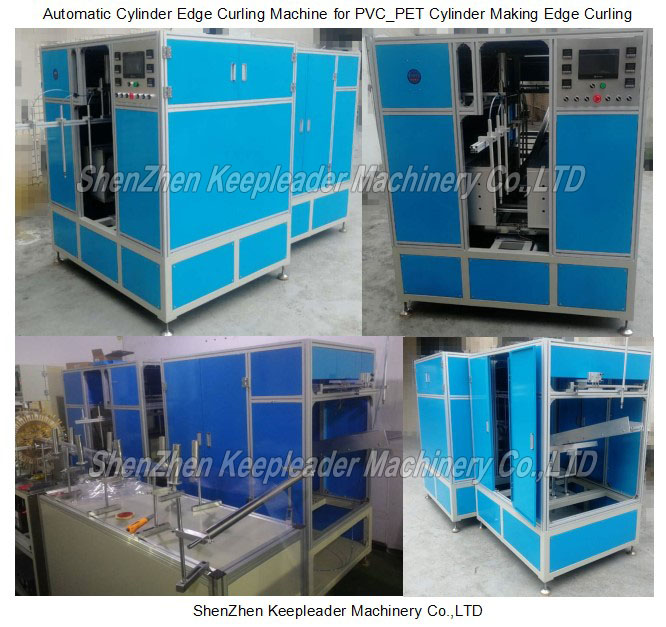

Automatic Cylinder Edge Curling Machine for PVC_PET Cylinder Making Edge Curling

For Automatic Cylinder Edge Curling Machine for PVC_PET Cylinder Making Edge Curling, the machine will come with workable mold. which will comply with your standard

Machine Uses


Automatic Cylinder Edge Curling Machine for PVC_PET Cylinder Making Edge Curling

For Automatic Cylinder Edge Curling Machine for PVC_PET Cylinder Making Edge Curling. pls tell us your cylindrical box size and provide its sample picture for tech evaluation

FAQ


How do you arrange the payment?

Re: Automatic cylinder edge curling machinewill packed into plywood case, the machine is fully installed intransportation, you can use it after receiving by sea freight , no need furtherinstallation or debugging

Is difficult to install the machine?

Re: The cylinder edge curling machine isinstalled in packaging, you just need to connect power supply and compressedair, and the mold mounted in one machine can comply with your differentdiameter cylinder tubes within size limited

How does end user operate the cylinder edgecurling machine?

Re: Automatic cylinder edge curling machinecomes with user manual and train video, keepleader also provide on linetechnical support in after-sales services

Does the cylinder edge curling machine needcompressed air?

Re: If your factory has compressed airsource, just need to connect your air source with machine, if not, please buy a2Psi~5Psi air compressor, if you need use hydraulic pressure, please inform uswhen you place your order

Does the cylinder edge curling machinepower voltage meet our factory power source?

Re: keepleader can make machine withvoltage complied with your power source,

If cylinder edge curling machine hasmold/die for your production?

Re: keepleader design and make moulds tomatch your different size
