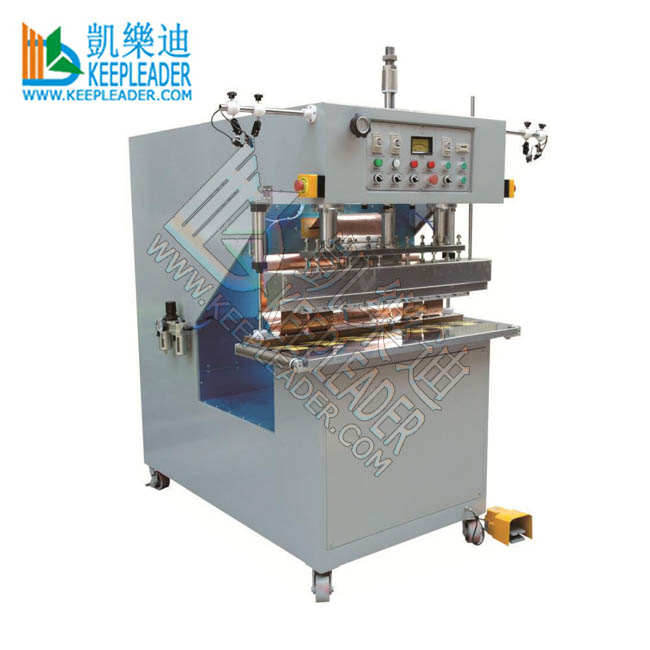

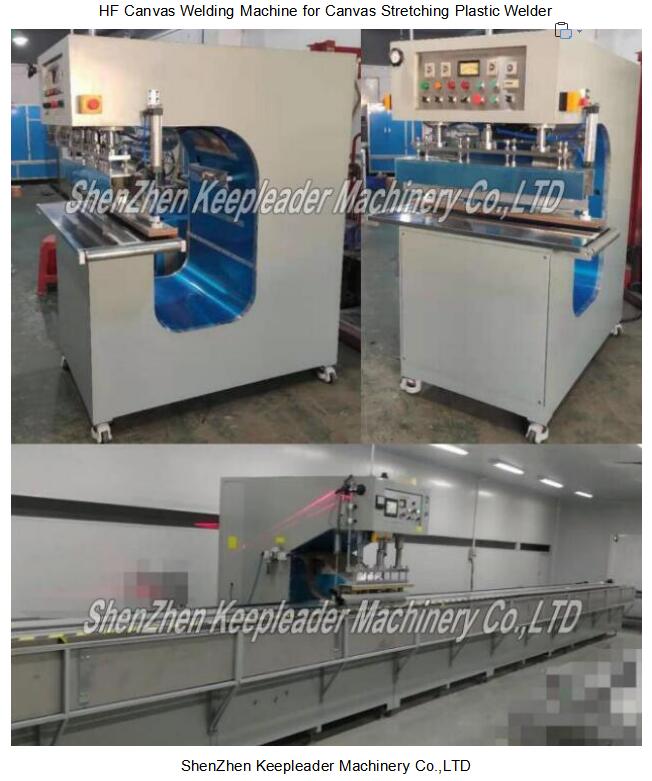

HF Canvas Welding Machine for Canvas Stretching Plastic Welder of High Frequency PVC Stretch Ceiling Canvas Welding Machine

HF Canvas Welding Machine for Canvas Stretching Plastic Welder

Mainly application

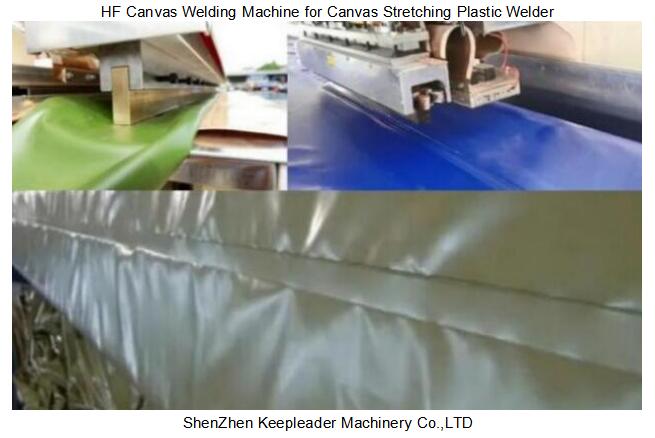

large format structural membranes, pool-liners, oil-booms, water cisterns, tarpaulin, tents, tensile structures, advertising billboards, spark protection cloth ,tent of truck, canvas of agricultural, canopy, swimming pool covers and other PVC/PU technical textiles, large PVC canvas/digesters/ fabric, computer advertising / printing/ Film cloth, the membrane structure, etc.

General Features

length, width, curve of welding electrode is optional and adjustable

square high frequency vibration box, more reliable and stable in output

Single line or two lines continue welding, welding length can be customized

CE rated machine; factory verified by SGS

Customer's site installation, training & maintenance available

pedal valve control in double side for easy operation

Customized work table dimensions, electrode holder dimensions, tooling

with laser light to make precision position

Servo-motor;  Touch screen programmable HMI / PLC

HF Filter unit available

Groove length is up to 1.5m, welding length is up to 50mm

Parameter

Model

KLR-8KW-SN

KLR-15KW-SN

Output Power

8000W

15000W

Anti-Spark

5557 High sensitive anti-spark system

Voltage

3P AC 380V 50Hz-60HZ or customize

Frequency

27.12MHz+/- 0,6 %

13.56MHz+/- 0,6 %

Input power

15KVA

25KVA

Rectifier

SILICON DIODE

Oscillation tube

7T69RB

8T85RB

Max pressure

500kg

1000kg

Operation mode

Pneumatic Operated

Max gap of electrodes

120mm

Size of active horn

100mm

100mm

Upper Electrode

100*800mm

100*1500mm

Size of Work Table

120*800mm

120*1500mm

Welding time

0.01~9.99s adjustable

0.01~9.99s adjustable

Net weight

800kgs

1000kgs
