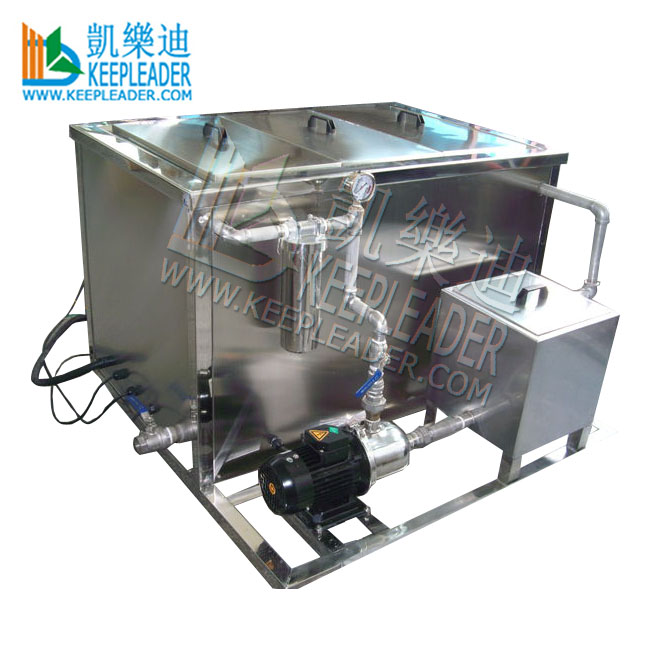

DPF Cleaning machine for Diesel Particulate Filter Ultrasonic Cleaning Machine of Automobile Parts DPF Cleaning

Ø         Application of DPF Filter ultrasonic cleaning

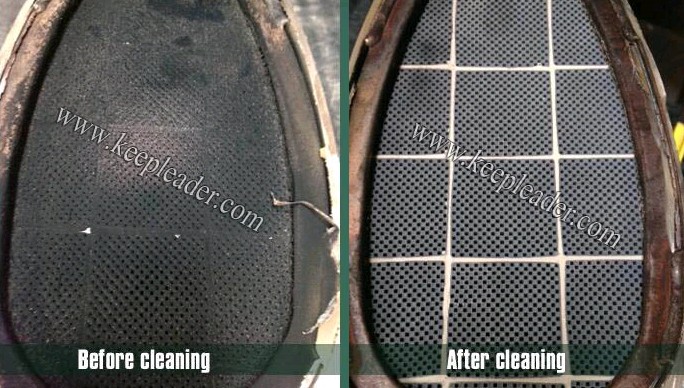

Do Cleaning for Diesel particulate filter, DFP filter cleaning, Motor, Car engine and peripheral engine parts, and other metal and hard plastic  parts in need of removeing oil, Carton, grease, oil,Polishing wax, dust and etc

Ø         Character

Auto frequency tracking function, which have advantage of automatic find the best ultrasonic performance for different cleaning parts

This machine can connect with remote control

All in one machine, Compacted design, which is easy operation

The machine has special access to do maintenance

Low voltage operation penal for safe operation

Ø                       Detailed parameter

Name

Model

KLE-1070R

 Vibrators

 70pcs

Auxiliary

Cleaning basket and heating

Ultrasonic power

3.5KW

Heating power

10KW

Vibrator standard

28khz/40khz,50W/60w/pc (optional)

Power supply

380V/220V,50HZ/60HZ (optional)

Size of inner cleaning tank

1000*700*650mm(L*W*H)

Size of outside

1500*1100*1200mm

Capacity

 450L (300L is available)

Control mode

Mechanical

Heating temperature

0 up to 110 adjustable

Vibration mode

Bottom vibration

Heating mode

Heating board at two sides

Cleaning basket

Stainless steel, the mesh over 10*10mm

Switch

Separated Power Switch, Ultrasonic SW and Heating SW

Configuration

Assembled Four Universal wheel

Separated lid/Cap

With cleaning Basket

Each generator has power wire of 5m

High Q value(NTK made in Japan) Vibrators

Stainless steel Drain valve assembled under the bottom

Automatic frequency tracking Generator

Over-current protection

Soft-start function

Ø                       Material OF ENGINE PARTS ULTRASONIC CLEANER

Inner cleaning tank

SUS304L,2.0mm

Vibrating side

SUS 304L,2.5mm

Surrounded outside

SUS 304L,1.0mm

Base support

Stainless steel Square tube 38mmx38mm,1.5mm

DC Connector

no, low voltage power connection

Ø                       Process standard of ultrasonic cleaner

Vibration side

Hard chrome plated over 0.05mm

Appearance

No glitches, no corners, smooth, beautiful

Inner cleaning tank

Well welded, upright, water-proof

Welding spot

No burn marks, welding marks after polishing

Fixed screw

Ball head smooth

Assembled mode of vibrator

Glued + Screwed

Heating rod

Well insulated, short-cut protected

Ø                       Free spare parts

Separated generator, heating rod, fuse

Ø                       Packing

Wooden case with pallet, easy operated by fork

Supported under the bottom avoid impacting during delivery

Stretch seal around
