PVC Tent High Frequency Welding Machine for Tarpaulin_Canvas_Truck Cover_Membrane Structure Military Tents Sealing HF/RF Welders

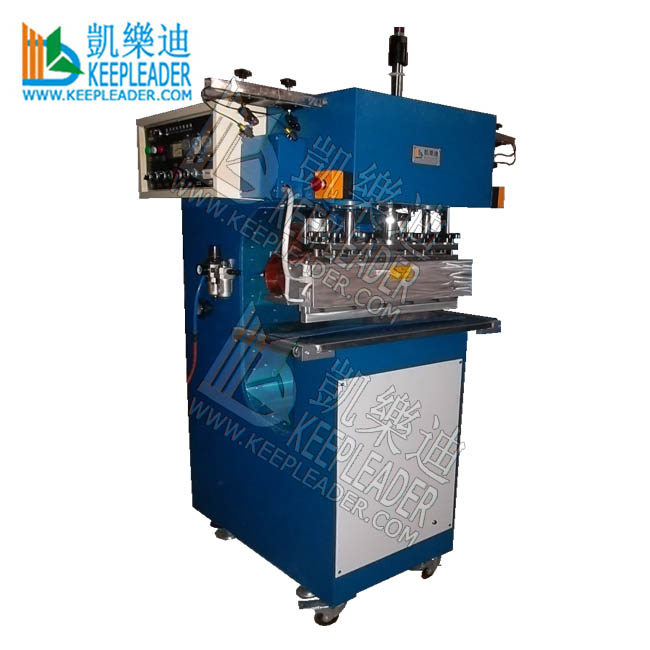

PVC Tent High Frequency Welding Machine

PVC Tent High Frequency Welding Machine has optional ranges of power output: 5kw~25kw depending on welding material and size, this free-standing model of 5kw has maximum length of electroded bar in a circle welding:600mm

Product description

Mainly application of PVC Tent High Frequency Welding Machine
Applied for tarpaulin, sun shading canvas, painting canvas, film curtain, canopy,awing,truck cover, car tent,stretch ceiling, sunshades and other around of this kind of membrane structure material welding or sealing
Character of PVC Tent High Frequency Welding Machine
High Q value oscillation tube the welding length is optional, maximum length:2000*25mm for 25kw The machine is G shape, have longer throat to hold the material High sensitive anti-sparkle device NL5557 to avoid damaging the mould. High quality imported apparatus European-model high frequency vibration box, more reliable and stable in output Laser position device for precision counterpoint Have boosting roller at two side for easy feeding materail Mounted five caster with four brakes Automatic thermostat to keep the temperature at best performance in welding High precision high frequency knob for visible control Low voltage control panel for safty purpose Anodized mould and tooling for longer life-span Top amounted cylinder for vertical pressing, which is more uniform pressure Foot pedal control and button control is optional Over current protection circuit to avoid burning the oscillation tube Power ranges 4kw up to 25kw for various welding length
Technique specifications of PVC Tent High Frequency Welding Machine
Model	KLR-5KW-SN
Power	5000W
Power supply	220V/380V 50/60HZ
Frequency	27.12MHZ
Input power	8KVA
Rectifier	SILICON DIODE
Oscillation tube	7T85RB
Max pressure	350kg
Gap of electrodes	100MM
Moving distance of active horn	100MM
Size of upper electrode	600*30MM
Size of down electrode	1000*300MM
Welding time	0~10S Adjustable
Net weight	500KG
Overall dimension	Customized

Standard equipment:

Name	Origin	Brand
Air driven components	Taiwan	Airtac
AC contactor	Korean	LG
Relay	Japan	Omron
Electron Tube	Japan	Toshiba
Time controller	Taiwan	CKC

* Note: The parameter herein stated is manually measured, the actual machine has possibility in little difference, if have crucial demand in its application, please double check with our sales, only paper confirmed will be regarded as contracted obligation

Please tell us following information:

❶ The material and definite size of the product;

❷ The maximum welding length in maximum

❸ The features you preferred on this machine

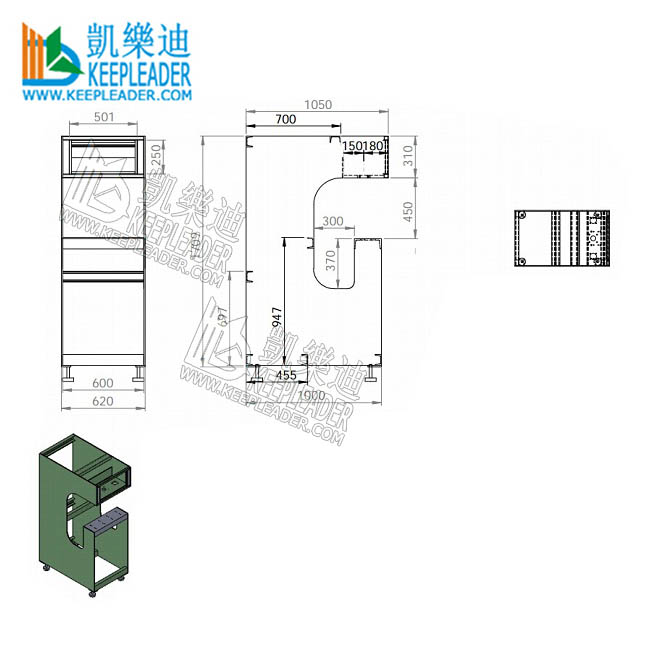

Size illustration

PVC Tent High Frequency Welding Machine contructs deep material-trough used for going through accumulated material in welding large-scale tent, its dimension can made to order

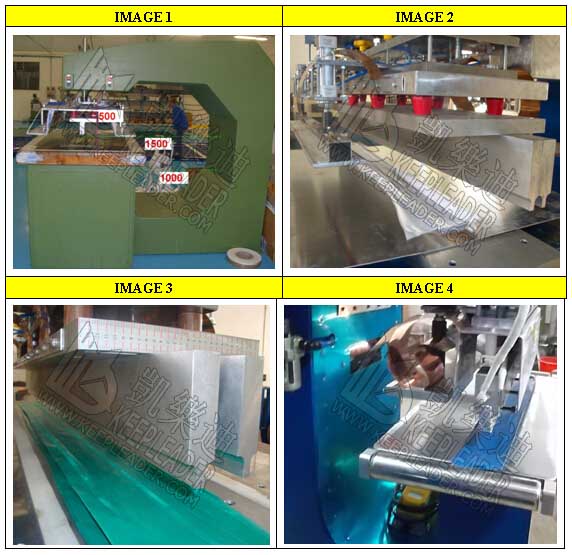

Detailed images

PVC Tent High Frequency Welding Machine has sailent features of #1: customized dimensional material-trough #2: Optional in single and dobule bonding line #3: adjustable welding width if two lines required #4: sliding assited rolls at two sides of working plate

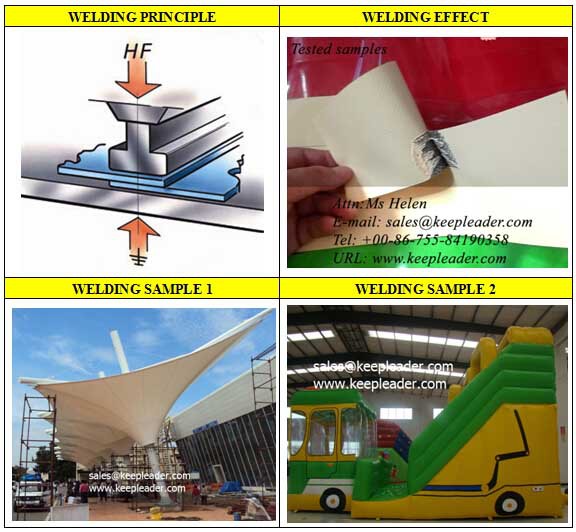

Product uses

PVC Tent High Frequency Welding Machine is available for seam sealing of PVC 20% more Fabric tent in fabricating Canvas, tarpaulin, membrane structure, stretched ceiling, truck cover, army, billboards, signs, military tents

FRQ

How can I buy good quality high frequency welding machine

Firstly: with on line or email conversation, to check the supplier is professional or not, if the supplier has ever supplied the similar machines to other buyer, will be better, don’t save time on studying, don’t stop asking questions before order, more time and efforts you spend, more you can get on the purchasing

What is the auxiliary equipment for high frequency welding machine?

It need one air compressor and necessary tooling, KEEPLEADER™ can also make the tooling according to your welding products, the buyer need to provide samples and 3D drawing

I never use high frequency welding machine before, how can I operate it?

For small machine, under 10kw, it is easy, KEEPLEADER™ will provide user manual and train video, also have on line service to resolve any problem

For big machine, example: 50~100kw, Engineers of KEEPLEADER™ will come to your country, help to install the machine, and train your workers. Buyer also can come to China 1~2 days for necessary Factory training before shipment
Does KEEPLEADER™ also makes the tooling?

Yes, KEEPLEADER™ has tooling department, can do customized, please provide samples and 3D drawing of igs format after order
What information does buyer need to provide in advance?

Please let KEEPLEADER™ know, 1: material, 2: thickness, 3: size of your products, 4: sample picture, 5: purchasing budget

Does KEEPLEADER has messenger for on line service

Skype: keepleader

Whatsapp:+86 13590415784

How long is the warranty time?

One year

PVC Tent High Frequency Welding Machine is affordable, reliable, compacted, free-standing HF/RF weldler of building small scale tarpaulin tent in verstatile solutions, thanks to our technical teams, they continue to learn from practical maufacturing, listen to conerns from our clients around the world, hope our experimental staff can work with your esteemed company into a promising cooperation
