PVC Tarpaulin Canvas Welding Making Machine for Canvas_Tent Making High Frequency Welding Machine of High Frequency Tent Making

PVC Tarpaulin Canvas Welding Making Machine for Canvas_Tent Making High Frequency Welding

PVC Tarpaulin Canvas Welding Making Machine for Canvas_Tent Making High Frequency Welding

PVC Tarpaulin Canvas Welding Making Machine for Canvas_Tent Making High Frequency Welding made as your ordered ♦1: Power 2: Configuration 3: Dimension 4: Function

Product Description


01: Parameter

PVC Tarpaulin Canvas Welding Making Machine for Canvas Tent Making High Frequency Welding

Model

KLR-5KWF

8KWF

12KWF

15KWF

25KFW

H.F Power

5kw

8kw

12kw

15kw

25kw

Anti-Sparkle

NL—5557 High sensitive anti-sparkle tube

Power Supply

AC 220V / 380V / 440V 50/60hz

Frequency

27.12MHz +/- 0,6 %

13.56MHz +/- 0,6 %

Input Power

8.5KVA

15KVA

18KVA

25KVA

35KVA

Rectifier

Silicon Diode

Oscillation

7T85RB

7T69RB

E3130

8T85RB

8T25RA

Pressure

350kw

500kg

800kg

1000kg

1500kg

Drive

Pneumatic operated

Travel

150mm

Max Gap

150mm

Top Electrode

50*50*50

50*50*600

50*50*800

50*50*900

50*50*1000

Welding time

0.01~9.99s adjustable

Net weight

700kgs

800kgs

900kgs

1100kgs

1400kgs

02: Application

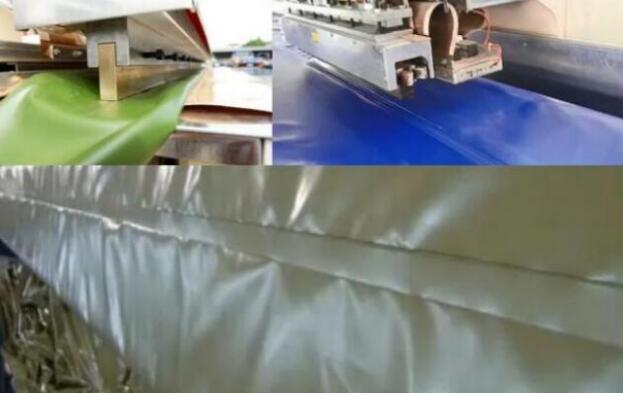

PVC Tarpaulin Canvas Welding Making Machine for Canvas_TentMaking High Frequency Welding applied for welding industrial canvas, PVC tent,PVC tarpaulin, PVC stretch ceiling, raincoat, inflatable toys, waterbed,large-scale advertising banner, awning, canopy, truck cover, sun shadingcanvas, painting canvas, film curtain and relatives for automatic step weldingand jointing laminate and bond up flat painting surface made of heat-meltedmaterial, such as outdoor, advertising poster, PVC cloth and PE fabric canvas,outdoor poster banner, plastic sheet surface

03: Tarpaulin/Canvas Welding Principle
PVC Tarpaulin Canvas Welding Making Machine for Canvas_Tent Making HighFrequency Welding only works with thermoplastic membranes structure that has ahigh dielectric constant, in this process, an electric field is generated nearthe overlap or hem, the direction of which is alternated approximatelytwenty-seven million times a second, every time the electric field changes, thedipole molecules of the polymer attempt to flip around the realign themselvesto the new field orientation, because this movement is impaired by inertial andfriction, the molecules do not flip in union, this constant relative movementof the molecules results in intermolecular friction which results in heat and,subsequently melting, high frequency tarpaulin/canvas welding typically hasweld cycle times from two to five seconds and can handle parts fromapproximately one-thousandths inches thick to fifty-thousandths inches thick,pneumatic driven pressure applied to solidify the jointing, solenoid valvetransmit the symbol of stroke distance under melting stop in precision control,the tarpaulin/canvas welding can perfect control the bounding strength

04: Characters of tarpaulin/canvas welding

Tarpaulin/Canvas Welding length and widthis adjustable by electrode bar changeover

Oscillation tube cavity of European-Model Squareshaped is more reliable and stable

Continue Tarpaulin/Canvas Welding of SingleLine or Two Lines, its length can be made as special request

Deep throat Stand of Steel Structure isrobust for big size Tarpaulin/Canvas welding

Customized Dimension of Tarpaulin/CanvasWorking bench, electrode bar and holder

Built-in Laser Guide Projectors at twosides for quick overlap position guidance

Adopting AME5557 high sensitiveanti-sparkle device to protect the electronic bar

PLC touch screen control, stretched tableor other functions can be customized

Zipper guidance is optional in building in

MFR: KEEPLEADER™ have modified and designed PVC Tarpaulin Canvas WeldingMaking Machine for Canvas Tent Making High Frequency Welding for our customers’ unique and special requirements, please contactKEEPLEADER™ for updated details

FAQ


01: What warranty we assure?

Ans: One Year, during this period, weprovide spare parts to replace the defect components

02: How to solve the technical problems?

KEEPLEADER has professional technician teamworking with our sales staff to solve the problems

03: How long is your delivery time?

PVC Tarpaulin Canvas Welding Making Machineusually need 15 business days in production, if need movable bench or haveother amendment, need extra 15 business days

04: How to ship the tarpaulin/canvaswelding machine?

The tarpaulin/canvas welding machine ispacked in plywood case in full installation, your can nominate your forwarder,or let keepleader arrange the shipment to your destination seaport

05: Can I have a custom tarpaulin/canvaswelding designed?

Yes, Customized power, function,configuration, dimension are acceptable, keepleader designs and construct eachproject to the individual customer’s need

06: Is there a minimum order requirement?

Keepleader doesn’t have minimum order requirements;you can order tarpaulin/canvas welding basing on your production

07: Is keep leader a trading company ormanufacturer?

We are professionally providingtarpaulin/canvas welding machine in design, building and technical support, andafter-sales service

08: If keepleader has stocked tarpaulin/vanvas welding machine?

For PVC Tarpaulin Canvas Welding Making Machine for Canvas_Tent Making High Frequency Welding, we just made as ordered, because, keepleader always want to joint customer's proposal in production, if you have urgent order, for standard model, we can try finish the production within one week
