Hot Air Tape Welding Machine for PVC PE Banner Hot Air Welding of Tarp Hot Air Taping And Welding Machine

Hot Air Tape Welding Machine for PVC PE Banner Hot Air Welding

Hot Air Tape Welding Machine for PVC PE Banner Hot Air Welding

This "Hot Air Tape Welding Machine" is basic model, if you need bench for convenient feeding, pls advise us to choose professioanl model for you

Machine Description

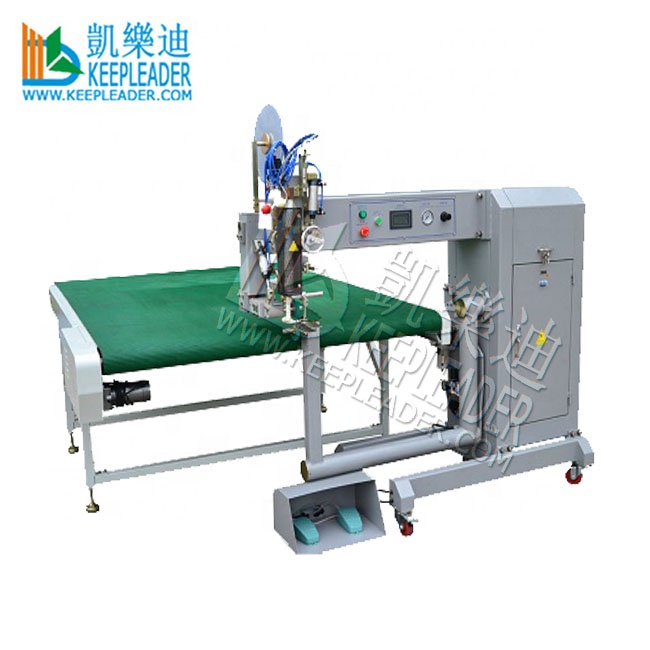

Hot Air Tape Welding Machine
Mainly introduction

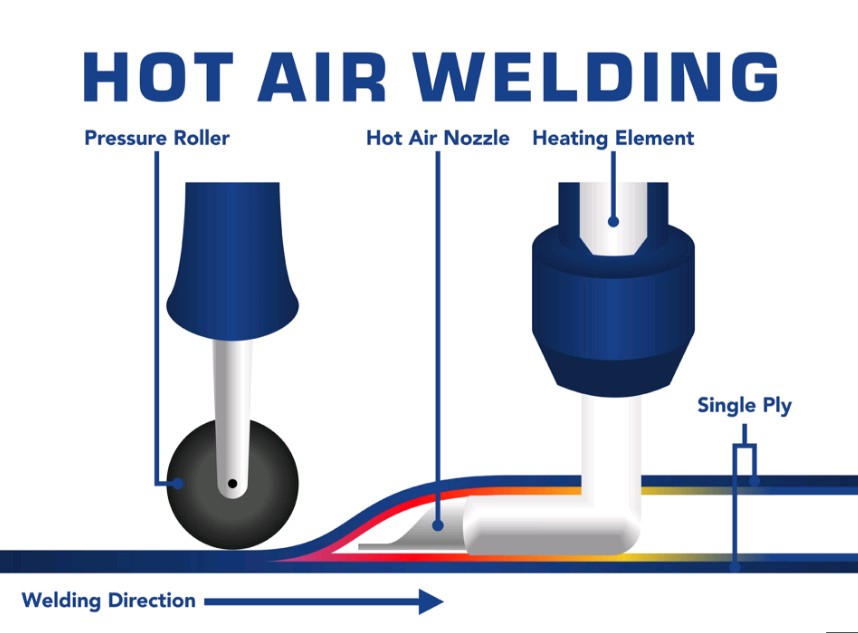

Hot air welding machine has unique advantage in inflatable products made of membranes structure, which is total different with high frequency welding and hot melt welding technology, the hot air is blew between the sealing surface, under necessary suitable pressure to get perfect welding effect, PVC, TUP material are all available, which are made to water polo, water drum, grass ball, inflatable swimming pool, large inflatable tents, inflatable boats, rubber boats and fishing boats and etc
Character
Suitable for any size of inflatable products made of PVC,TPU
PLC, Visible to operation, and convenient to reset parameter
Self-control temperature, the tolerance is within 2 degree
According to ergonomic design of dual-pedal control
Work around the clock, higher production efficiency
Special design of heating tube, hot air is filtered without moisture
Super-power design of large torque
Parameter
Model
KL-300
Power
3000w
Frequency
AC 220V,50hz
Temperature
0 to 700
Sealing speed
1 to 18m/min
Air pressure
0.35 to 0.5mpa
Pinch roller
30mm(optional)
Diameter of gun mouth
24mm/27mm (optional)
Roller stroke
18mm to 25mm
Overall size
1500*720*1600mm
Net weight
250kgs
MFR: KEEPLEADER™ has modified and designed Hot Air Tape Welding Machine to accommodate our customers'
unique and special requirements, pls contact KEEPLEADER™ for tech assessment
Detailed Images

Hot Air Tape Welding Machine for PVC PE Banner Hot Air Welding
Hot Air Tape Welding Machine has good quality of hot air generaor, which is most importnat for welding performance, pls contact us for more information
Machine Uses
Hot Air Tape Welding Machine for PVC PE Banner Hot Air Welding
 Hot Air Tape Welding Machine also can weld inflatable boat, waterproof boat, HDPE boat, and PVC fabric, tarpaulin, Canvas, tent, billboard, awning, canopy, sun shapdes any other PVC membrane, pls advise us your application for further technical evaluation

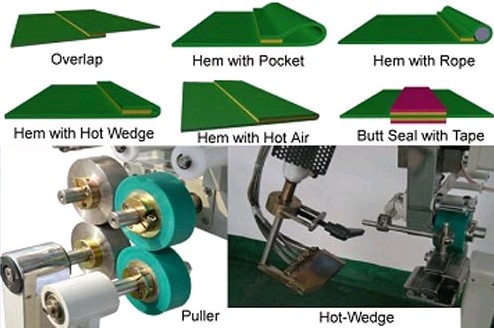

Technology
Hot Air Tape Welding Machine for PVC PE Banner Hot Air Welding
Hot Air Tape Welding Machine can weld in different lamination style, if you cannot find your preferred, pls confirm the possible solution with your expectation
Buying Guides
Hot Air Tape Welding Machine for PVC PE Banner Hot Air Welding
Contact Us

We welcome the opportunity to explain everylast details and all of the options available in fact, and. won’t waste yourtime and ours, our goal is to educate our potential customers and let them makean informed decision, please contact KEEPLEADER for more info Hot Air Tape Welding Machine for PVC PE Banner Hot Air Welding
