Movable High Frequency PVC tensile membrane Welding Machine for Tent_Fabric shades_PVC coated tarpaulin HF welding Machine

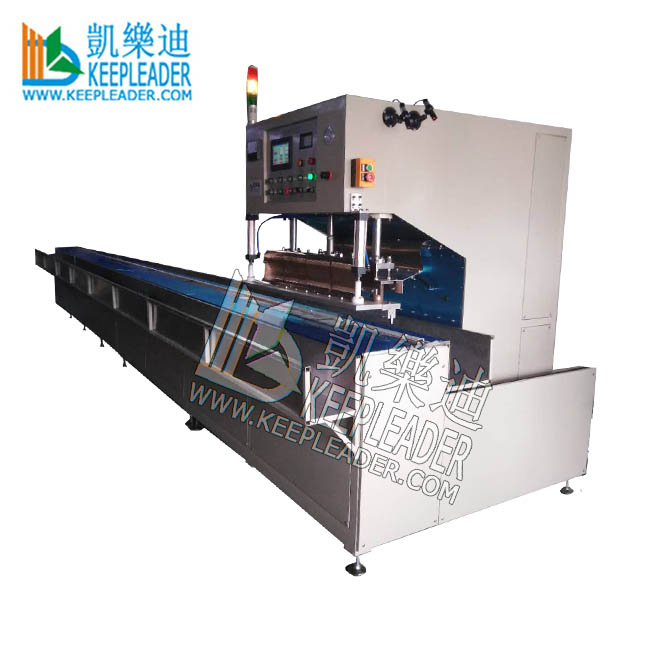

Movable High Frequency PVC tensile membrane Welding Machine

Movable High Frequency PVC tensile membrane Welding Machine is optional in #1: HF power #:  Size of electrode, Bench and Material trough #3: Function of Vacuum Bench, Positioning Guide and Servo Driven Pressing Down

Machine Description

Movable High Frequency PVC tensile membrane Welding Machine

01: Application

Movable High Frequency PVC tensile membrane Welding Machine is mainly used for welding awning, tent, car shed, stretch membrane film, space membrane, construction membrane structure, water bladder, pools, water bed, inflatable toys, hot air balloon, flexible tank, bridges water bags, military water bag, PVC shutter door, car tarpaulin, canvas, movie curtain, outdoor fabric film, outdoor awning, advertising printing cloth, billboard, advertising Cloth PVC Coated, movable high frequency welding head mounted in the rail, is capable for large size continuous welding in one line or two lines, for example: large format technical textiles, large covers for trucks and boats, membrane curtains for trucks, large swimming pool covers, temporary shelters, because of servo motor driven movement, the position, travelling, and working performance is more precision and smooth

02: Parameter

03: Character

HF Filter unit available

Vacuum bench is available

Auto-high frequency tuning technology

Precision straight bar welding up to 1500*50mm

Welding electrode temperature thermostat is optional

 Movable head designed for Linear welding large area material

Zip guides and Laser lighting overlap line for convenient position

PLC equipped operation panel, all parameter is visible and recorded

C frame/G frame welded steel structure with integrated HF generator

European-model square HF Vibration box, more reliable and stable output

Manual or automatic status optional, can be freestanding or continuous process

Customs size of material trough, electrode bar, stroke distance and bench length

servo motor driven on the linear bearing rails, movement is smooth and precision

The Bench has back and front trough to collect the material waiting for process

HF Limit scale tuning gauge built-in for precision control of high frequency output

Double operation system, Start and emergency stop Switch at two sides for quick access

Equipped with high-sensitive spark protection system, and over-current protection device

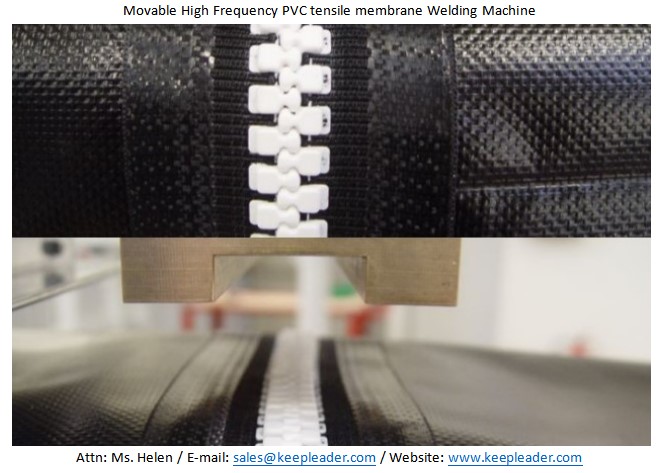

Movable High Frequency PVC tensile membrane Welding Machine can configure feeding guidance of zipper to achieve continous seam sealing

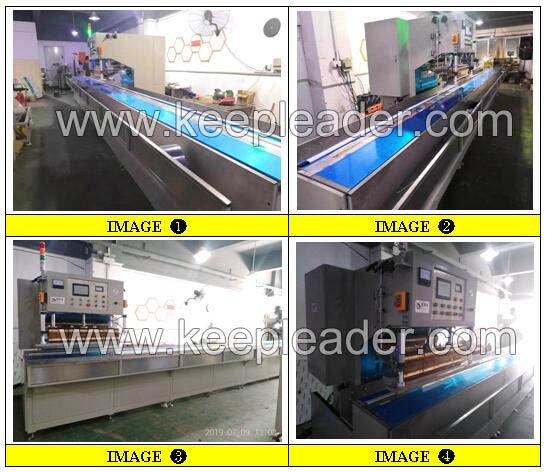

Detailed Image

Movable High Frequency PVC tensile membrane Welding Machine is designed in #1:Movable Bench #2: Zip guide #3: Dual material trough #4: Servo Motor Driven Linear Bearing  Rail #5: Laser projector

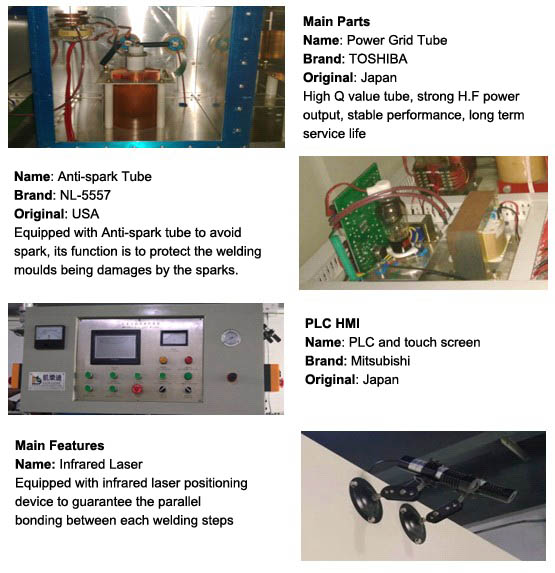

Main Parts

Movable High Frequency PVC tensile membrane Welding Machine is continous improvement which is combined our clients' practical processing experience

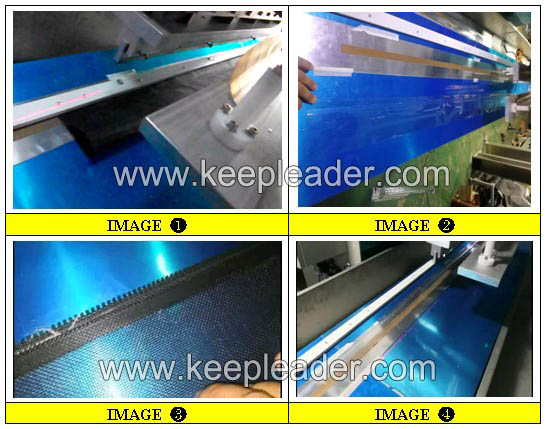

Product Effect

Movable High Frequency PVC tensile membrane Welding Machine is adjustable in #1: Welding time #2: Pressure #3: Cooling time resulting in the best performance

Product Uses

Movable High Frequency PVC tensile membrane Welding Machine can weld all flexible products made of PVC, PU, or fabric coated PVC and PU
