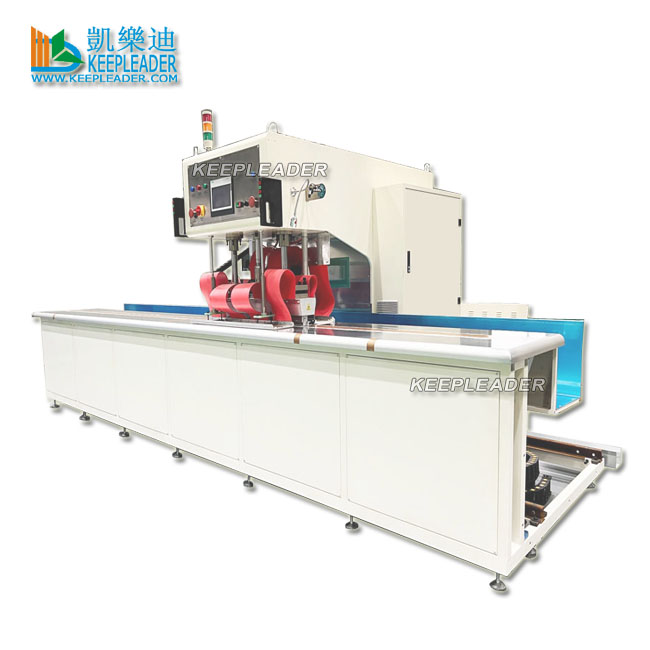

Automatic Mobile High Frequency PVC Pool Liners Welding Seam Sealing Machine

Automatic Mobile High Frequency PVC Pool Liners Welding Seam Sealing Machine

Automatic Mobile High Frequency PVC Pool Liners Welding Seam Sealing Machine can be customzied ♦1: Power 2: Table Length 3: Electrode Length & Width 4: Positioning Device 5: Components' brand  6: Stationary Frame

Machine Description


01: Application

High Frequency welding is the process of bonding membrane through the use of electromagnetic energy, High frequency electrode creates an oscillating electric field that begins to shift and move polar molecules within the materials in order to orient themselves in accordance with the electromagnetic field, the movement of these molecules releases energy in the form of heat, when enough energy is applied, the molecules begin to melt and bond, no external heat is applied, the weld is completed by applying pressure to the bonded area, ensuring a successful seal, Automatic Mobile High Frequency PVC Pool Liners Welding machine is especially designed for Large format structural membrane, pool liners, oil-booms, water cisterns, tarpaulin, tents, tensile structures, advertising billboards, tent of truck, canvas of agricultural canopy, swimming pool, large covers for trucks and boats, membrane curtains for trucks, temporary shelters, advertising signs, PVC stretch ceiling interior design elements, indoor and outdoor lightening fixtures,

Inflatable products, Airline hangars, and other PVC, PU, TPU Technical textiles, large PVC Canvas, digesters, fabric, Film, advertising, printing film cloth

02: Parameter

Name

Automatic Mobile High Frequency PVC Pool Liners Welding machine

Model

KLR-8KW-CB

KLR-12KW-CB

KLR-15KW-CB

KLR-25KW-CB

H.F Power

8kw

12kw

15kw

25kw

Line Voltage

220v,60hz or 380v,50hz* 3 phase

Frequency

27.12mhz

13.56mhz

Input Power

15KVA

20KVA

25KVA

35KVA

Rectifier

Silicon diode

Oscillation Tube

7T69RB

E3130

8T85RB

8T25RA

Max pressure

500kgs

800kgs

1000kgs

1500kgs

Operation Mode

Pneumatic operated

Electrode gap

150mm

Active horn

150mm

Upper electrode

50*50*800

50*50*900

50*50*900

50*50*1000

Work table

6 meters +N*3 meters, N is the customized quantities

Welding time

0.01~9.99s adjustable

Net weight

1500~2500lkgs

03: Character

Using the latest H.F technology from European and USA, The radiation emission is controlled

The combination of advanced electrical and mechanical technology integrated with a highly efficient H.F generator results in a machine that is durable and stable, user friendly, safe to use and each to maintain

Control by PLC Human interface which is user friendly

Sensitive anti-flash unit to protect High frequency welding electrode

Automatic mobile in High frequency welding, don’t need to move the material

Frequency inverter rail drive high frequency welding head

Linear ball bearing and servo motor drive for high precision continuous welding

Easy Material positioning with back trough and laser guides projectors

Steel structure for excellent strength and work ergonomics

Universal usage for PVC, PU, and TPU reinforced technical textiles

Single line or two lines continue welding; electrode’s length can be ordered as demanding

Equipped with high frequency magnetic leakage suppressor, which can avoid leaking waves?

Can be used as a freestanding or as a supplement to a larger system
04: Optional Features on request

High frequency filter unit available

Auto-high frequency tuning technology
Shape, length of high frequency welding electrode

Vacuum table available

High frequency welding electrode temperature thermostat

Main Parts


Automatic Mobile High Frequency PVC Pool Liners Welding Seam Sealing Machine

Automatic Mobile High Frequency PVC Pool Liners Welding Seam Sealing Machine is quality-oriented in its design and configuration, pls advise us if you cannot find you wanted

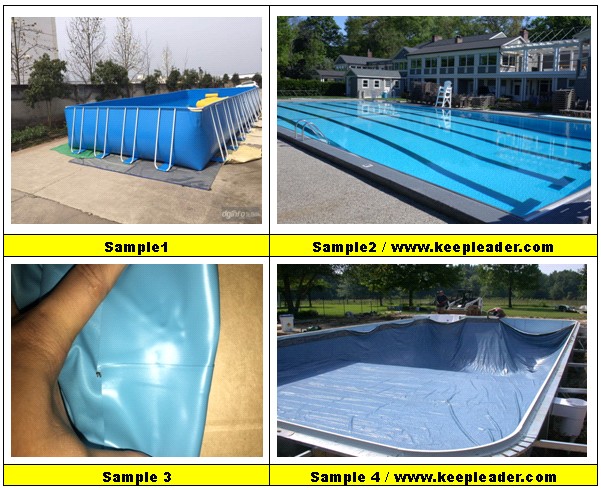

Product Uses


 Automatic Mobile High Frequency PVC Pool Liners Welding Seam Sealing Machine

Automatic Mobile High Frequency PVC Pool Liners Welding Seam Sealing Machine has mobile table, which is convenient for large PVC liner seam sealing

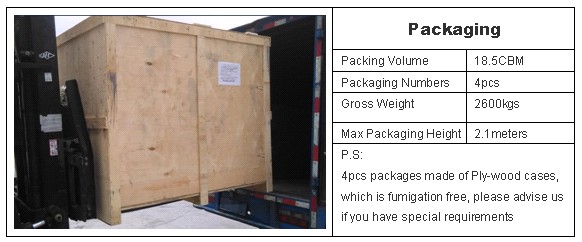

Packaging and shipment


Automatic Mobile High Frequency PVC Pool Liners Welding Seam Sealing Machine

Automatic Mobile High Frequency PVC Pool Liners Welding Seam Sealing Machine is obeyed international standard on its packaging and shipment, please advise us if you have any special demanding

Contact Us


We welcome the opportunity to explain every last details and all of the options available in fact, and. won’t waste your time and ours, our goal is to educate our potentialcustomers and let them make an informed decision, please contact KEEPLEADER for more info of Automatic Mobile High Frequency PVC Pool Liners Welding Seam Sealing Machine
