Auto Walking High Frequency PVC Membrane Curtains Welding Machine for Sun Shading_PVC Curtain Cloth_Sun Screen Seam H.F Welding

Auto Walking High Frequency PVC Membrane Curtains Welding

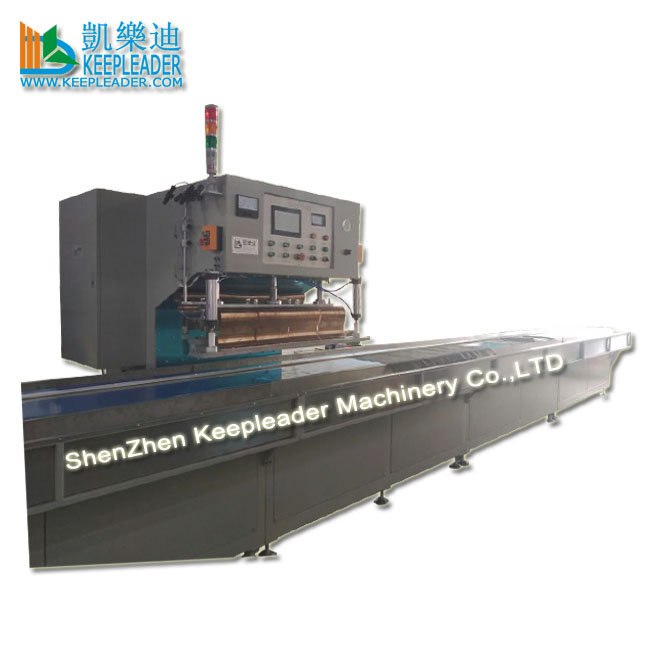

Auto Walking High Frequency PVC Membrane Curtains Welding Machine

Auto Walking High Frequency PVC Membrane Curtains Welding Machine has ♦1:customized table size, ♦2: H.F power ♦3: Optional Configurations made as demanding

Machine Description


01: Parameter

Name

Auto Walking High Frequency PVC Membrane Curtains Welding

Model

KLR-8KW-CB

KLR-15KW-CB

Output power

8kw

15kw

Anti-spark system

PL-5557 High sensitive anti-spark system

Voltage

3P AN 380V 50~60hz or made as requested

Frequency

27.12mhz

Input power

15kva

25kva

Rectifier

Silicone diode

Oscillation Tube

7T69RB

8T85RB

Max pressure

500kgs

1000kgs

Electrode gap

150mm

Active horn

150mm

Upper electrode

50*50*800mm

50*50*900mm

Welding time

0.01~9.99 adjustable

Productivity

According to welding times and operator skills

02: Application

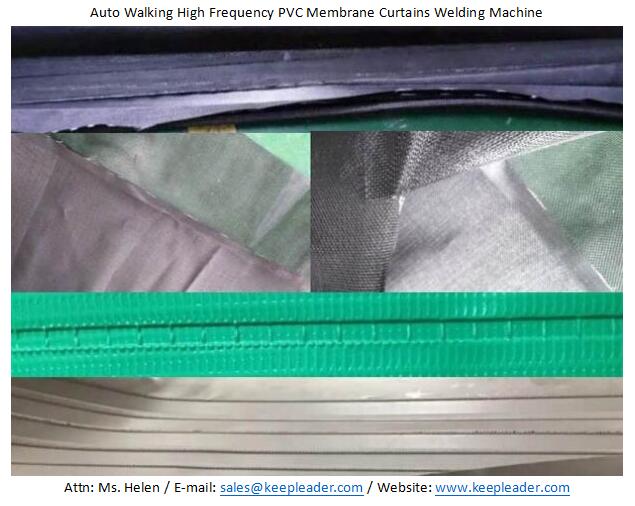

Auto Walking High Frequency PVC Membrane Curtains welding machine is especially designed for large format structural membranes curtains, sunshades, shading net, pool-liners, oil booms water cisterns, tarpaulin, tents, tensile structures, advertising billboards, spark protection cloth, truck tent, agricultural canvas, canopy, swimming pool covers and other PVC/PU Technical textiles, large PVC, automobile mats, inflatable boats, water beds, awning, canvas, fabric welding

03: Working principle

High Frequency PVC Membrane Curtains welding machine is using molecular vibration (friction heating) to provide uniform heating of PVC membrane Structural products, when the heat is transferred to the electrode (mold), the press can provide protection to the jointing surface, thus result in good welding performance, all materials which have polarity, such as soft PVC, Polyamide (PA), Polyester (PES), polyurethane (TPU), and some special TPO and some composite material can be welded with enough high frequency response or heating elements, as for non-frequency-respondent materials, such as textile, can be coated with high frequency-respondent material such as PU or PVC to enable high frequency welding, the other method is to apply a layer of hot melt glue on the non-frequency-respondent material, it can also provide a successful product welding in most cases

04: Characters

Auto walking style of welding head, continuously H.F welding

PLC touch screen and control panel of both systems can access the operation

Laser Guide projectors, projecting laser lines is visual guided for material positioning

Customized working tank dimension, electrode holder dimension and welding bar

Standard working bench has length 6m, which can add sect by each 3m as demanding

Components adopt international standard, stable performance, easy to source to replace

European-standard square high frequency vibration box, stable and strong output

Sensitive arc suppressor built-in to protect the power circuit and welding mold

Equipped with special high precision ball bearing linear motion gear, controlled by high frequency inverter and glide-on railing to achieve a perfect continuous straight line seam

Single line or dual lines continue welding, its length made as requested

Can be used as a freestanding machine for welding production or as supplement to a large system

Front and two sides of welding head have start and emergency stop for convenient operation

05: Optional Features on request:

H.F Filter unit available

Auto-high frequency tuning technology

Precision straight bar welding up to 1500*50mm

Vacuum table available

Welding electrode temperature thermostat

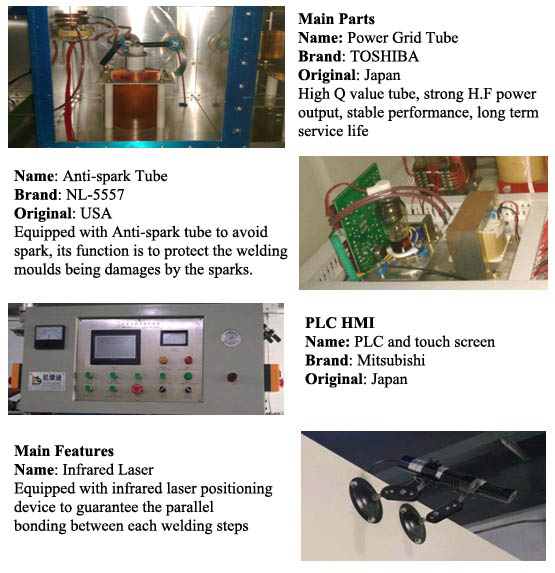

Main Parts


Auto Walking High Frequency PVC Membrane Curtains Welding Machine

Auto Walking High Frequency PVC Membrane Curtains Welding Machine also have other advanced compoments, if you cannot find your aimed parts, please confirm

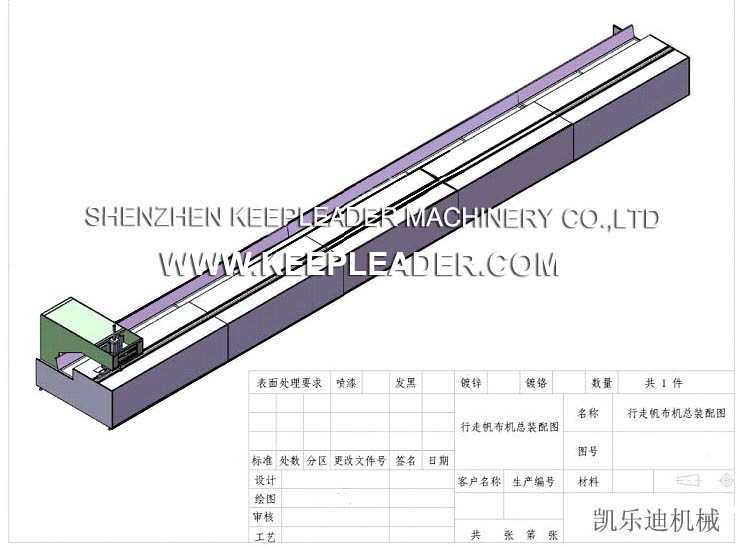

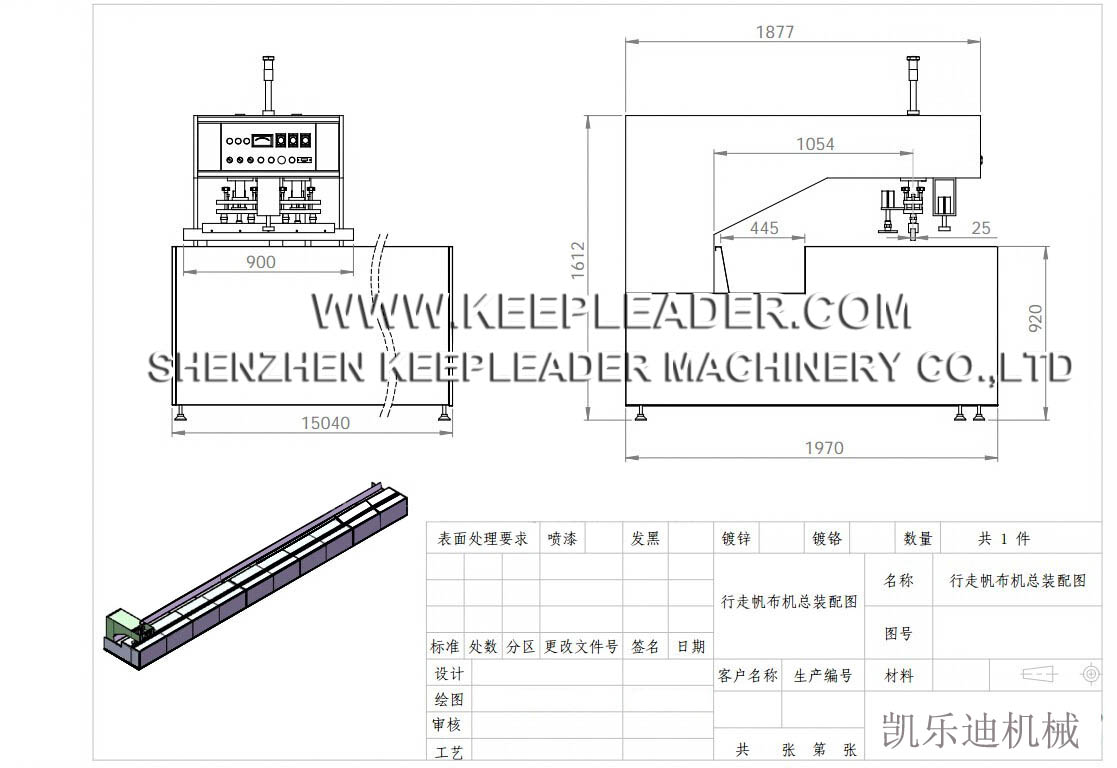

Drawing


Auto Walking High Frequency PVC Membrane Curtains Welding Machine

Auto Walking High Frequency PVC Membrane Curtains Welding Machine

Auto Walking High Frequency PVC Membrane Curtains Welding Machine has customized dimension of welding head, material groove and table length

Contact Us


We welcome the opportunity to explain every last details and all of the options available in fact, and. won’t waste your time and ours, our goal is to educate our potential customers and let them make an informed decision, please contact KEEPLEADER for more info of Auto Walking High Frequency PVC Membrane Curtains Welding Machine

Attn: Ms Helen

E-mail: sales@keepleader.com

Cellphone/Whatsapp: +86 13590415784

Tel: +86 755 84190358

Website: www.keepleader.com
