Plastic Door Curtain Making High Frequency Welding Machine for Megnetic Gate Door Curtain_Soft Door Curtain Automatic Welding

Plastic Door Curtain Making High Frequency Welding Machine

Plastic Door Curtain Making High Frequency Welding Machine

Plastic Door Curtain Making High Frequency Welding Machine has ♦1:Automatic unwinding, ♦2: transmission, ♦3: wrapping,♦ 4: welding and ♦5: rewinding

Description


Plastic door curtain making high frequency welding machine

01: Parameter

Model

KLR-8000G

High frequency power

8kw

Power input

15KVA

Rectifier

Silicon diode

Power supply

220V/60HZ or 380v/50hz*3p

Oscillation frequency

27.12mhz

Over-current protection

Automatic

Spark protection

NL5557 Arc suppressor

Oscillation Tube

7T69RB

Curtain width ranges

150~750mm

Overall size

1000*2000*2300mm

Pneumatic components

AirTAC

PLC

Siemens

Low voltage apparatus

 Schneider

02: Application

Plastic door curtain making high frequency welding machine is professional production line for magnetic door curtain making for its magnetic edge welding with plastic strip, welded PVC door curtain is more beautiful that the usual PVC curtain, the magnetic door curtain is mainly used in major shopping malls, supermarkets, warehouses, family hotel, restaurants, food processing plants, fresh processing enters, beverage processing plants, pharmaceutical plants, a variety of plants by insect repellent, a variety of health and safety areas and other public places, it also can block the invasion of cold wind in winter and keep the air-conditioned outside and mosquito invasion in summer

03: Working Principle

Plastic door curtain making machine adopts high frequency welding to seal magnetic edge at two side of transparent Plastic strip, this curtain making high frequency welding machine has roll feeding and unwinding device to save the foot space in automatic processing, the door curtain made of thermoplastic that have a high dielectric constant, in this process, an electric field is generated near the joint of plastic trip and magnetic edge, the direction of which is alternated approximately twenty-seven million times a second, every time the electric field changes, the dipole molecules of the plastic curtain attempt to flip around the realign themselves to the new field orientation, because this movement is impaired by inertia and friction, the molecules do not flip in union, this constant relative movement of the molecules results in intermolecular friction which result in heat and subsequently, melting, high frequency welding for plastic door curtain making has best performance in robust and water-poof sealing of curtain strip and magnetic edge

04: Character

Curtain strip Welding Width is adjustable from 150~750mm

Automatic unwinding, transmission, wrapping, welding and rewinding

Transmission clamping force, distance is adjustable in precision

High frequency cabinet is integrated with the mainframe to save the floor space to the maximum

Built-in high sensitive spark suppressor to test the mold and oscillation tube

Line filter protection avoids electric field radiation so that the equipment operates stably

Detailed Images


Plastic Door Curtain Making High Frequency Welding Machine

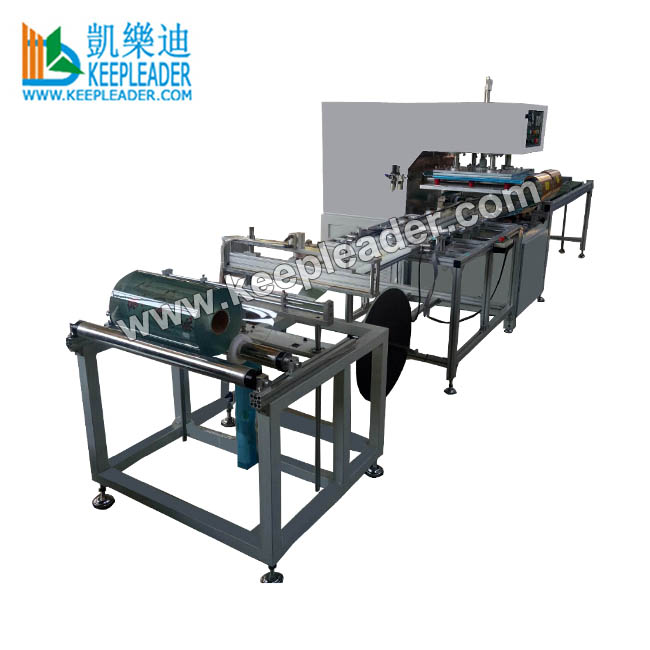

Plastic Door Curtain Making High Frequency Welding Machine comes with transmission table, automatic feeding, winding and unwelding and necessary tooling for ready working

Product Uses


Plastic Door Curtain Making High Frequency Welding Machine

Plastic Door Curtain Making High Frequency Welding Machine

Plastic Door Curtain Making High Frequency Welding Machine can weld the magnetic edge with PVC Door Curtain at Width:150~650mm

Our service


Pre-sales Service

KEEPLEADER can make specialized solutions according to your practical process

According the solutions, we will make a reasonable investment budget for our clients, which will be not only save money, but also have good efficiency \

We will provide the mounting dimension of machine base, design of equipment layout, workshop ventilation and human resources allocation and budgeting

In-sales Service

Detailed design of lay-out that is the position of the procession

Technological information of provided machine

Schedule about design, manufacturing and installation

Working and producing progression

After-sales service

Our machine has 12 months warranty except the consumable parts

Our Engineers is available to service aboard so that our clients can be helped with installation and maintenance

Before delivery, our engineers will test every machine to make sure that our machines can work with the best performance

Plastic Door Curtain Making High Frequency Welding Machine has manual and automatic type, which can be buit with your practical process
