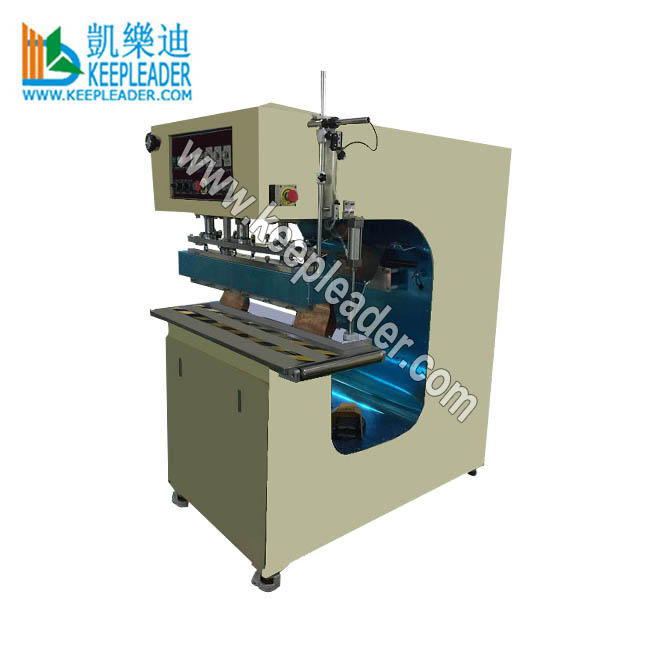

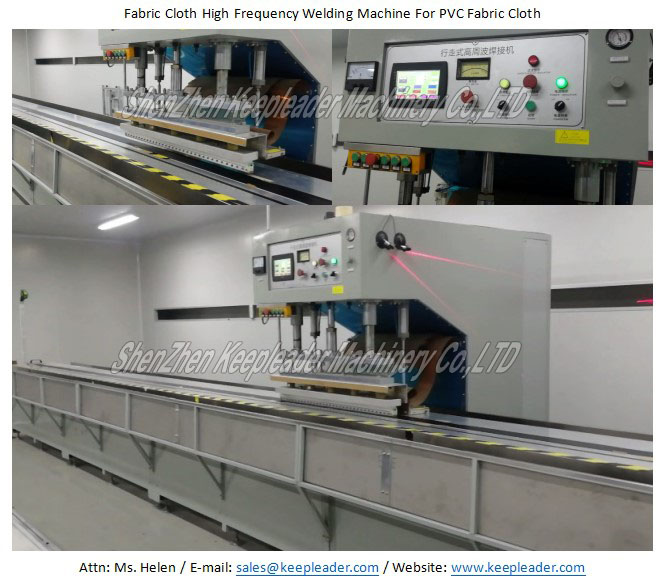

Fabric Cloth High Frequency Welding Machine For PVC Fabric Cloth

Mainly application

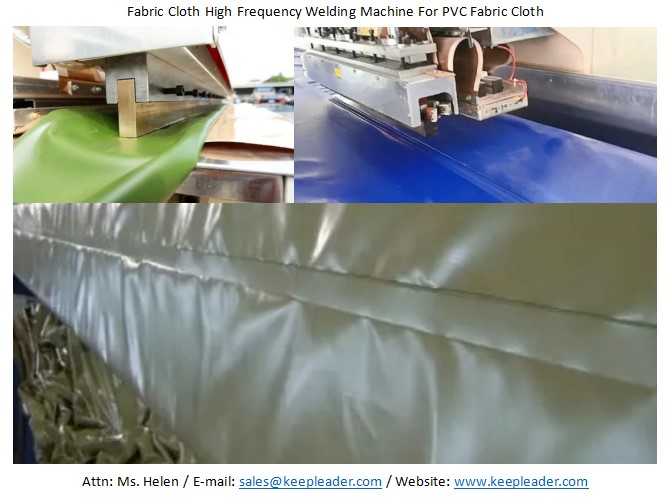

large format structural membranes, pool-liners, oil-booms, water cisterns, tarpaulin, tents, tensile structures, advertising billboards, spark protection cloth ,tent of truck, canvas of agricultural, canopy, swimming pool covers and other PVC/PU technical textiles, large PVC canvas/digesters/ fabric, computer advertising / printing/ Film cloth, the membrane structure, etc.

General Features

length, width, curve of welding electrode is optional and adjustable

square high frequency vibration box, more reliable and stable in output

Single line or two lines continue welding, welding length can be customized

CE rated machine; factory verified by SGS

Customer's site installation, training & maintenance available

pedal valve control in double side for easy operation

Customized work table dimensions, electrode holder dimensions, tooling

with laser light to make precision position

Servo-motor;  Touch screen programmable HMI / PLC

HF Filter unit available

Groove length is up to 1.5m, welding length is up to 50mm

Parameter

Model

KLR-15KW-SN

KLR-25KW-SN

Output Power

15000W

25000W

Anti-Spark

U.S.A. PL-5557 High sensitive anti-spark system

Voltage

3P AC 380V 50Hz-60HZ or customize

Frequency

13.56MHz+/- 0,6 %

Input power

15KVA

35KVA

Rectifier

SILICON DIODE

Oscillation tube

8T85RB

8T25RA

Max pressure

1000kg

1500kg

Operation mode

Pneumatic Operated

Max gap of electrodes

100mm

Size of active horn

100mm

Upper Electrode

200*1300mm

200*1500mm

Size of Work Table

200*1350mm

200*1550mm

Welding time

0.01~9.99s adjustable

Net weight

1500kgs

1400kgs

Net length

1500mm
