PVC_PU Profile Cleat_Sidewall Welding Machine for Conveyor Belt High Frequency Welding of Conveyor Belt High Frequency Welding

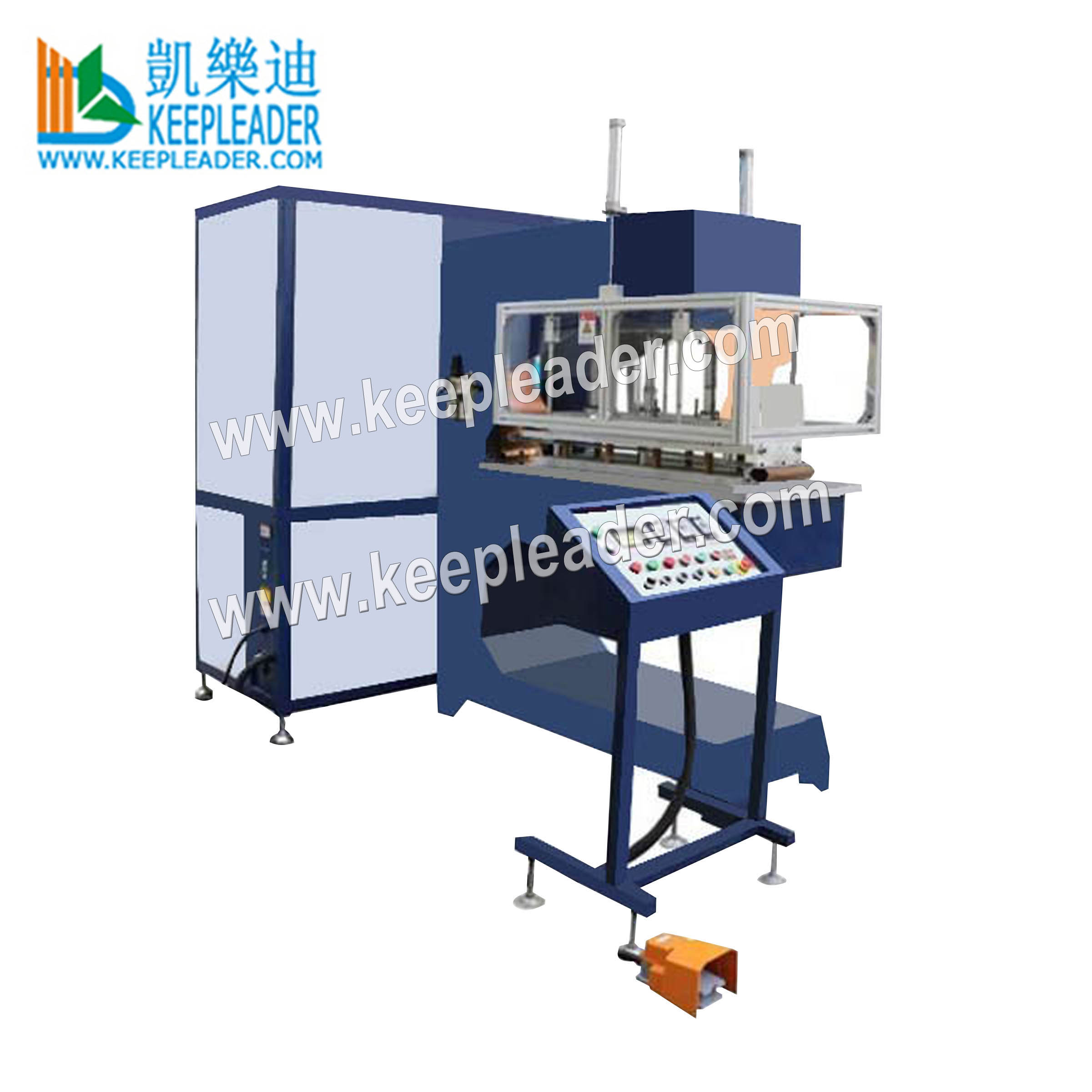

PVC_PU Profile Cleat_Sidewall Welding Machine for Conveyor Belt

PVC_PU Profile Cleat_Sidewall Welding Machine for Conveyor Belt

The most important factors influence PVC_PU Profile Cleat_Sidewall Welding Machine for Conveyor Belt: #1: electrical power #2: pressure applied #3: welding time #4: cooling time, Finding the optimal process parameters will depends on your specific equipment, the PVC,PU involve and the specific geometries including thickness, size and area to be welded, achieving optimal results is often an experimental process guided by experience, as a guiding rule, the thicker material and focus on short welding times you need, the stronger electrical power you need

Product Description


01: Application

PVC_PU Profile Cleat _Sidewall Welding Machine for Conveyor Belt is designed specially for production of industrial belt, transmission belt, PVC/TPU conveyor belt of PVC/PU sidewall, PVC_PU profile, PVC_PU cleat, PVC/PU steps, PVC_PU treadmill, PVC and PU guides, T-Cleat, treadmill belt, this conveyor belt welding utilizes high frequency (H.F/R.F welding) electromagnetic field to make its internal molecular rearrange without outside heated, the effect of welding is more firm and beautiful, the bonding strength can reach, even over strength of raw material

02: Parameter

Name

PVC_PU Profile Cleat _Sidewall Welding Machine for Conveyor Belt

Model

KLR-8KWC

KLR-15KWC

KLR-25KWC

KLR-35KWC

Power

8kw

15kw

25kw

35kw

Voltage

380v~420v, 50hz or 210~240v,60hz* three phase

Frequency

27.12MHz

13.56MHz

Input Power

15KVA

25KVA

35KVA

50KVA

Rectifier

Silicon diode

Throat depth

1150mm

Oscillation tube

7T69RB

8T85RB

8T25RA

8T87RB

Max pressure

800kg

1000kg

1500kg

1500kg

Operation mode

Pneumatic

Electrode distance

150mm

Moving distance

150mm

Upper electrode

150*500mm

150*600mm

150*700mm

150*800mm

Lower electrode

250*650mm

250*750mm

250*850mm

250*950mm

Welding time

0.01~9.99s

Net weight

1200kgs

1500kgs

1800kgs

2000kgs

Dimension

1.6*1.48*1.74

1.7*1.48*1.74

1.98*1.48*2.35

2.05*1.48*2.5

03: Character

Firmly welding for PVC, PU, PET profiles belt welding

Deep and wide groove design is convenient for large area in continuous welding

Auto detecting cooling performance can well protect the oscillation tube

Adopting high sensitive anti-sparkle device to avoid damaging the mold

All of apparatus are in compliance with international standard for convenient replacement

The longest welding extended to 800-1000mm one time

Ground-press platen is behind welding tooling good for operation and to protect the workers from hurt hands

With hanging head for welding without barrier of the machine, it is convenient for operation

With high frequency stabilizer and shielding device to keep the H.F interference at lowest level

Tooling


PVC_PU Profile Cleat_Sidewall Welding Machine for Conveyor Belt

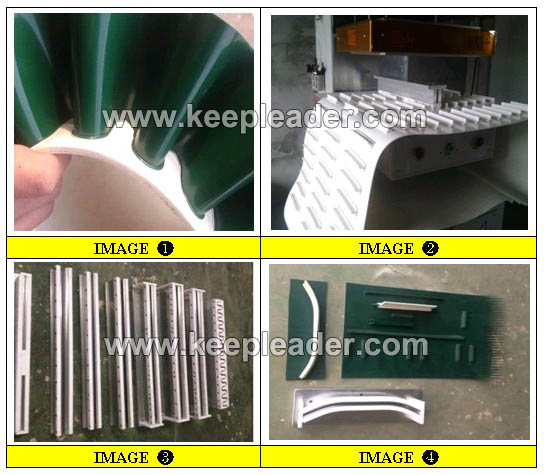

PVC_PU Profile Cleat_Sidewall Welding Machine for Conveyor Belt can have #1:T-Cleats tooling #2: sidewall tooling #3: Curve Guides tooling

Detailed Images


PVC_PU Profile Cleat_Sidewall Welding Machine for Conveyor Belt

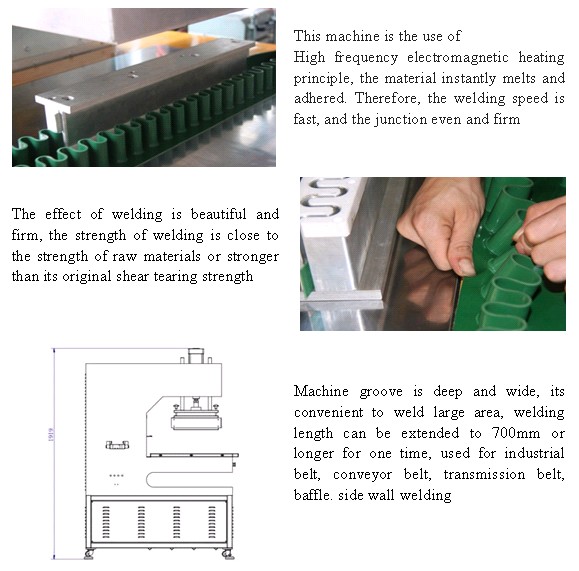

PVC_PU Profile Cleat_Sidewall Welding Machine for Conveyor Belt has quick mounted tooling or changeover tooling for welding in various shape and size

Product Uses


PVC_PU Profile Cleat_Sidewall Welding Machine for Conveyor Belt

PVC_PU Profile Cleat_Sidewall Welding Machine for Conveyor Belt utilizes H.F electromagnetic field applied molecular friction in rearrangment without outside heating, so the melting and bounding is achieved from inside

Contact Us


We welcome the opportunity to explain every last details and all of the options available in fact, and. won’t waste your time and ours, our goal is to educate our potential customers and let them make an informed decision, please contact KEEPLEADER for more info of PVC_PU Profile Cleat_Sidewall Welding Machine for Conveyor Belt

Attn: Ms Helen

E-mail: sales@keepleader.com

Cellphone/Whatsapp: +86 13590415784

Tel: +86 755 84190358

Website: www.keepleader.com
