Automatic High Frequency PVC Bag Welding Machine for Plastic Bag_Book Cover_PVC Inner Page Making High Frequency Welding Machine

Automatic High Frequency PVC Bag Welding Machine

Automatic High Frequency PVC Bag Welding Machine for Plastic Bag_Book Cover_PVC Inner Page Making High Frequency Welding Machine

This Automatic High Frequency PVC Bag Welding Machine is extensively acknowledged by our customers owing to its trouble free performance and functionality

Machine Description


01: Application

Automatic High Frequency PVC Bag Welding Machine is applied for PVC welding and cutting for book cover, name card, soft transparent bags, inner pages, folding bag and many other membrane structure bags, sleeves, pockets with various shapes

02: Parameter

Name

Automatic High Frequency PVC Bag Welding Machine

Model

KLR-8000G

KLR-12KWG

KLR-15KWG

Power

8kw

12kw

15kw

Input Power

15KVA

20KVA

25KVA

Voltage

3 phase 220v/380v 50/60hz or customized

Frequency

27.12MHz

Rectifier

Silicon Diode

Oscillation Tube

7T69RB

E3130RB

8T85RB

Maximum Pressure

600kg

750kg

1000kg

Operation mode

Pneumatic

Electrode distance

150mm

Pressing Stroke

150mm

Upper Electrode

500*700mm

500*700mm

700*800mm

Lower electrode

30~300 degree adjustable

Temperature range

0~10s adjustable

Productivity

Equal or less 6000times/8h

Net weight

1600~2000kgs

Dimension

5500*1850*1950mm

03: Characters

PLC programming touch screen to control the operation and resetting

Built-in Arc suppressor to protect the high frequency electrode

Jamming prevention device, which is also called H.F stabilizer and H.F magnetic leakage suppressor, this device prevents leakages of electric magnetic radiation to avoid jamming other electrical instruments

H.F stabilizer and high frequency shield to reduce H.F Interference

Servo motor driven the feeding device for auto roller pulling with tolerance 0.1mm

Photoelectric positioning and gear puller to apply different feeding

Feeding, welding is optional, automatic cold-cutting function

Dual H.F Limits amperes to automatic protect the machine

Infrared and optical grating

Over current protective circuit to protect oscillation tube and rectifier H.F deviation

Components list of Automatic High Frequency PVC Bag Welding Machine

Component

Origin

Qty

Brand

Electron Tube

Japan

1

Toshiba

Spark Tube

USA

1

5557

Contactor

Japan

1

Fuji

Air cylinder

China Taiwan

4

AirTac

Electronic Valve

China Taiwan

4

AirTac

Fan

China Taiwan

1

Sanjun

Electric Relay

Joint-Venture

8

Omron

Capacitor

China

6

Flying

Transformer

China

2

HWD

Switch

China

2

Bluebird

PLC

China Taiwan

1

Delta

Touch screen

China Taiwan

1

Delta

Servo Motor

Japan

1

Mitsubishi

Concussion Barrel

China

1

Self made

MFR: KEEPLEADER™ have modified and designed Automatic High Frequency PVC Bag Welding Machine for our customers’ unique and special requirements, please contact KEEPLEADER™ for updated details

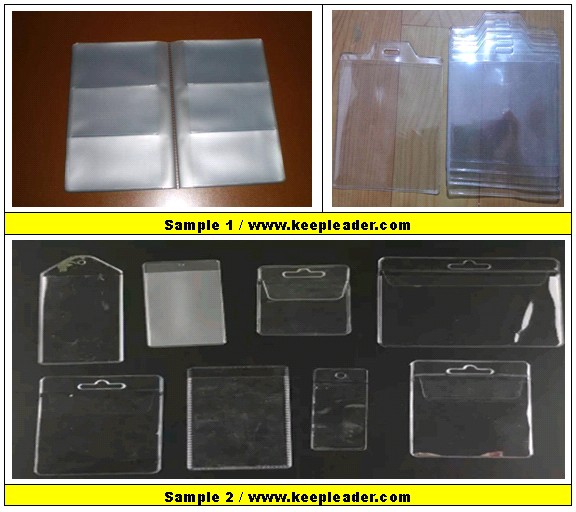

Product Uses


Automatic High Frequency PVC Bag Welding Machine

Automatic High Frequency PVC Bag Welding Machine can made various shaped PVC Bags, the sealing layers will comply with your bags

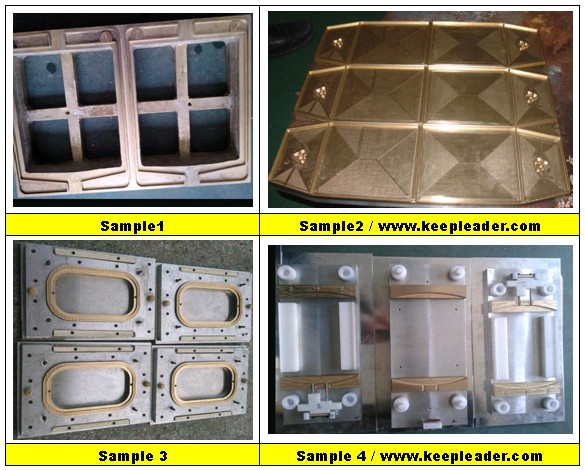

H.F Tooling


Automatic High Frequency PVC Bag Welding Machine

Automatic High Frequency PVC Bag Welding Machine comes with Customized Forming Mold/H.F electrode, we will confirm its design before production

Packaging and shipment


Automatic High Frequency PVC Bag Welding Machine

Automatic High Frequency PVC Bag Welding Machine also can do customized packaging as your demanding
